DQ Heating Delta Vertical Stainless Steel Radiator

DQ Heating Logo
More Sizes And Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : DELTA160/4-B
Product Code : 20797
Shipping: FREE
£514.83
RRP : £790.80
SELECT FINISH Step 1

SELECT Height Step 2

SELECT Width Step 3


qty :

Check Availability 2 Working Days Apprx

About This Product

  • Available in 2 finishes variation
  • Material : Stainless steel
  • Valves shown in the image are not included
  • Wall to pipe centres : 43mm (4.3cm)
  • Wall to front face : 68mm (6.8cm)
  • Maximum operation pressure : 4 Bar
  • Maximum working temperature : 95c
  • 1/2inch flow and return connection
  • Test pressure : 6 Bar
  • Image shown is for illustration purpose only

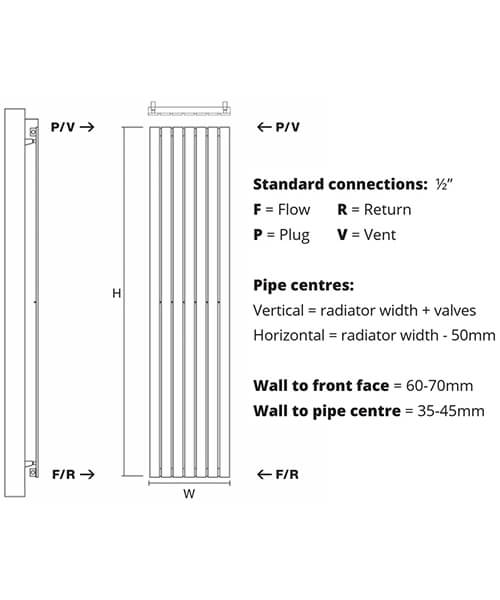

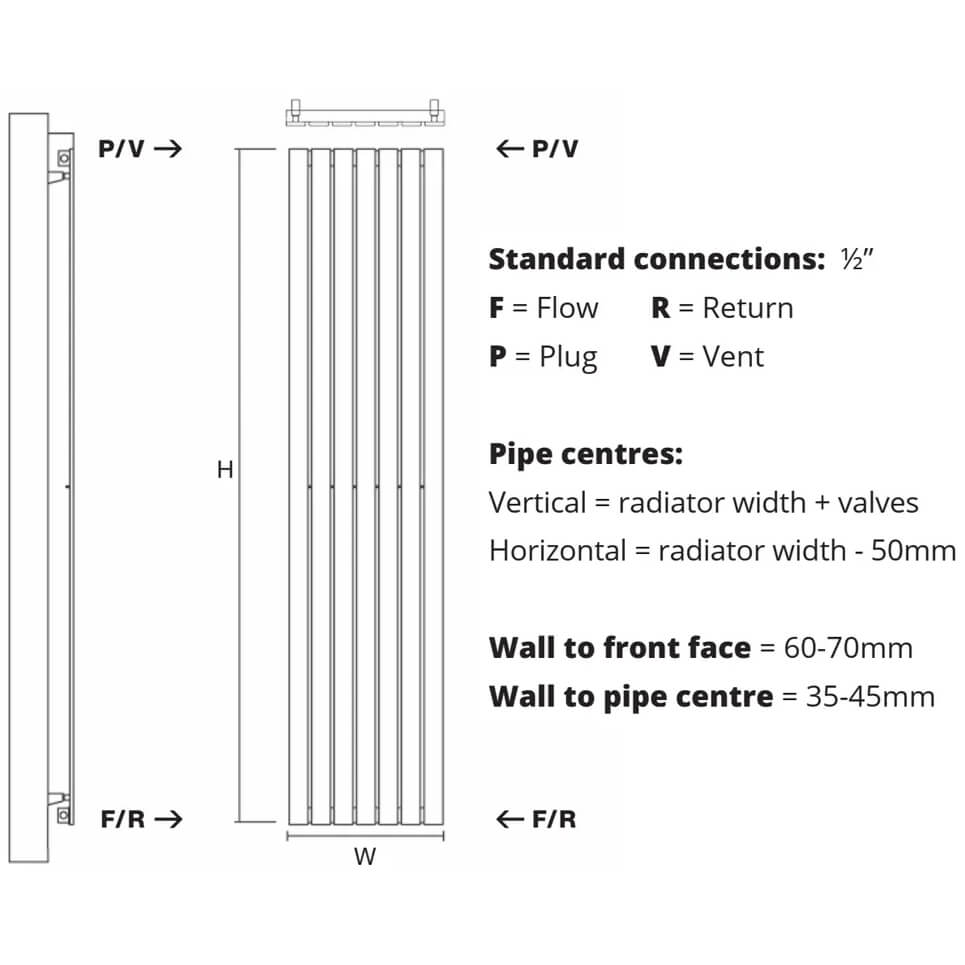

  • Refer technical diagram for complete technical dimensions
  • Guarantee : 25 Years.

PRODUCT VARIATIONS INFO & MFC CODE
  • Details Of Vertical Radiator
    FINISHES MFC CODE WIDTH HEIGHT WATTS BTU WEIGHT WALL TO PIPE WALL TO FACE
    Brushed DELTA-160/4-B 230 1600 631 2155 12 35-45 60-70
    Brushed DELTA-160/7-B 410 1600 929 3173 18 35-45 60-70
    Polished DELTA-160/4-P 230 1600 631 2155 12 35-45 60-70
    Polished DELTA-160/7-P 410 1600 929 3173 18 35-45 60-70
    Brushed DELTA-180/4-B 230 1800 697 2380 13 35-45 60-70
    Brushed DELTA-180/7-B 410 1800 1046 3570 20 35-45 60-70
    Polished DELTA-180/4-P 230 1800 697 2380 13 35-45 60-70
    Polished DELTA-180/7-P 410 1800 1046 3570 20 35-45 60-70
    Brushed DELTA-200/4-B 230 2000 774 2644 15 35-45 60-70
    Brushed DELTA-200/7-B 410 2000 1162 3966 22 35-45 60-70
    Polished DELTA-200/4-P 230 2000 774 2644 15 35-45 60-70
    Polished DELTA-200/7-P 410 2000 1162 3966 22 35-45 60-70
