Hudson Reed Sloane Double Panel Vertical Radiator

Name: Hudson Reed Sloane Double Panel Vertical Radiator
Brand: Hudson Reed
SKU: HLW43
Price: 172.8 GBP
Availability: InStock

More Height And Finish Available

Overall Rating:

2 out of 2 customers rated 70%

Rate This:

MFC Code : HLW43

Product Code : 6731

Delivery: £34.95

£172.80

RRP : £432.00

SELECT Finish Step 1

SELECT Width Step 2

354 [mm]
528 [mm]

SELECT Height Step 3

1500 [mm]
1800 [mm]

qty :

About This Product

Double Panel Radiator
Material: Steel
Installation type: wall mounted
Ultra-modern radiator with squared off edges
Supplied with fixing screws
Pipe center for valves : 444mm
Wall to centre of Tapping: 85mm
Come complete with fixing screws
Type of Heat: Water
No. of Heat setting: 1
Number of Sections/Panels: 12
After installing any new radiators; when refilling the system, suitable inhibitor to be used
All tapping are 1/2" British Standard Pipe
Fully Certified BS EN 442-1:2014
Valves shown in the image are not included

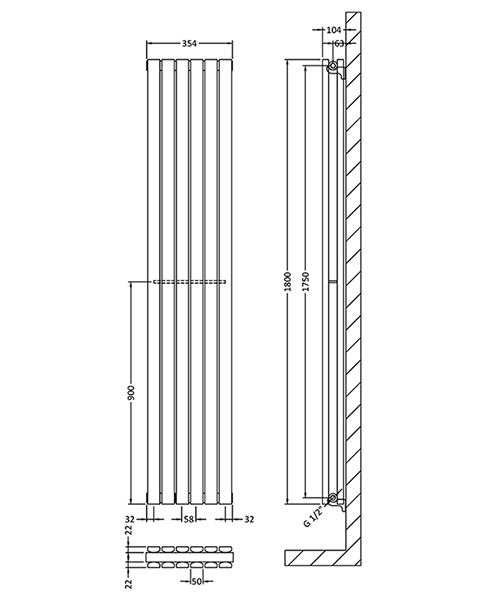

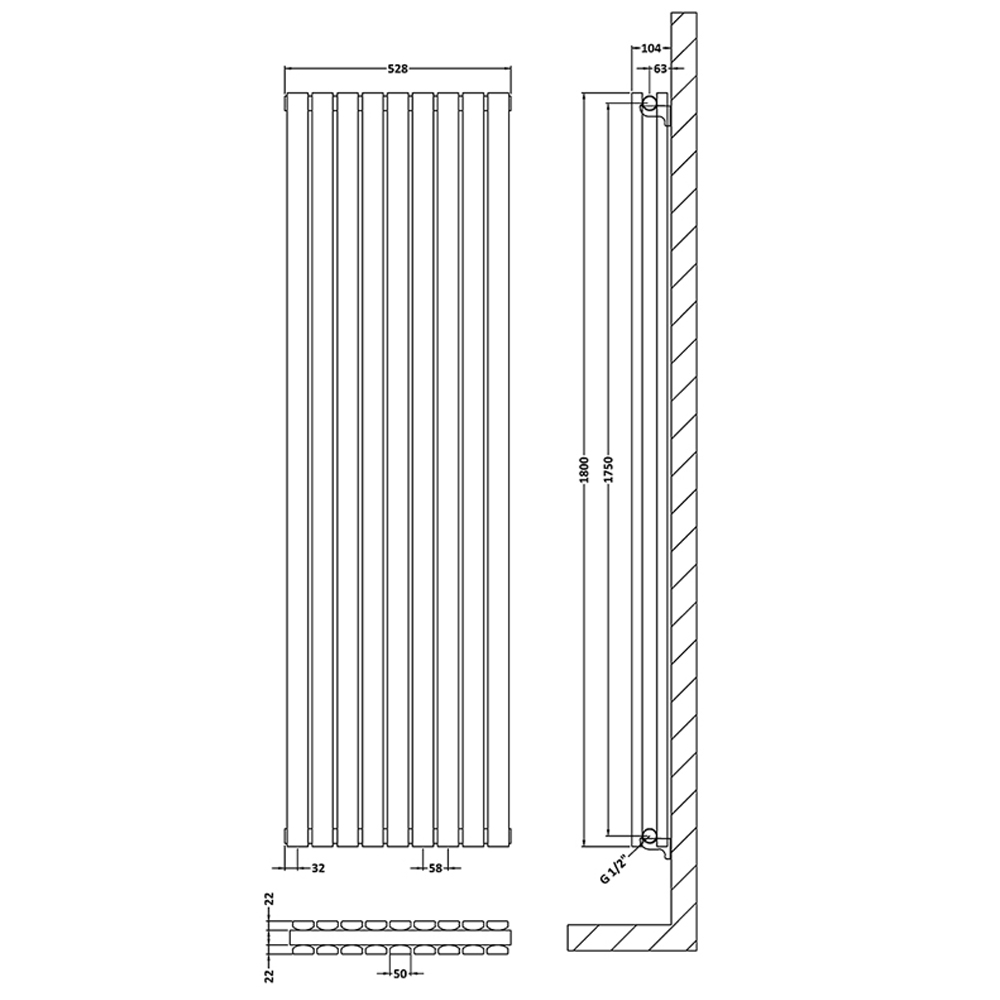

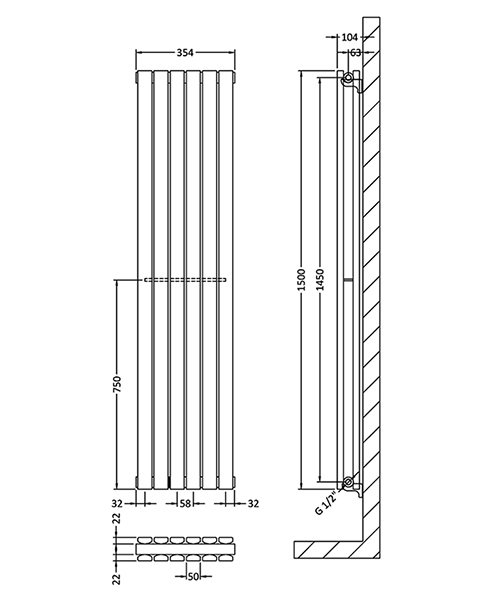

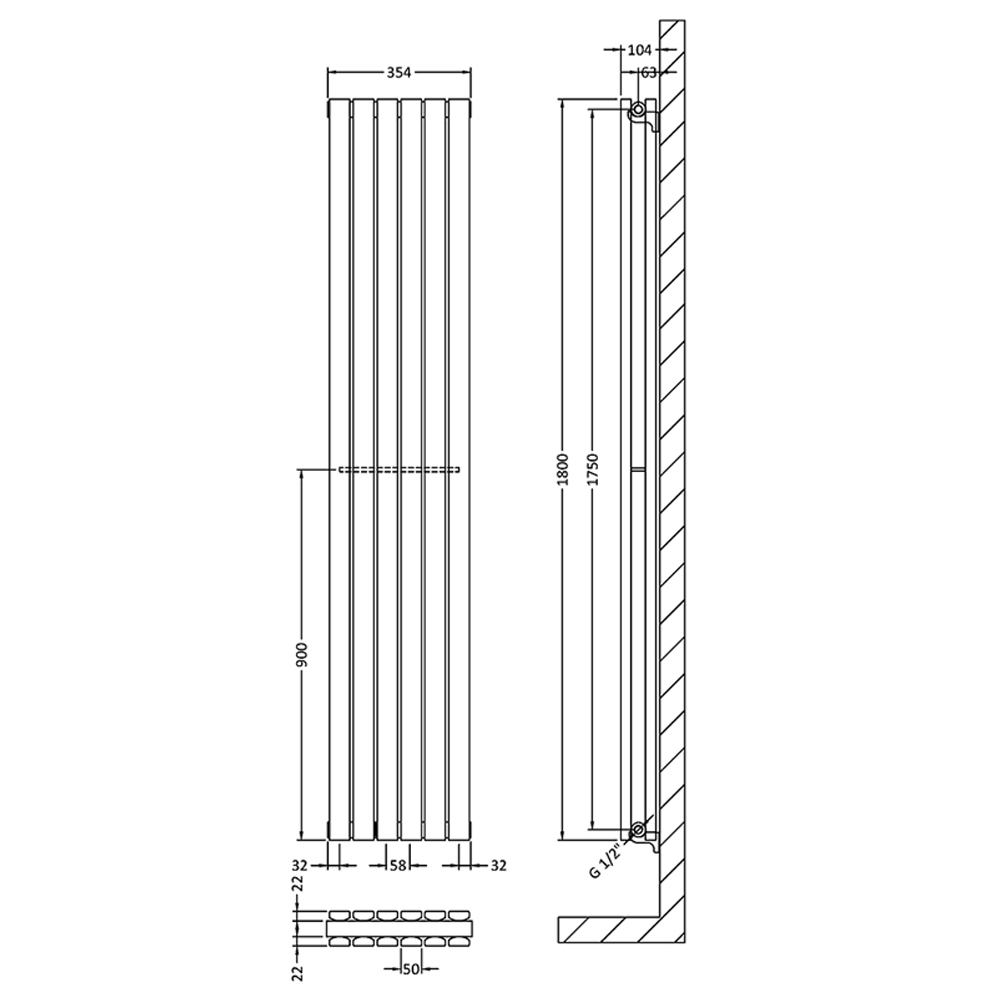

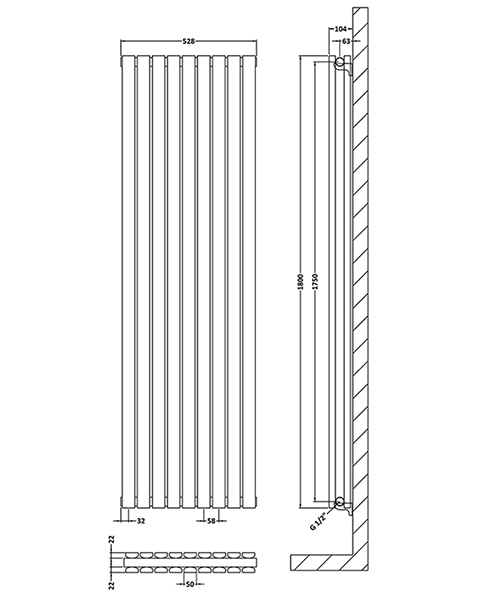

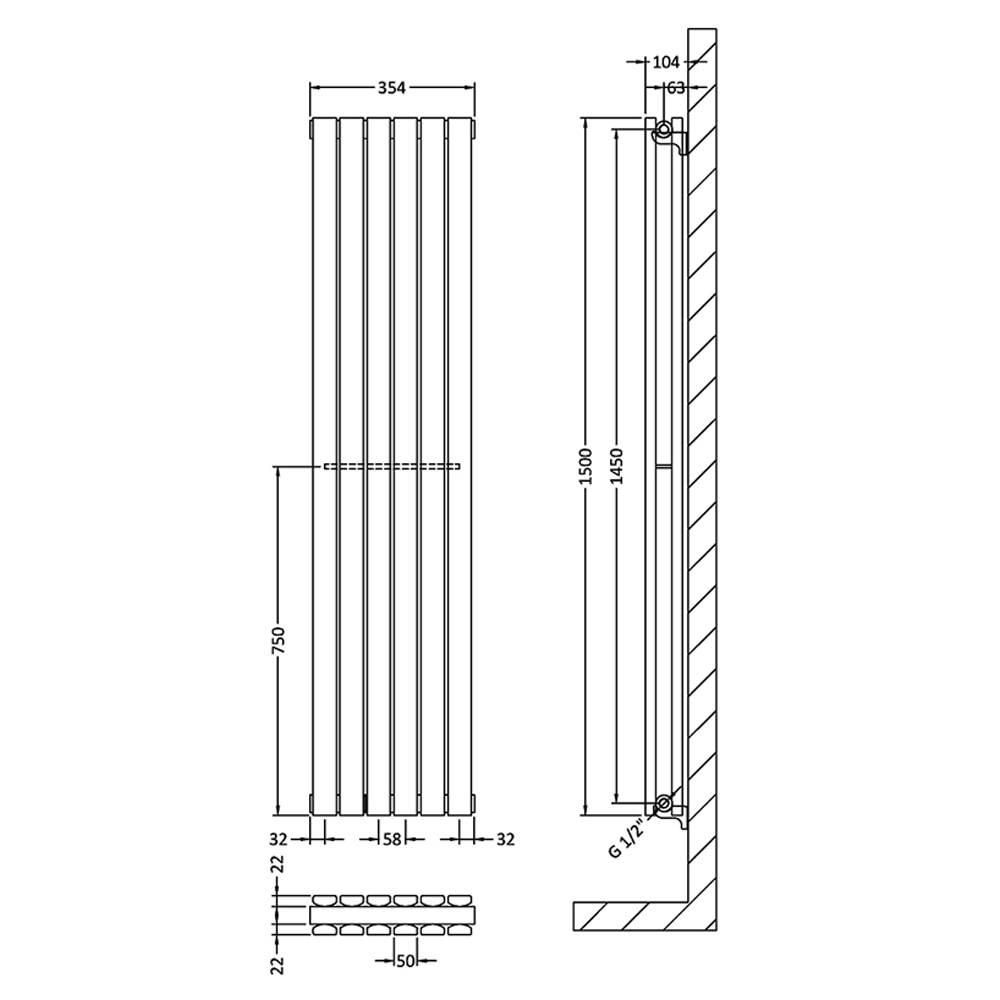

Refer technical drawing for complete dimensions details
Download the PDF from the technical tab for the technical data sheet and fitting instruction
Guarantee: 20 years from the Manufacturer
Available Optional Products:
Different width available 354mm and 528mm
Available in different height 1500mm and 1800mm
Choice of finish available White and Anthracite
Compatible radiator valve
Towel rail and Robe hook

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Information Breakdown

Colour	White
Warranty/Guarantee	20 Years
Width	354
Projection (Depth)	79
Orientation	Vertical
BTU Output	@ 30°C 1608/hr, @ 50°C 3105/hr, @ 60°C 3934/hr
Watts	@ 30°C - 471, @ 50°C - 910, @ 60°C - 1151
Valves Included	Sold Separately
Wall to Centre of Inlet	85
Design	Modern
Panel Configuration	Double
Installation Type	Wall Mounted

Compatible Valves

Technical Info

Hudson Reed Sloane Double Panel Vertical Radiator

Download Technical Data Sheet PDF

Download Fitting Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Detail For Vertical Radiator

WIDTH	HEIGHT	FINISH	RAL NO.	BTU /WATTS @30 DEG.C	BTU /WATTS @50 DEG.C	BTU /WATTS @60 DEG.C	PROJECTION FROM WALL	MFC CODE
354mm	1500mm	Satin White	9016	1608 / 471	3105 / 910	3934 / 1151	110mm	HLW43
354mm	1500mm	Anthracite	9016	1608 / 471	3105 / 910	3934 / 1153	110mm	HLA73
354mm	1800mm	Satin White	9003	1860 / 545	3641 / 1067	4613 / 1355	97mm	HLW44
354mm	1800mm	Anthracite	7016	2075 / 608	3873 / 1135	4907 / 1417	-	HLA74
528mm	1800mm	Satin White	7016	3133 / 912	5810 / 1703	7361 / 2158	110mm	HLW47D
528mm	1800mm	Anthracite	7016	3133 / 912	5810 / 1703	7361 / 2158	110mm	HLA47D
