Hudson Reed Revive 236 x 1800mm Compact Double Panel Vertical Radiator

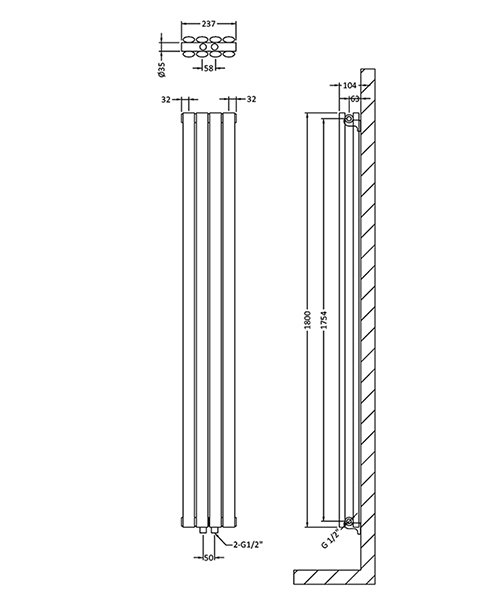

Technical drawing 16198 / HRE007
Additional image of Hudson Reed Revive 236 x 1800mm Compact Double Panel Vertical Radiator
Additional image for 16198 hudsonreed - HRE007
Hudson image

Hudson Reed Revive 236 x 1800mm Compact Double Panel Vertical Radiator

Hudson Reed Logo
Finishes Available: High Gloss White / Anthracite
Overall Rating: Stars Rating 7 out of 7 customers rated 66%
Rate This:
MFC Code : HRE007
Product Code : 16198
Delivery: £34.95
£140.00
RRP : £350.00
Finishes Available

OP-144421 - White

qty :
  • Available in white or anthracite finish [See Option]
  • RAL No.: White: 9016 and Anthracite 7016
  • Double Panel radiator
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review Read Previous Reviews
Check Availability 5-7 Working Days Apprx

Options & Accessories: You May Require

Radiator Accessories
Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.



About This Product

  • Available in white or anthracite finish [See Option]
  • RAL No.: White: 9016 and Anthracite 7016
  • Double Panel radiator
  • Dimensions: Width 236mm (23.6cm) x Depth 78mm (7.8cm) x Height 1800mm (180cm)
  • Maximum projection from wall: 110mm
  • Material: Steel
  • Ideal for place where space is at a premium
  • Installation type: wall mounted
  • Comes with Rounded edges design
  • Supplied with fixing screws
  • Wall to centre of Tapping: 70mm
  • Pipe center : 59mm
  • Type of Heat: Water
  • BTU/Hr:    @30°C - 1232          @50°C - 2461      @60°C - 3118
  • Watts:        @30°C - 361            @50°C - 721        @60°C - 900
  • No. of Heat setting: 1
  • Number of Sections/Panels: 8
  • Orientation: Vertical
  • Radiator brackets included
  • After installing any new radiators; when refilling the system, suitable inhibitor to be used
  • All tapping are 1/2" British Standard Pipe
  • Fully Certified BS EN 442-1:2014
  • Valves shown in the image are not included

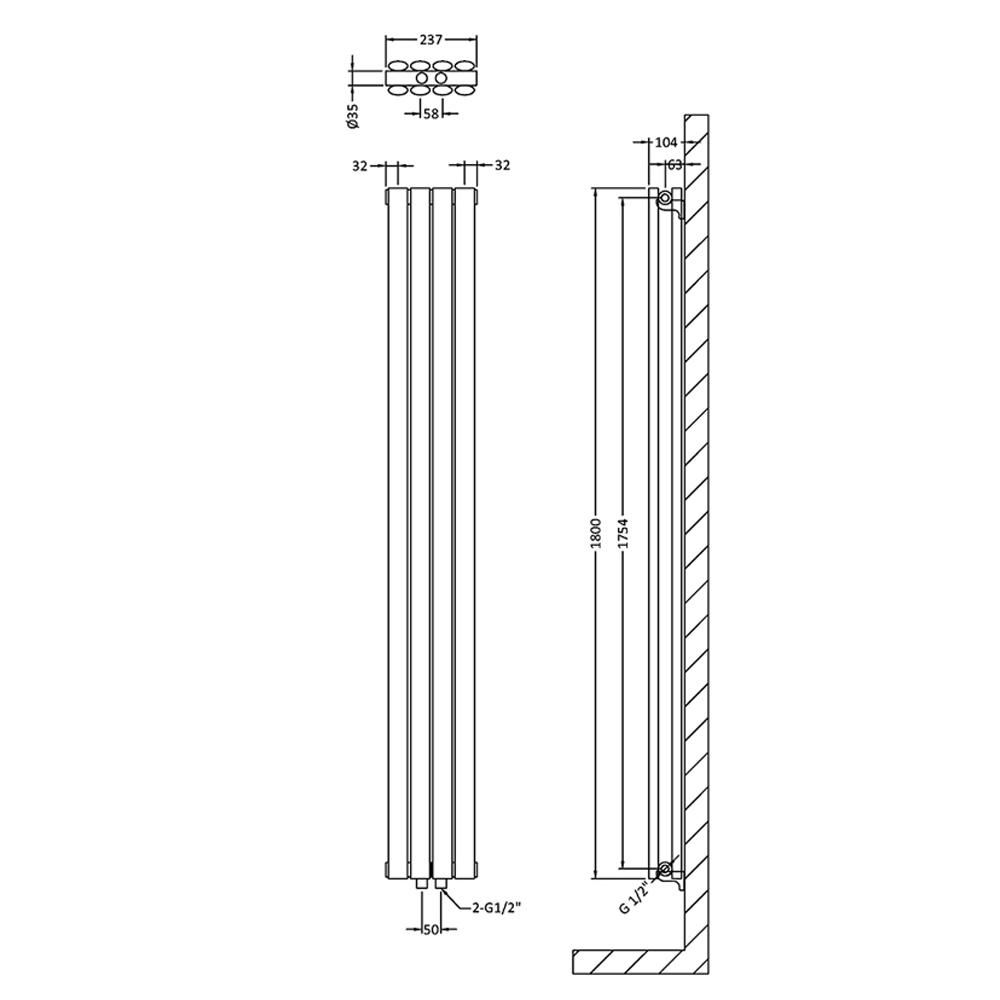

  • Refer technical drawing for complete dimensions details
  • For fitting instruction download PDF from Technical tab
  • Guarantee: 20 years from the Manufacturer.
  • Optional products:
  • Compatible radiator valves
  • Towel rail and Robe hook.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.

Information Breakdown

Colour White
Warranty/Guarantee 20 Years
Width 236
Projection (Depth) 110
Orientation Vertical
BTU Output @30°C - 1232, @50°C - 2461, @60°C - 3118
Watts @30°C - 361, @50°C - 721, @60°C - 900
Valves Included Sold Separately
Wall to Centre of Inlet 70
Design Modern
Panel Configuration Double
Installation Type Wall Mounted
Compatible Valves

Technical Info

Hudson Reed Revive 236 x 1800mm Compact Double Panel Vertical Radiator

Download Installation Instructions PDF

Download Customer Datasheet PDF


PRODUCT VARIATIONS INFO & MFC CODE
Available Finishes Along With Manufacturing Code:
  • White - HRE007
  • Anthracite - HRE009
