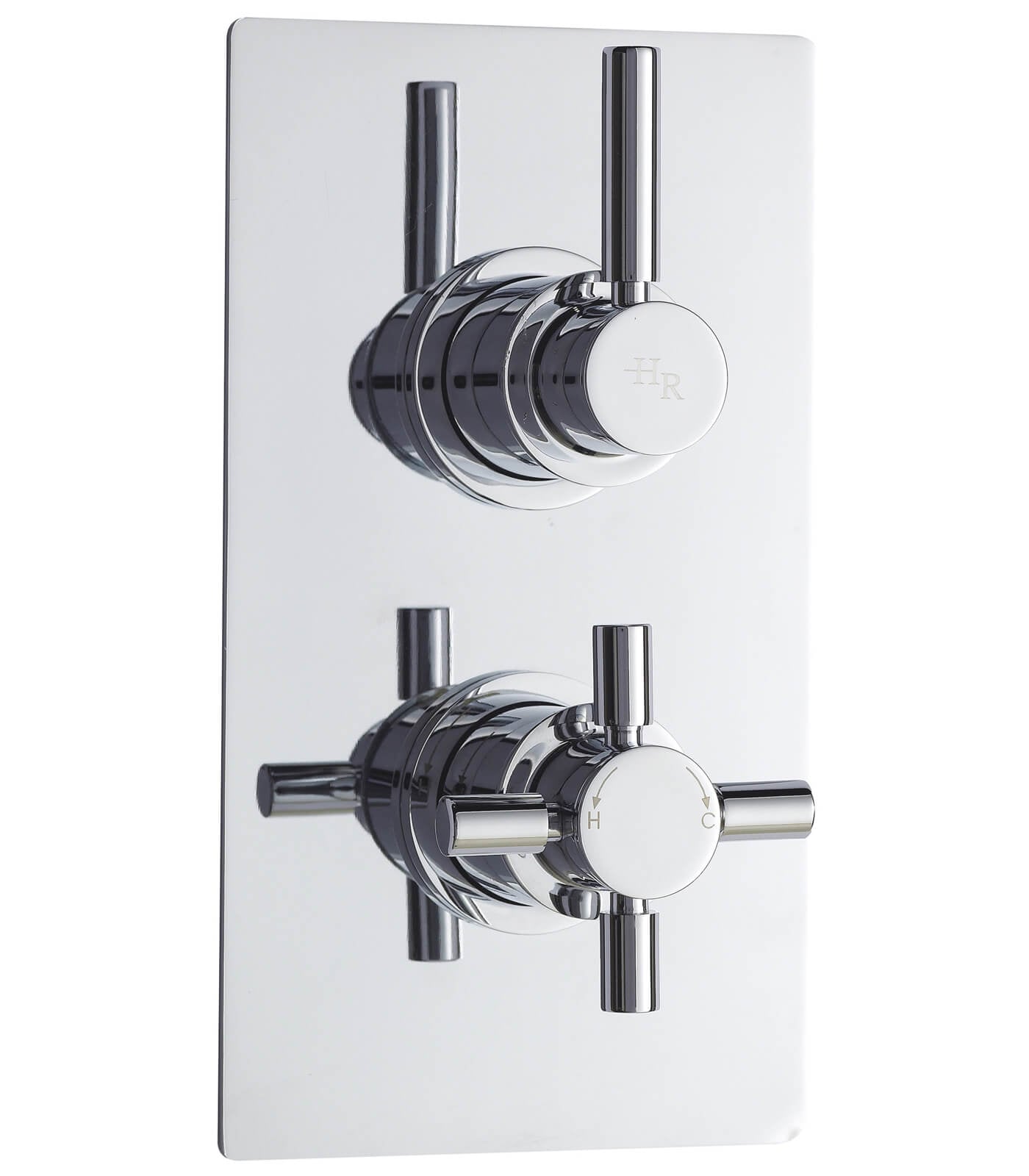

Hudson Reed Tec Pura Twin Concealed Thermostatic Shower Valve

Hudson Reed Logo
More Variations Available
Overall Rating: Stars Rating 2 out of 2 customers rated 90%
Rate This:
MFC Code : A3003V
Product Code : 16090
Delivery: £7.95
£172.46
RRP : £499.00
SELECT FINISH Step 1

SELECT Variation Step 2

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 4 Working Days Apprx

About This Product

  • Choice of different finishes: Chrome, Matt Black and Brushed Brass - [See Option]
  • Available in different variants: Without Diverter Or With Diverter - [See Option]
  • Dimension of back plate: Width 120mm (12cm) x Depth 137mm (13.7cm) x Height 215mm (21.5cm)
  • Material: Brass and ABS
  • Backplate shape: Rectangular
  • Features stain and rust-resistant
  • Handle design: Lever and Cross-head
  • It can be installed vertically or horizontally
  • Mount type: Wall/ Recessed
  • Minimalist sleek design
  • Quarter turn valve operated
  • Valve/Cartridge Type: 1/4 Turn Ceramic Disc
  • Manufactured using the latest technique of thermostat
  • The patented cartridge is highly resistant to calcium buildup - even in hard water areas
  • Valves are thermostatically controlled using a Valquest patented cartridge
  • Accurate flow control with excellent flow rate even at low pressure
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water supply, providing complete thermal protection and preventing scalding
  • The patented cartridge is highly resistant to calcium buildup - even in hard water areas
  • Suitable for use with all plumbing systems: gravity-fed pumped unvented high pressure or fully modulated combi-boilers
  • Accurate flow control with excellent flow rates - even at low-pressure
  • The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing
  • Remove the cartridge, turn 180° and replace
  • Refer to the technical drawing for complete size specifications
  • Download the Data Sheet and Fitting Instruction PDF file from the Technical Info Section
  • Guarantee: Twenty-year from Hudson Reed against manufacturing defects
  • Specification For Without Diverter:
  • Pipe dimension: 15mm (15cm)
  • Weight: 4.14kg
  • No of Outlets: 1
  • WRAS approval no.: 2204707
  • Suitable for low-pressure water system
  • Requires a minimum of 0.1 bar or above water pressure to operate smoothly
  • Specification For With Diverter:
  • Pipe dimension: 15mm (1.5cm) and 22mm (2.2cm)
  • Weight: 4.71kg
  • No of Outlets: 2
  • Suitable for medium-pressure water system
  • Requires a minimum of 05 bar or above water pressure to operate smoothly

Information Breakdown

Colour Chrome
Warranty/Guarantee 20 Yeas
Theme Modern
Handle Style Lever | Crosshead
Min-Max Wall Mount 90
Backplate Width 120
Backplate Height 215
Temperature Control Thermostatic
Number of Handles 2
Number of Outlet 1
Orientation Vertical | Horizontal
Plumbing Option Concealed
Cartridge Included Yes
Cartridge Type 1/4 Turn Ceramic Disc
Minimum Operating Pressure (Bar) 0.1

Technical Info

Hudson Reed Tec Pura Twin Concealed Thermostatic Shower Valve

Download Technical Data Sheet For Without Diverter PDF

Download Technical Data Sheet For With Diverter PDF

Download Fitting Instruction PDF


PRODUCT VARIATIONS INFO & MFC CODE
