About This Product

Available in different width: 287mm, 368mm and 376mm - [See Option]
Choice of different height: 1500mm and 1800mm - [See Option]
Finish: White
Tube Diameter: Ø25mm (2.5cm)
Max projection: 180mm (18cm)
Wall to Centre of Tapping: 75mm (7.5cm)
All tapping are 1/2 inch BSP

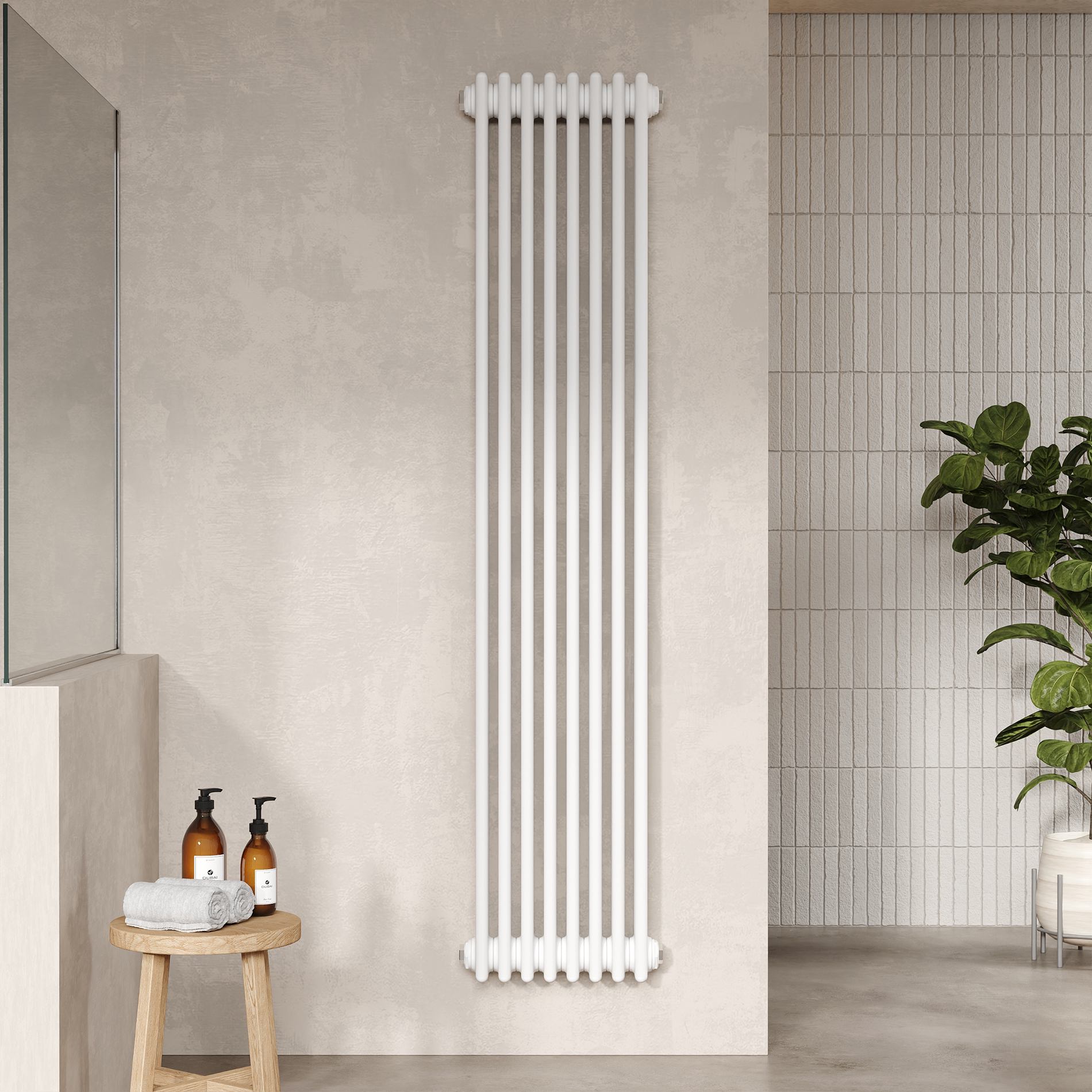

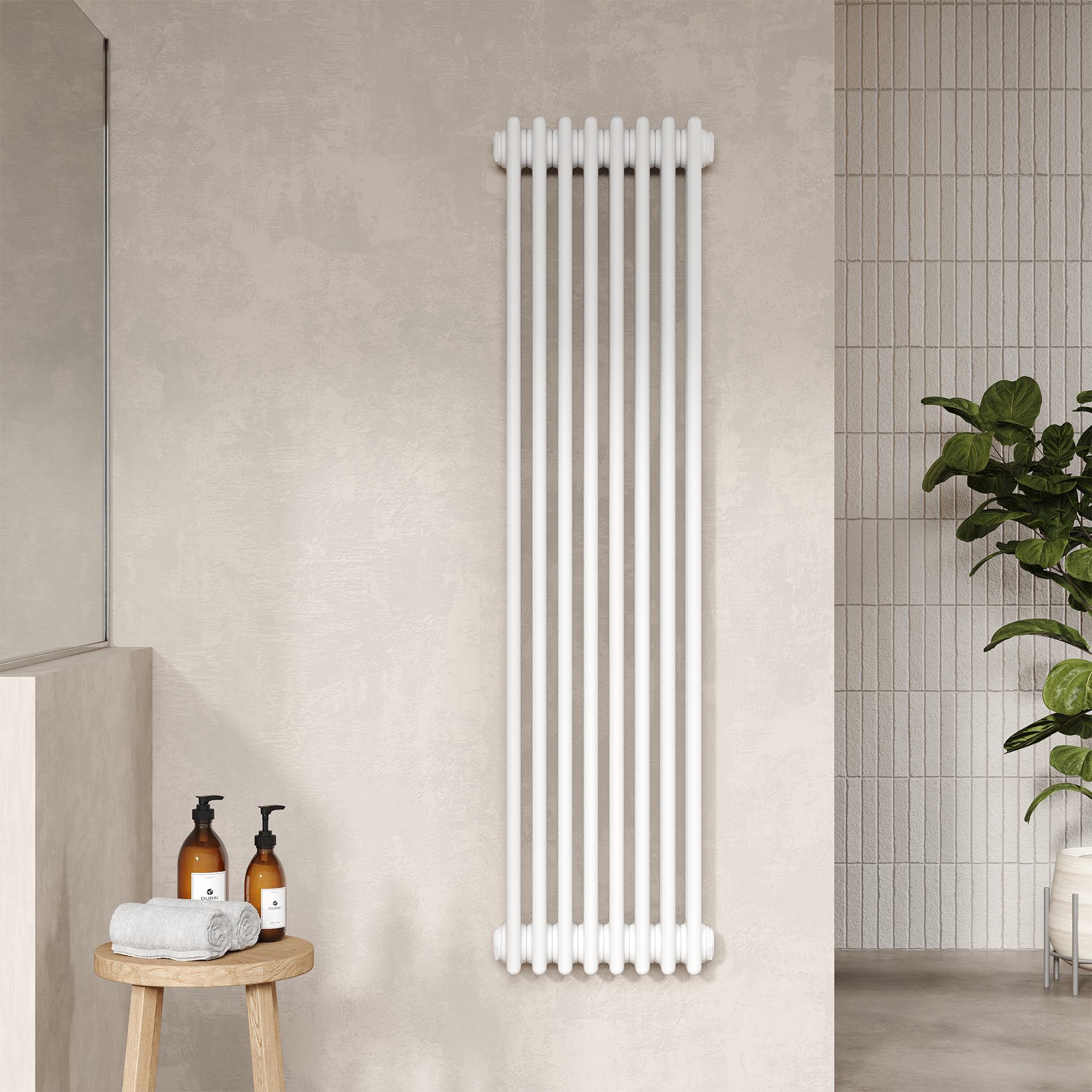

Vertical design
Excellent heat output at Delta t60°c
Supplied complete with fixing screws
Recommended to use suitable inhibitor at the time of refilling new radiator after installation
Dimensions shown are subject to minor deviations
Download Data Sheet and Fitting Instruction PDF File from the Technical Info Section
For complete size details please refer technical drawing
Guarantee: 5 years from Nuie against manufacturing defects.
Available Optional Product:
Compatible valves
Leg set for floor mounted installation
Specifications For 287 x 1500mm:
Dimension: Width 287mm (28.7cm) x Height 1500mm (150cm)
BTU: 30°C - 1468, 50°C - 2897, 60°C - 3670
Watts: 30°C - 430, 50°C - 849, 60°C - 1060
Pipe centre: 381mm (38.1cm)
Specifications For 287 x 1800mm :
Dimension: Width 291mm (29.1cm) x Height 1800mm (180cm)
BTU: 30°C - 1717, 50°C - 3348, 60°C - 4241
Watts: 30°C - 503, 50°C - 981, 60°C - 1249
Pipe centre: 381mm (38.1cm)
Specifications For 368 x 1500mm:
Dimension: Width 368mm (36.8cm) x Height 1500mm (150cm)
BTU: 30°C - 1959, 50°C - 3863, 60°C - 4894
Watts: 30°C - 574, 50°C - 1132, 60°C - 1443
Pipe centre: 471mm (47.1cm)
Specifications For 376 x 1800mm:
Dimension: Width 376mm (37.6cm) x Height 1800mm (180cm)
BTU: 30°C - 2290, 50°C - 4463, 60°C - 5654
Watts: 30°C - 671, 50°C - 1308, 60°C - 1659
Pipe centre: 471mm (47.1cm).

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Information Breakdown

Colour	White
Warranty/Guarantee	5 Years
Material	Steel
Weight In Kg	24
Width	287
Projection (Depth)	180
Height	1500
Fixings included	Yes
Orientation	Vertical
BTU Output	30°C - 1468 \| 50°C 2897 \| 60°C - 3670
Watts	30°C - 430 \| 50°C - 849\| 60°C - 1060
Tapping / Pipe Centres	381
Valves Included	Sold Separately
Wall to Centre of Inlet	75
Tube Diameter	25
Volume In Litres	77
Brackets Included	Yes
Design	Traditional
No. of Columns	3
No. of Sections	18
Installation Type	Wall Mounted

Compatible Valves

Technical Info

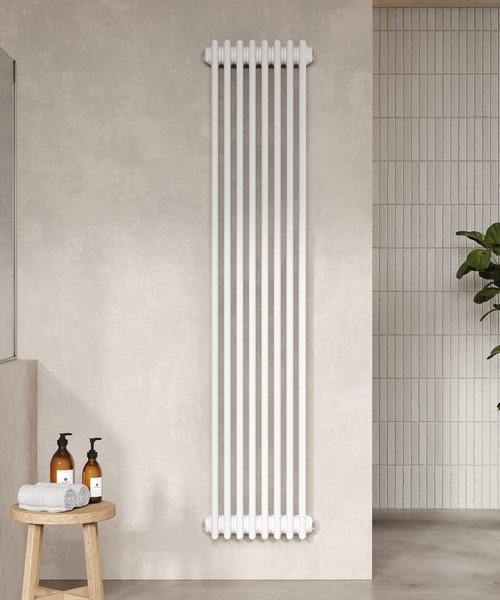

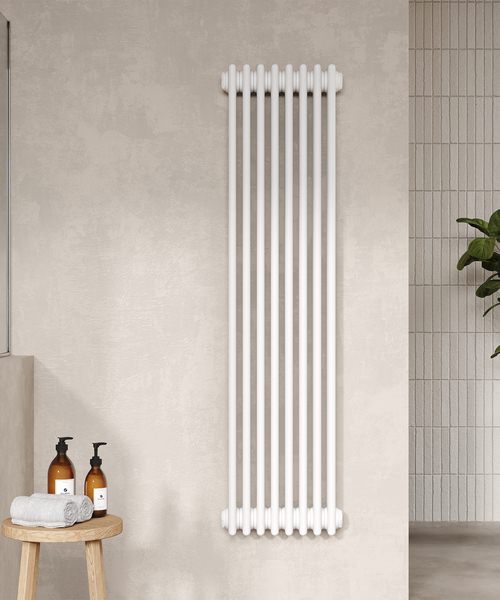

Nuie Colosseum Triple Column Vertical Radiator White

Download Technical Data Sheet For 287 x 1500mm PDF

Download Technical Data Sheet For 287 x 1800mm PDF

Download Technical Data Sheet For 386 x 1500mm PDF

Download Technical Data Sheet For 376 x 1800mm PDF

Download Fitting Instruction PDF

PRODUCT VARIATIONS INFO & MFC CODE

Specifications For Triple Column Vertical Radiator

Width	Height	BTU AT 30 DEG.C	BTU AT 50 DEG.C	BTU AT 60 DEG.C	WATTS AT 30 DEG.C	WATTS AT 50 DEG.C	WATTS AT 60 DEG.C	PIPE CENTRES	MFC Code
287mm	1500mm	1468	2897	3670	430	849	1060	381mm	HX308
287mm	1800mm	1717	3348	4241	503	981	1249	381mm	HX311
-	-	-	-	-	-	-	-	-	-
368mm	1500mm	1959	3863	4894	574	1132	1443	471mm	HX309
-	-	-	-	-	-	-	-	-	-
376mm	1800mm	2290	4463	5654	671	1308	1659	471mm	HX312
