Reina Serena Steel Designer Radiator 300mm Wide

Reina Logo
More Sizes And Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-SRN3080A
Product Code : 9091
Delivery: £34.95
£126.00
RRP : £175.80
SELECT FINISH Step 1

SELECT Height Step 2

SELECT Radiator Type Step 3

SELECT Heating Element Type Step 4

SELECT Essential Accessories Step 5

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

Options & Accessories: You May Require

Chrome Pipe Kit
Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.



About This Product

  • Material: Mild steel
  • EN 442 Compliant product
  • The image shown is for illustration purposes only
  • The valves shown in the image are not included
  • Suitable for central, electric and dual fuel heating systems
  • Supplied with Air vent and End plug
  • Brackets for radiator included
  • Width: 300mm (30cm)
  • Pipe centres: 270mm (27cm)
  • Wall to pipe centres: 65-80mm (6.5-8cm)
  • Distance from wall: 80-95mm (8-9.5cm)
  • For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
  • For Electric models, Optional Liquid Filling is required with the heating element
  • Download the Mounting Instruction PDF File from the Technical Info Section
  • Technical drawing available for more technical details
  • Guarantee: 5 years from Reina against manufacturing defects.
  • Please Note:
  • The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.
  • Available Optional Products:
  • Different heights available 1200mm and 800mm
  • Available in different finishes Anthracite and Chrome
  • Available variants: Central heating, Dual Fuel and Electric
  • Different types of heating elements are available
  • Valves
  • Sleeving kit and chrome pipe kit
  • T-Piece - For Dual Fuel Only
  • Liquid Filling For Electric Only.

Information Breakdown

Colour Anthracite
Warranty/Guarantee 5 Years
Width 300
Projection (Depth) 80-95
Compliance/Approvals/Standard EN 442
Orientation Vertical
BTU Output 70°C - 730
Watts 70°C - 214
Tapping / Pipe Centres 270
Valves Included Sold Separately
Wall to Centre of Inlet 65-80
Brackets Included Yes
Installation Type Wall Mounted
Compatible Valves

Technical Info

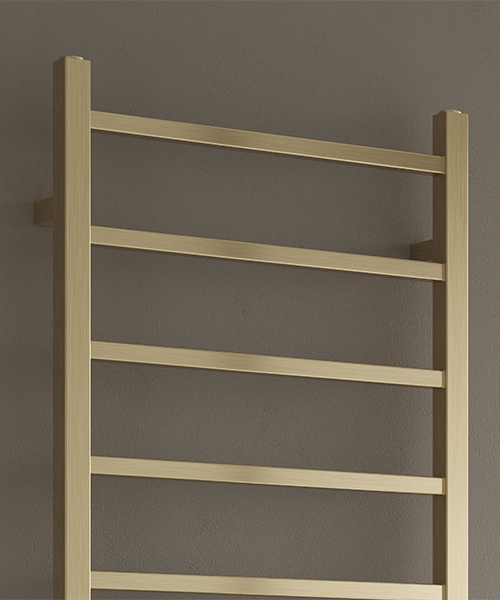

Reina Serena Steel Designer Radiator 300mm Wide

Download Mounting Instruction PDF

Download Heating Element Manual Instructions PDF

Download Details Of Heating Elements PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Details For Anthracite Steel Designer Radiator
    Width 800mm 1200mm
    Finish Anthracite Anthracite
    MFC RND-SRN3080A RND-SRN3120A
    Pipe Centres 270 270
    Wall to Pipe centres 65-80 65-80
    Wall Distance 80-95
    Tube Quantity 7 10
    Fuel Type Central/Electric/Duel Central/Electric/Duel
    Watts - Delta-70 304 457
    BTU - Delta-70 1036 1558
    BTU - Delta-60 849 1277
    BTU - Delta-50 668 1005
    BTU - Delta-45 582 875
    BTU - Delta-40 503 756
    BTU - Delta-35 421 633
    BTU - Delta-30 342 514
    BTU - Delta-25 133 200
  • Details For Chrome Steel Designer Radiator
    Width 800mm 1200mm
    Finish Chrome Chrome
    MFC RND-SRN3080 RND-SRN3120
    Pipe Centres 270 270
    Wall to Pipe centres 65-80 65-80
    Wall Distance 80-95 80-95
    Tube Quantity 7 10
    Total Gap 6 9
    Fuel Type Central/Electric/Duel Central/Electric/Duel
    Watts - Delta-70 214 322
    BTU - Delta-70 730 1097
    BTU - Delta-60 598 899
    BTU - Delta-50 471 708
    BTU - Delta-45 410 616
    BTU - Delta-40 354 533
    BTU - Delta-35 297 446
    BTU - Delta-30 241 362
    BTU - Delta-25 94 141
  • Detail For Heating Elements
    Variant MFC
    Standard Heating Element ELM/S
    On/Off Touch Element ELMOOT
    LST Mini Round Thermostatic Element ELMMRNLST
    Mini Round Thermostatic Element ELMMRN
    Touch Thermostatic Heating Element ELMTCH
    LST Weekly Thermostatic Element ELMWKYLST
    Weekly Thermostatic Element ELMWKY
  • Details For Accessories
    Type MFC
    T-Piece - For Dual Fuel Only ACCS/TP
    Liquid Filling For Electric Only A/FILLING1
