Reina Florina Steel Designer Radiator 500mm Wide

Reina Logo
More Sizes And Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-FR508A
Product Code : 9080
Shipping: FREE
£150.08
RRP : £240.00
SELECT Height Step 1

SELECT FINISH Step 2

SELECT Radiator Type Step 3

SELECT Heating Element Step 4

SELECT Essential Accessories Step 5

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 4 Working Days Apprx

About This Product

  • Available in 3 sizes and 2 finishes
  • Valves shown in the image are not included
  • Material: Steel
  • Installation: Wall Mounted
  • Supplied with Air vent and End plug
  • EN 442 compliant product
  • Brackets for radiator included
  • Width: 500mm (50cm)
  • Pipe centres: 100mm (10cm)
  • Wall to pipe centres: 70-85mm (7-8.5cm)
  • Distance from wall: 105-120mm (10.5-12cm)
  • For BTU and Watts, Please refer to the Product Variations Info and MFC Code section
  • Download the installation instruction and heating element PDF files from the Technical Info section

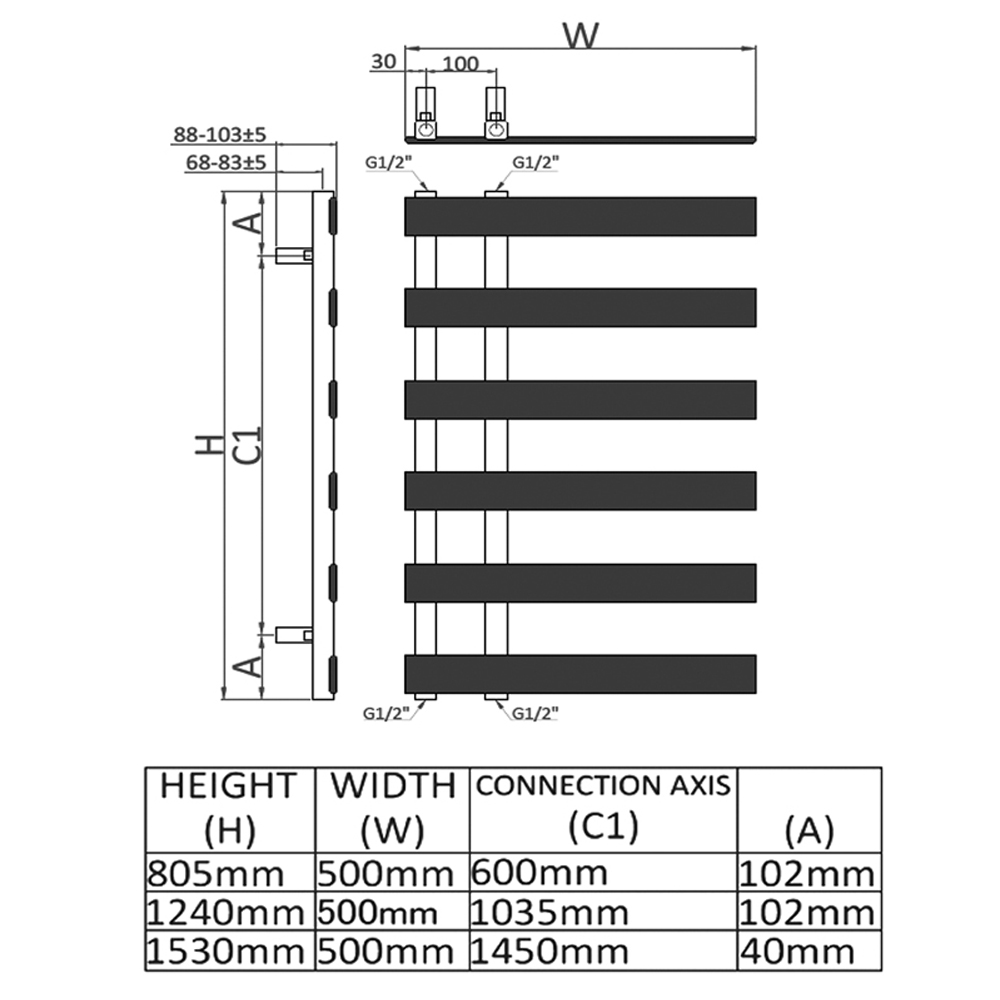

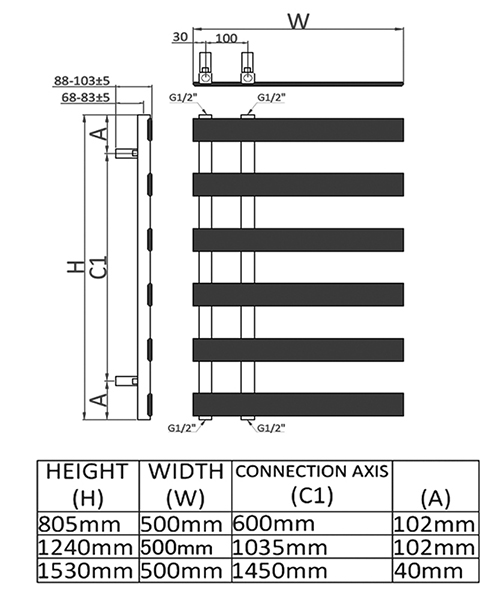

  • Refer technical diagram for complete technical dimensions
  • Guarantee: 5 years from Reina against manufacturing defect.
  • Available Optional Products:
  • Valves
  • Chrome pipe kit
  • Central Heating System, Dual Fuel, Electric
  • Heating Element
  • T-Piece - For Dual Fuel Only
  • Liquid Filling For Electric Only.

Information Breakdown

Colour Anthracite, Chrome
Warranty/Guarantee 5 Years
Width 500
Orientation Vertical
BTU Output 1526, 2315, 3016, 1755, 2662, 3468
Watts 448, 679, 884, 515, 781, 1017
Valves Included Sold Separately
Wall to Centre of Inlet 70-85
Design Modern
Installation Type Wall Mounted
Compatible Valves

Technical Info

Reina Florina Steel Designer Radiator 500mm Wide

Download Installation Instruction PDF

Download Heating Element Manual Instructions PDF

Download Details Of Heating Elements PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Specification Of Anthracite Designer Radiator
    Height 800mm 1235mm 1525mm
    Pipe Centres 100mm 100mm 100mm
    Wall To Pipe Centre 68-83mm 68-83mm 68-83mm
    Wall Distance 88-103mm 88-103mm 88-103mm
    Tube Quantity 6 9 11
    Total Gap 5 8 10
    Watts - Delta-70 640 970 1465
    BTU - Delta-70 2182 3308 4994
    BTU - Delta-60 1789 2711 4093
    BTU - Delta-50 1408 2134 3222
    BTU - Delta-45 1226 1858 2806
    BTU - Delta-40 1059 1606 2424
    BTU - Delta-35 887 1345 2030
    BTU - Delta-30 720 1092 1648
    BTU - Delta-25 280 425 642
    MFC RND-FR508A RND-FR512A RND-FR515A
  • Specification Of Chrome Designer Radiator
    Height 800mm 1235mm 1525mm
    Pipe Centres 100mm 100mm 100mm
    Wall To Pipe Centre 68-83mm 68-83mm 68-83mm
    Wall Distance 88-103mm 88-103mm 88-103mm
    Tube Quantity 6 9 11
    Total Gap 5 8 10
    Watts - Delta-70 448 679 884
    BTU - Delta-70 1526 2315 3016
    BTU - Delta-60 1251 1898 2472
    BTU - Delta-50 985 1494 1946
    BTU - Delta-45 857 1301 1694
    BTU - Delta-40 741 1124 1464
    BTU - Delta-35 620 941 1226
    BTU - Delta-30 504 764 995
    BTU - Delta-25 196 298 388
    MFC RND-FR508 RND-FR512 RND-FR515
  • Details Of Elements And Accessories
    Variants MFC
    Standard Element ELM/S
    On/Off Touch Element ELMOOT
    LST Mini Round Thermostatic Element ELMMRNLST
    Mini Round Thermostatic Element ELMMRN
    Touch Thermostatic Element ELMTCH
    LST Weekly Thermostatic Element ELMWKYLST
    Weekly Thermostatic Element ELMWKY
    T-Piece Connector ACCS/TP
    Liquid Filling - For Electric Only A/FILLING1
