Name: Nuie Lucie 1900mm High Single Sliding Shower Door
Brand: Nuie
SKU: AQSL12N-E8
Price: 222 GBP
Availability: InStock

Pearlstone Shower Trays

Sleek, strong, easy to fit Peralstone shower tray to choose from the option given below. Please note image is for illustration purpose only.

Legset and Plinth

For Raised installation of square and rectangular shower tray, Plinth from Nuie are manufactured to highest standard material. Please Note Image shown is for illustration purpose only.

None
OP-212027 - Leg Set And Plinth For 700-900mm Trays - Gloss White + £51.53
OP-212029 - Leg Set And Plinth For 1000mm Trays + £54.67
OP-212031 - Leg Set And Plinth For 1100-1200mm Trays + £54.67
OP-212033 - Leg Set And Plinth For 1300-1800mm Trays + £62.83

Optional Extras

Optional extra for use with wetroom screens and is designed to ensure safe installation and secures the wetroom screen in place.

None
OP-73619 - 20 x 49 x 1900mm Polished Chrome Profile Extension Kit + £39.29 [ View Image ]
OP-221466 - 20 x 49 x 1900mm Polished Chrome Profile Extension Kit + £99.20 [ View Image ]

About This Product

Constructed using 8mm (0.8cm) toughened safety glass
Quick-release wheels for easy cleaning
Reversible design [can be used with a left or right-handed bath]
Patented Easyfit profile assembly system
Profile Material: Aluminium
Height: 1900mm
Wheel type: Dual, Quick Release
Supplied with a square T shape metal handle
Suitable for use with side panels or within a recess
Easy to clean and fit
Enclosure Design: Framed
Waste, Tray, Side panel and brassware shown in the image are not included
Download the PDF from the technical Info Section for the technical data sheet
Technical drawing available for more technical details
Guarantee: Lifetime from the Nuie against manufacturing faults
Technical Specification For 1200mm
Adjustment: 1145-1190 (114.5cm - 119cm)
Opening: 480mm (48cm)
Technical Specification For 1400mm
Adjustment: 1345-1390mm (134.5cm - 139cm)

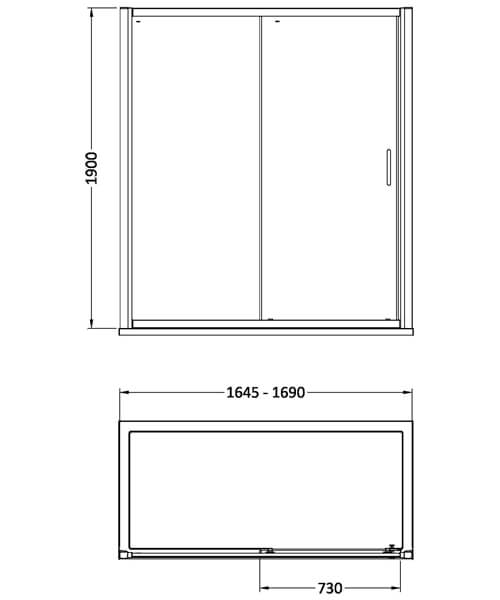

Technical Specification For 1700mm
Adjustment: 1645-1690mm (164.5cm - 169cm)
Opening: 730mm (73cm)
Available Optional Product:
Available in different finishes Polished chrome, brushed brass and matt black
Different widths available 1200mm, 1400mm, 1700mm
Side Panel, Tray, Easy Plumb Kit
Shower tray waste

Information Breakdown

Warranty/Guarantee	Lifetime
Material	Aluminium
Width	1200
Height	1900
Door Type	Sliding
Frame Design	Framed
Frame / Profile Finish	Polished chrome
Frame Material	Aluminium
Glass Type	Toughened safety glass
Glass Thickness	8
Number Of Doors	1
Side Panel Included	Sold Separately
Door Adjustment	1145-1190
Entry Width	480
Closing / Opening Mechanism	Quick Release Rollers
Tray Included	Sold Separately
Tray Compatible	Yes
Easy to Clean Glass	Yes
Installation Type	Alcove \| Corner

Compatible Tray Waste

Technical Info

Nuie Lucie 1900mm High Single Sliding Shower Door

Download Technical Data Sheet PDF

PRODUCT VARIATIONS INFO & MFC CODE

Detail Of Sliding Shower Door

Finish	Width	Adjustment: Min-Max	Opening Entry	MFC
Polished Chrome	1200mm	1145mm - 1190mm	480mm	AQSL12N-E8
Polished Chrome	1400mm	1345mm - 1390mm	-	AQSL14N-E8
Polished Chrome	1700mm	1645mm - 1690mm	730mm	AQSL17N-E8
-	-	-	-	-
Matt Black	1200mm	1145mm - 1190mm	480mm	AQSL12NBP-E8
Matt Black	1400mm	1345mm - 1390mm	-	AQSL14NBP-E8
Matt Black	1700mm	1645mm - 1690mm	730mm	AQSL17NBP-E8
-	-	-	-	-
Brushed Brass	1200mm	1145mm - 1190mm	480mm	AQSL12NBB-E8
Brushed Brass	1400mm	1345mm - 1390mm	-	AQSL14NBB-E8
Brushed Brass	1700mm	1645mm - 1690mm	730mm	AQSL17NBB-E8

Detail Of Side Panel

Finish	Width	MFC
Polished Chrome	800mm	AQFSP80N-E8
Polished Chrome	900mm	AQFSP90N-E8
Polished Chrome	1000mm	AQFSP10N-E8
-	-	-
Matt Black	800mm	AQFSP80NBP-E8
Matt Black	900mm	AQFSP90NBP-E8
Matt Black	1000mm	AQFSP10NBP-E8
-	-	-
Brushed Brass	800mm	AQFSP80NBB-E8
Brushed Brass	900mm	AQFSP90NBB-E8
Brushed Brass	1000mm	AQFSP10NBB-E8
