Nuie Rene 1900mm High 6mm Glass Pivot Shower Door

Nuie Logo
More Finishes And Sizes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : SMPD76-E6
Product Code : 72853
Delivery: £34.95
£145.20
RRP : £363.00
SELECT Finish Step 1

SELECT Width Step 2

SELECT Side Panel Step 3

SELECT Profile Extension Kit Step 4


qty :

Check Availability 5 Working Days Apprx

About This Product

  • Made using 6mm toughened safety glass
  • Reversible design outward opening hinged door
  • Height: 1900mm (190cm)
  • Profile material: Aluminium
  • Provided with a square t-bar handle
  • EasyFit System: Quick and easy assembly
  • Handle material: ABS
  • Fixings included
  • Enclosure Design: Framed
  • The side panel and tray shown in the image are not included
  • Download the Data Sheet and Fitting Instruction PDF file from the Technical Info Section

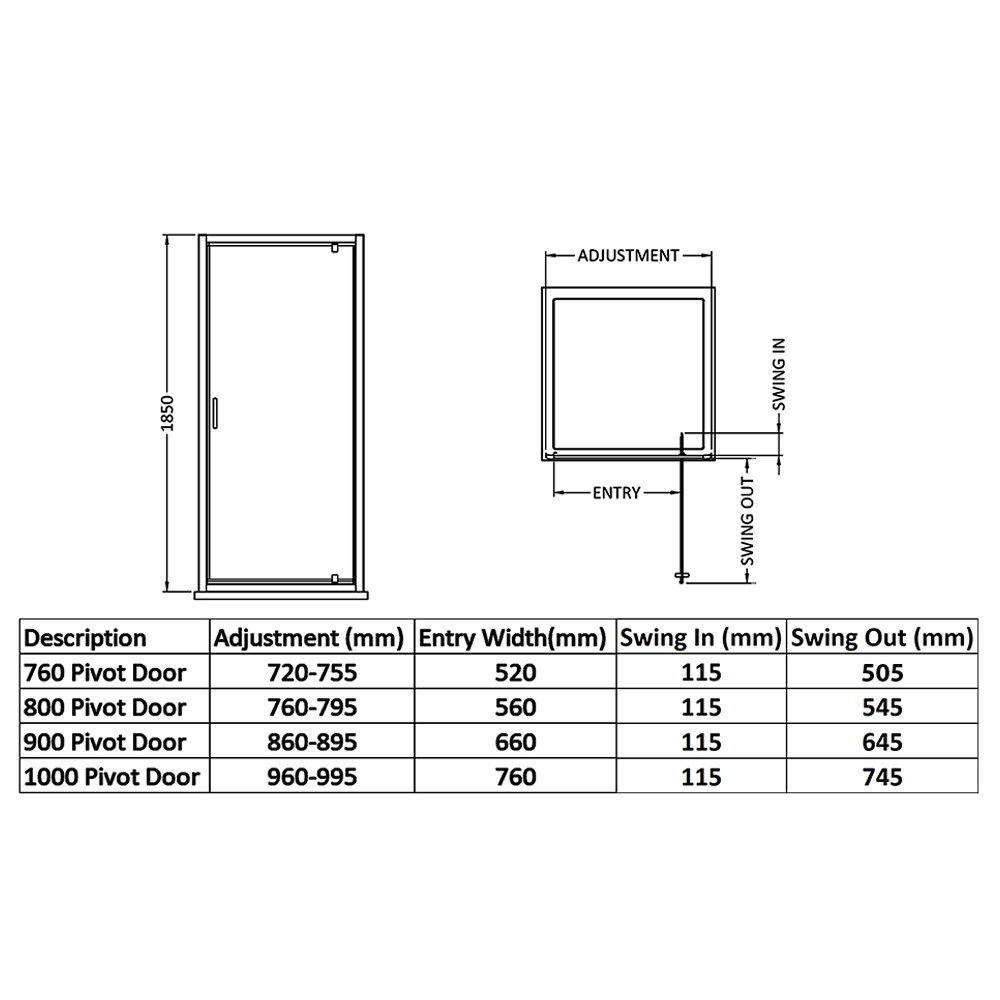

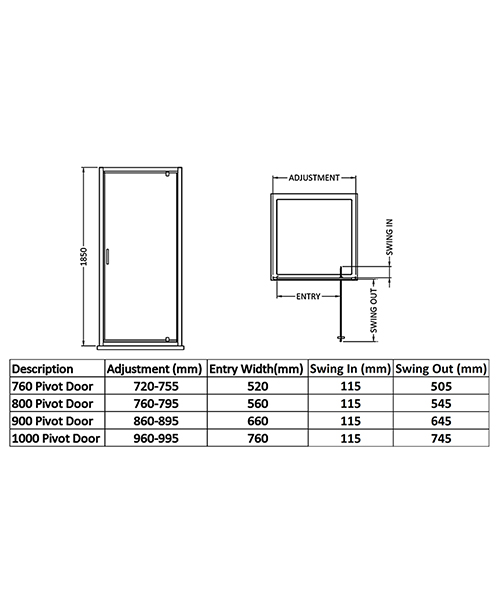

  • Refer to the technical drawing for complete size specifications
  • Guarantee: Lifetime from the Nuie against manufacturing faults
  • Available Optional Product:
  • Choice of profile finish: Polished Chrome, Matt Black and Brushed Brass
  • Available in different widths: 760mm, 800mm, 900mm and 1000mm
  • Side panels
  • Profile extension kit

Information Breakdown

Warranty/Guarantee Lifetime
Material Aluminium
Width 760
Height 1900
Depth 4
Configuration Door Only
Door Type Pivot
Frame Design Framed
Frame / Profile Finish Polished Chrome
Frame Material Aluminium
Glass Type Toughened safety glass
Glass Thickness 6
Number Of Doors 1
Side Panel Included Sold Separately
Door Adjustment 720-755
Entry Width 520
Tray Included Sold Separately
Tray Compatible Yes
Installation Type Recess | Corner

Technical Info


PRODUCT VARIATIONS INFO & MFC CODE
  • Specification For Pivot Shower Door
    Width Profile Finish Adjustments MFC
    760mm Chrome 720mm-755mm SMPD76-E6
    760mm Black 720mm-755mm SMPD76BP-E6
    760mm Brushed Brass 720mm-755mm SMPD76BB-E6
    800mm Chrome 760mm-795mm SMPD80-E6
    800mm Black 760mm-795mm SMPD80BP-E6
    800mm Brushed Brass 760mm-795mm SMPD80BB-E6
    900mm Chrome 860mm-895mm SMPD90-E6
    900mm Black 860mm-895mm SMPD90BP-E6
    900mm Brushed Brass 860mm-895mm SMPD90BB-E6
    1000mm Chrome 960mm-995mm SMPD10-E6
