Name: Reina Ottone 500mm Wide Brushed Brass Steel Towel Warmer
Brand: Reina
SKU: RND-OTO080050B
Price: 260 GBP
Availability: InStock

About This Product

Straight towel rail
Width: 500mm (50cm)
Pipe centres: 455mm (45.5cm)
Wall to pipe centres: 59mm-69mm (5.9cm-6.9cm)
Wall distance: 74mm-84mm (7.4cm-8.4cm)
Constructed using steel material
Brackets, Air vent and End plug are included
EN 442 compliant product
Valves and Towel hook shown in the image are not included
For Central Heating And Dual fuel, Radiator valves are highly recommended
Refer to Compatible Valves available in the product
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
For Electric models, Optional Liquid Filling is required with the heating element
For BTU, Watts and other details, please refer to the chart in the PRODUCT VARIATIONS INFO and MFC CODE Tab
Download the Mounting instruction PDF File from the Additional Info Section

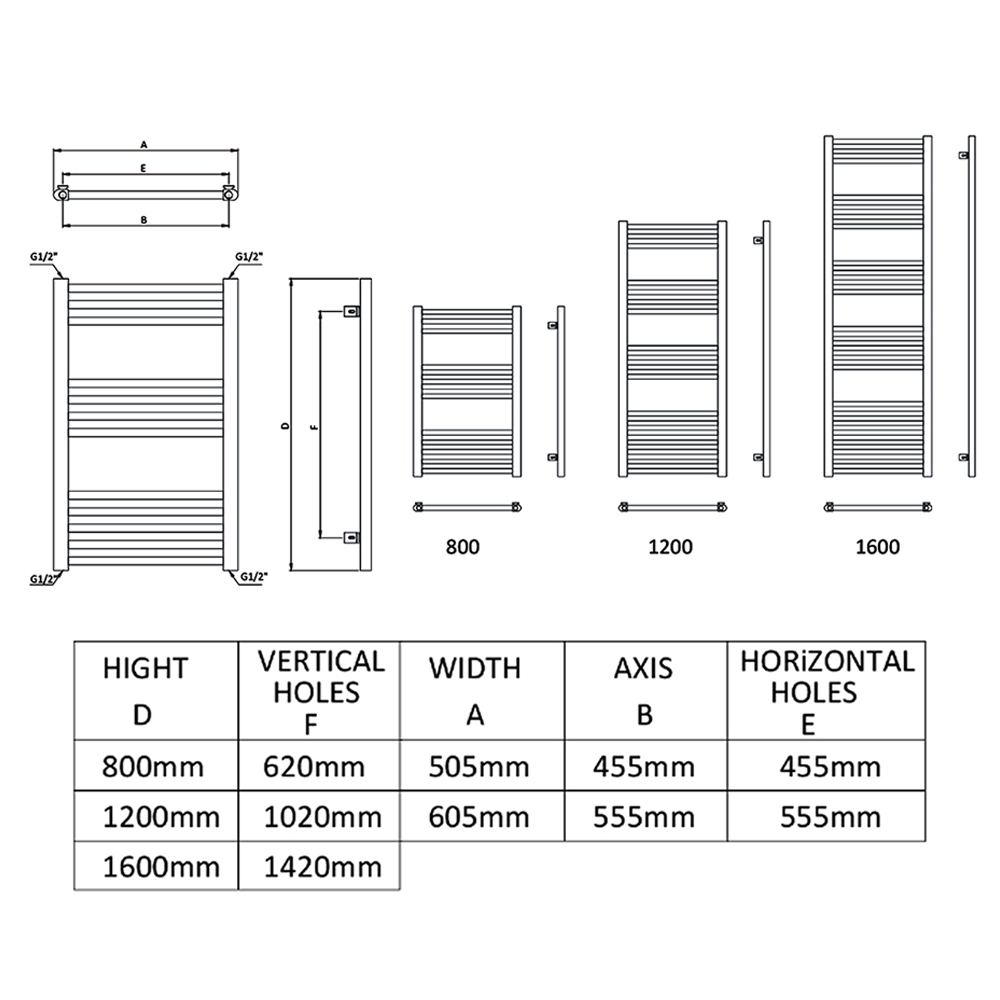

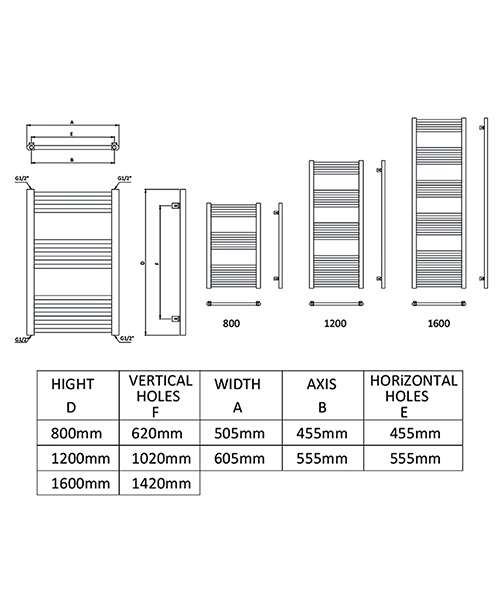

Refer to the technical drawing for complete size details
Guarantee: Five-year from Reina against manufacturing defects
Available Optional Products:
Heights: 800mm, 1000mm, 1200mm, 1600mm and 1800mm
Variants: Central heating, Dual Fuel and Electric
Heating element type: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly and Weekly
Valves, Sleeving kit and chrome pipe kit
Please Note: The appropriate wattage of the element (if selected) will be decided by the manufacturer once the order is placed

Information Breakdown

Colour	Brushe Brass
Country of Origin	Turkey
Warranty/Guarantee	5 Years
Theme	Modern
Material	Steel
Width	500
Height	800 \| 1200 \| 1600
Compliance/Approvals/Standard	EN 442
Orientation	Vertical
BTU Output	70°C: 800-1081 \| 1200-1548 \| 1600-2044
Watts	800: 317 \| 1200: 453 \| 1600: 599
No. Of Bars	800: 12 \| 1200: 18 \| 1600: 24
Tapping / Pipe Centres	455
Valves Included	Sold Separately
Fuel Type	Central Heating \| Dual Fuel \| Electric
Wall to Centre of Inlet	59-69
Heating Element Included	Sold Separately
Element Type	Standard \| Thermostatic \| Digital
Brackets Included	Yes
Installation Type	Wall-Mounted

Compatible Valve

Technical Info

Reina Ottone 500mm Wide Brushed Brass Steel Towel Warmer

Download Mounting Instruction PDF

PRODUCT VARIATIONS INFO & MFC CODE

Specification Of Towel Rail

Height:	800mm	1200mm	1600mm
Pipe Centres:	455mm	455mm	455mm
Wall To Pipe Centres:	59-69mm	59-69mm	59-69mm
Wall Distance:	74-84mm	74-84mm	74-84mm
Tube Quantity:	12	18	24
Total Gap:	2	3	4
Watts:	317	453	599
BTU @ 70 Degree:	1081	1548	2044
BTU @ 60 Degree:	886	1269	1675
BTU @ 50 Degree:	697	999	1319
BTU @ 45 Degree:	607	870	1148
BTU @ 40 Degree:	525	751	992
BTU @ 35 Degree:	439	629	831
BTU @ 30 Degree:	357	511	675
BTU @ 25 Degree:	139	199	263

Available Variants Along With Manufacturing Code

Variants	MFC
500 X 800mm Brushed Brass	RND-OTO080050B
500 X 1200mm Brushed Brass	RND-OTO120050B
500 X 1600mm Brushed Brass	RND-OTO160050B
Standard Element	ELM/S
On/Off Touch Element	ELMOOT
LST Mini Round Thermostatic Element	ELMMRNLST
Mini Round Thermostatic Element	ELMMRN
Touch Thermostatic Element	ELMTCH
LST Weekly Thermostatic Element	ELMWKYLST
Weekly Thermostatic Element	ELMWKY
T-Piece - For Dual Fuel Only	ACCS/TP
Liquid Filling For Electric Only	A/FILLING1
