Name: Bristan Naxos Deck Mounted Chrome Bath Filler Tap
Brand: Bristan
SKU: NAX BF C
Price: 70.68 GBP
Availability: InStock

Manufacturing code of this product: NAX BF C
Size In [mm]: 230mm x 148mm x 132mm [Width x Depth x Height]
Size In [cm]: 23cm x 14.8cm x 13.2cm [Width x Depth x Height]
Inlet centre: 180mm
Base to spout: 50mm [5cm]
Centre of inlet to centre of outlet: 119mm [11.9cm]
Flow type: Single
Number of tap holes: 2
Handle type: Crosshead handle
Installation type: Deck mounted
Manufactured using brass, stainless steel and ABS material
Connection inlet: 3/4 Inch BSP
Connection outlet: M24 Cache flow straightener
Maximum hot water temperature: 60°C
Maximum static pressure: 10 bar
Valve type: 3/4 Inch Ceramic Disc Valve - 1/4 turn
Salt spray tested to ensure added durability
Suitable for all plumbing systems
Suitable for low and high water pressure systems
Required minimum 0.2 bar to maximum 5.0 bar water pressure
Long life 1/4 turn ceramic disc valves for added durability and smooth control
Robust metal fixing nut to secure the tap in place, reducing the risk of loosening over time
A hard-wearing, flawless, scratch-resistant chrome finish that lasts for years

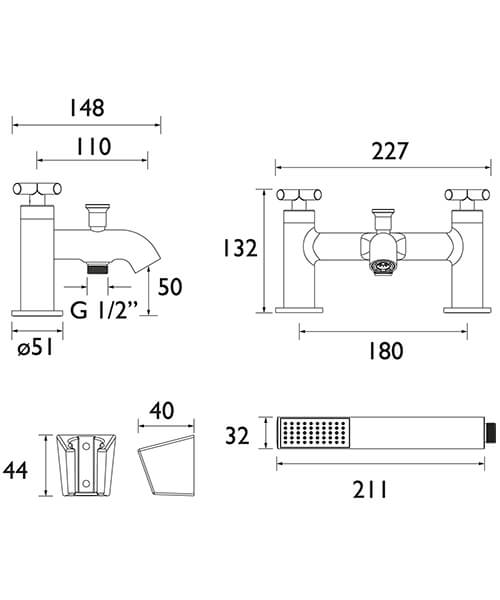

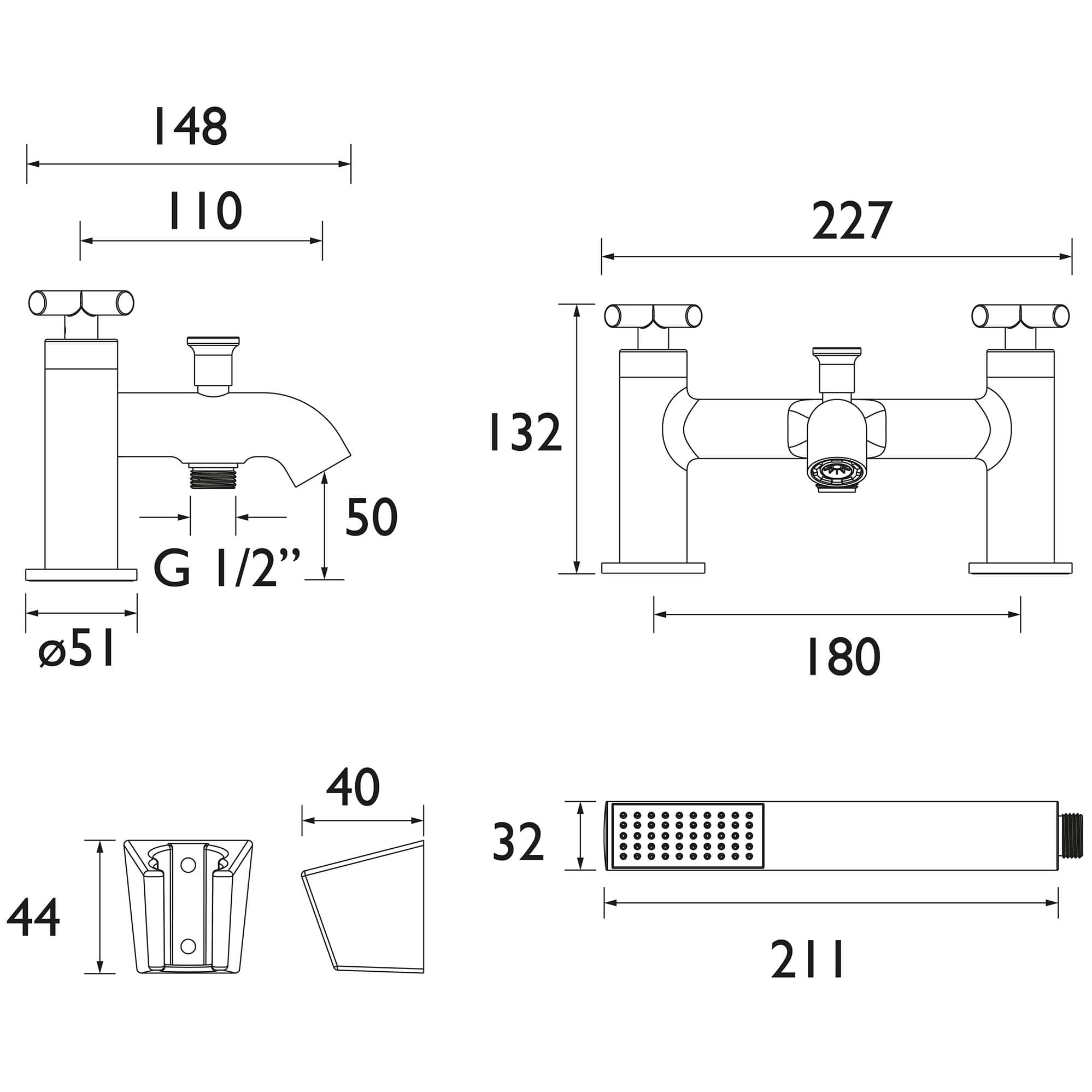

Refer to the technical diagram for complete technical dimensions
Download the product data sheet and installation instructions from our technical info section
10 years parts and 1 year labour guarantee from the manufacturer

Colour	Chrome
Warranty/Guarantee	10 Years
Theme	Modern
Width	230
Height	132
No. of Tap Holes	2
Valve Type	3/4 Inch Ceramic Disc Valve - 1/4 Turn
Base To Spout	50
Spout Reach	110
Handle Style	Crosshead
Inlet Centres	180
Installation Type	Deck Mounted
Minimum Operating Pressure (Bar)	0.2

Download Product Data Sheet PDF

Download Installation Instructions PDF

Bristan Naxos Deck Mounted Chrome Bath Filler Tap
