Hudson Reed 500mm Square Flat Electric Heated Towel Radiator small Image 4

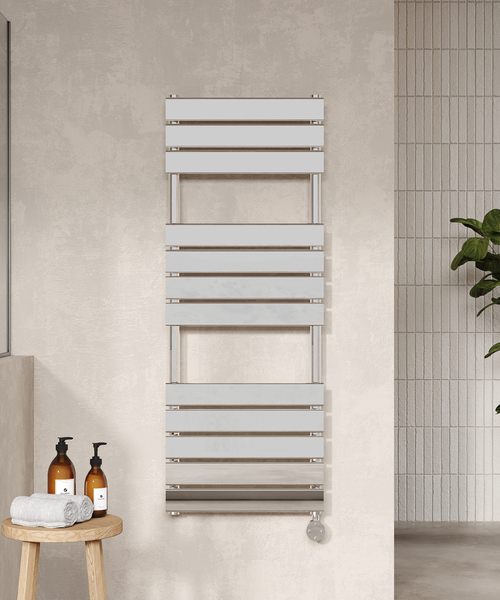

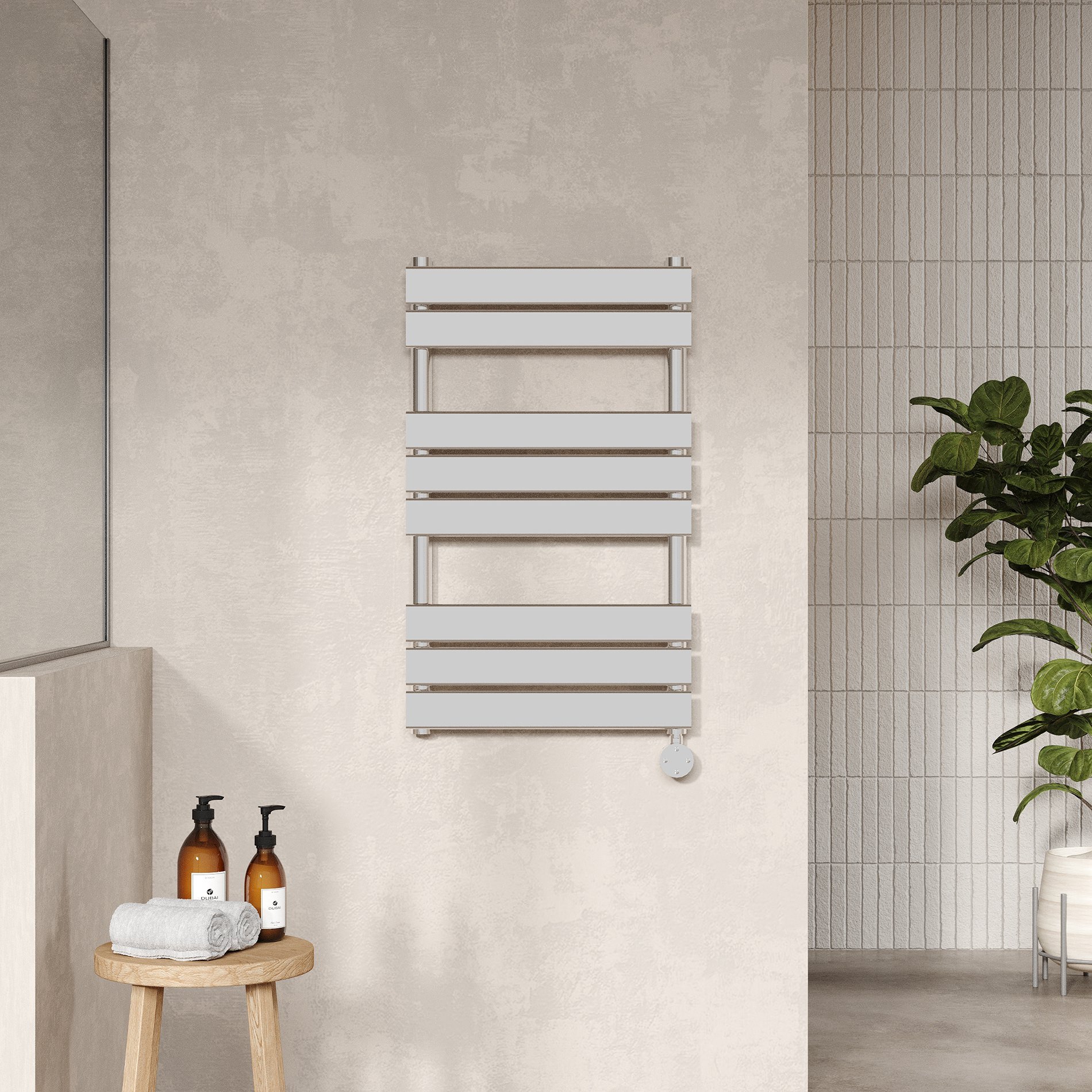

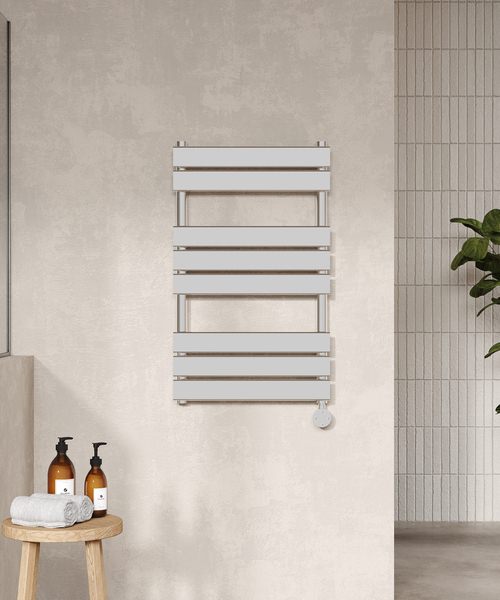

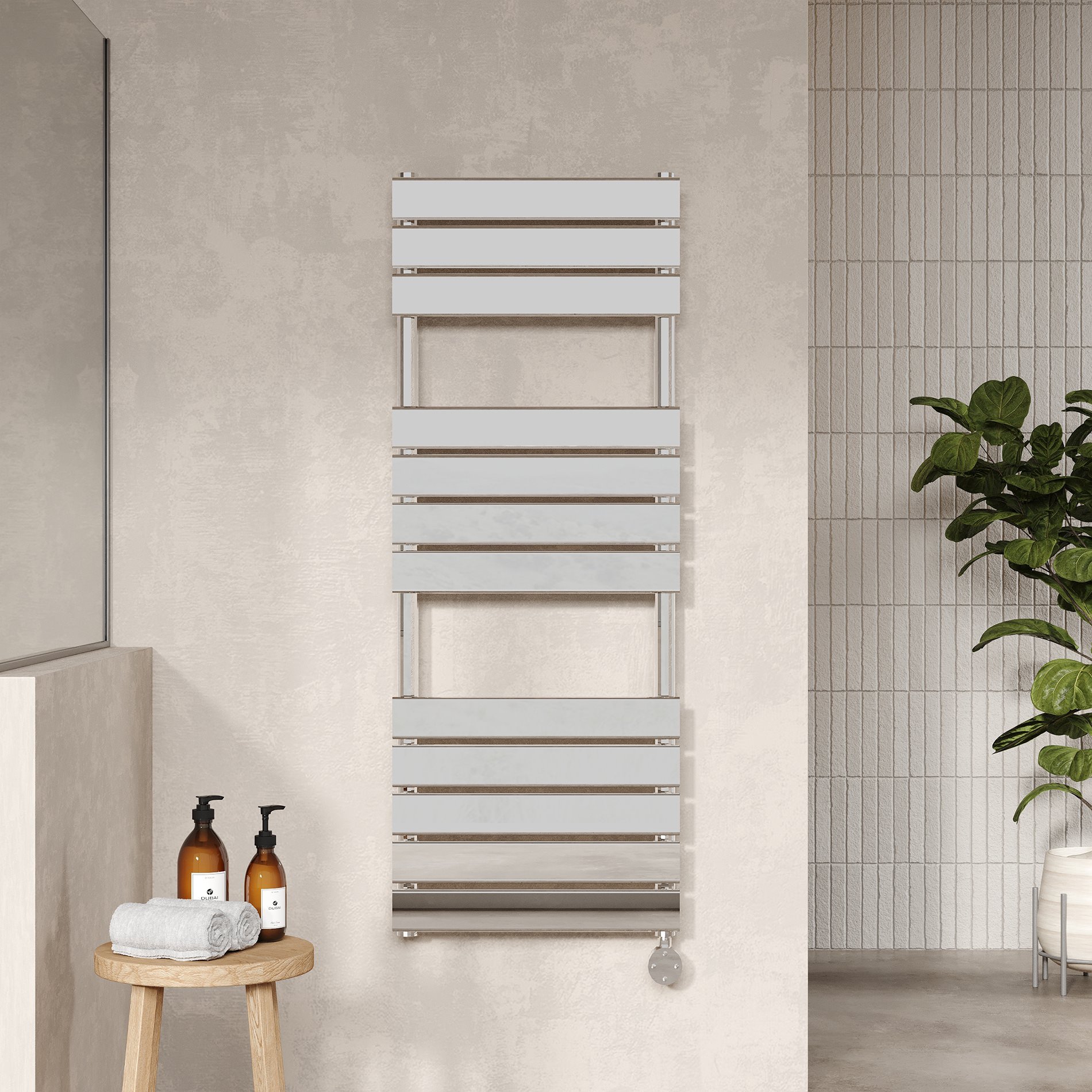

Hudson Reed 500mm Square Flat Electric Heated Towel Radiator

Additional image of Hudson Reed 500mm Square Flat Electric Heated Towel Radiator

Additional image for 72720 hudsonreed - HL158

Alternate image of Hudson Reed 500mm Square Flat Electric Heated Towel Radiator

Hudson Reed 500mm Square Flat Electric Heated Towel Radiator

Name: Hudson Reed 500mm Square Flat Electric Heated Towel Radiator
Brand: Hudson Reed
SKU: HL158
Price: 192 GBP
Availability: InStock

More Finishes And Sizes Available

No Rating

Write a Review

Rate This:

MFC Code : HL158

Product Code : 72720

Delivery: £34.95

£192.00

RRP : £480.00

Variation Available

500 x 840 [mm] - Anthracite £192.00
500 x 840 [mm] - Chrome £265.69

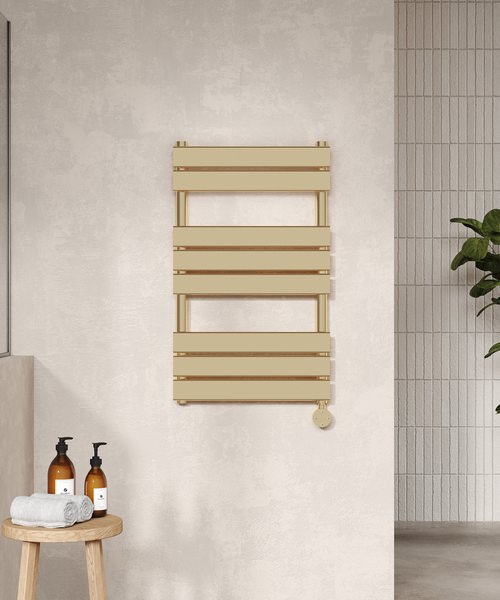

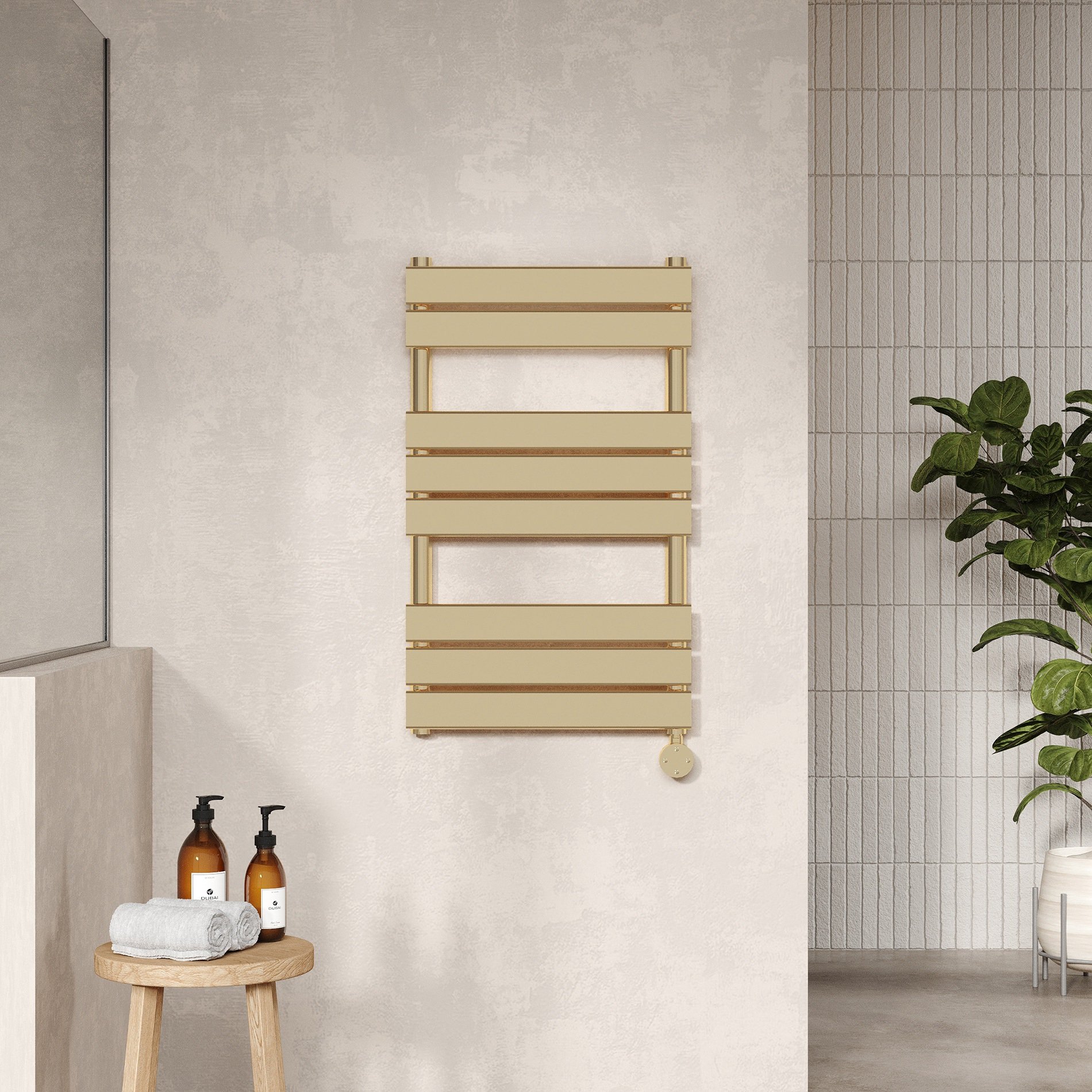

500 x 840 [mm] - Brushed Brass £305.85

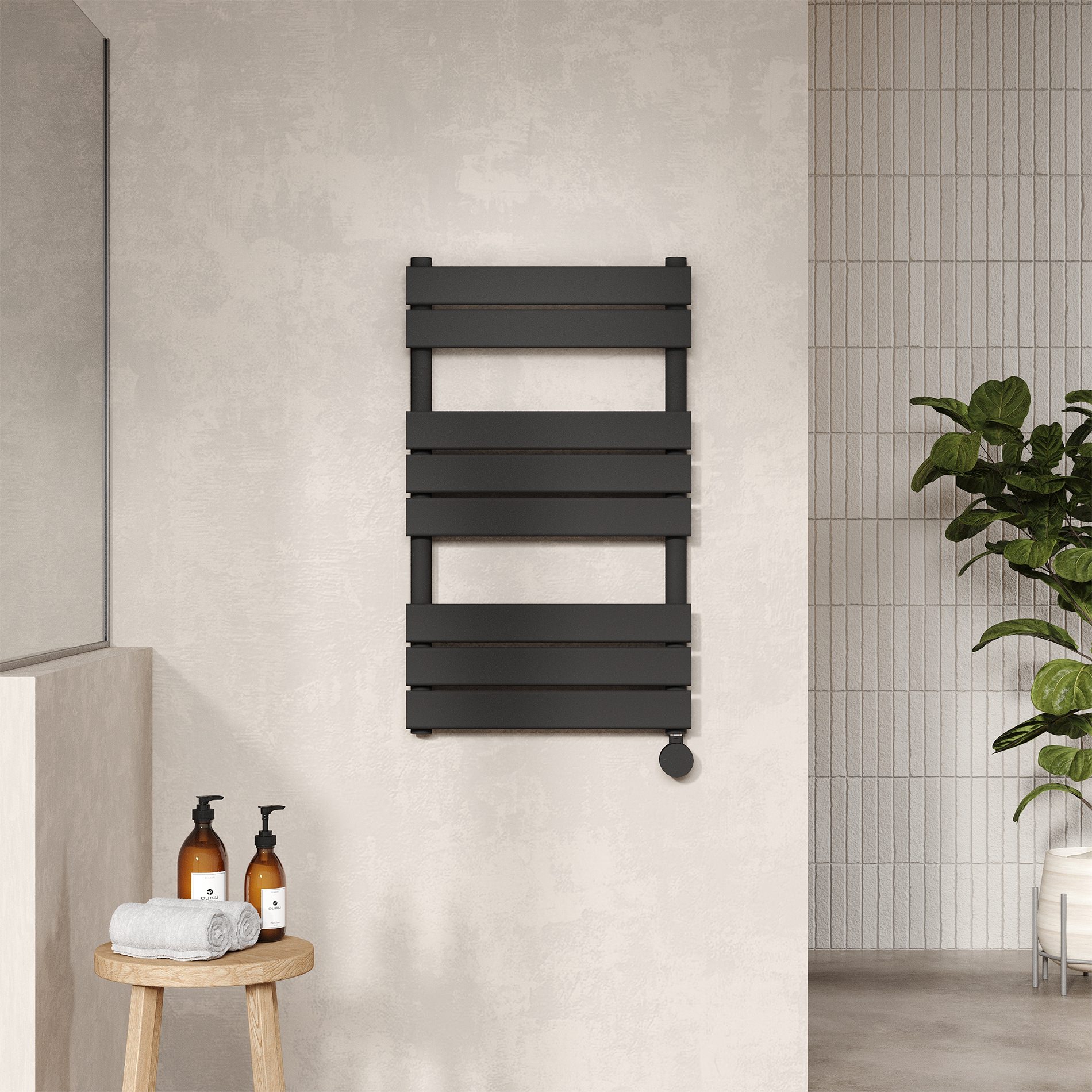

500 x 840 [mm] - Matt Black £192.00

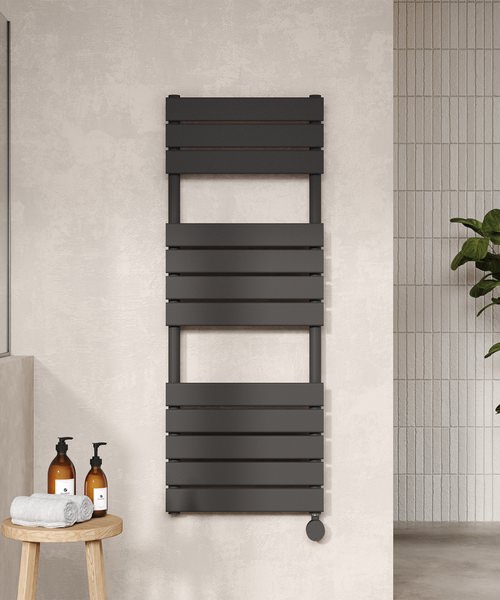

500 x 1213 [mm] - Anthracite £223.97
500 x 1213 [mm] - Chrome £331.98
500 x 1213 [mm] - Brushed Brass £374.87
500 x 1213 [mm] - Matt Black £223.97

OP-213871 - 500 x 840 [mm] - Anthracite

qty :

About This Product

Projection from wall 100mm (10cm)
Width 500mm (50cm)
Pipe centre 450mm (45cm)
Max projection 100mm (10cm) - 110mm (11cm)
Type of Heat: Electric
Certification: WEEE and RoHS
IP rating: IP64 ingress protection
Brackets included
Anthracite RAL 7016
Installation type: Wall-mounted
High-quality minimalistic design
To ensure ease of fitting, these electric-only towel warmers are pre-filled with an electrical inhibitor solution, which helps protect the internal walls of the radiator
Technical drawing available for more technical details
Download the PDF from the technical Info Section for the technical data sheet
Guarantee: 5 years from the Hudson Reed against manufacturing faults

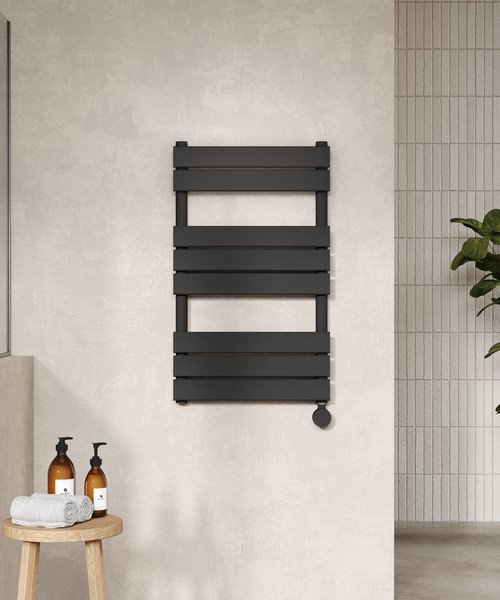

Specification For 840mm Height:
Number of panels: 8
Supplied with the fitted 400-watt heating element and thermostatic control
BTU: 30 Deg. C - 529, 50 Deg. C - 993, 60 Deg. C - 1245 - Chrome and Brushed Brass
Output: 30 Deg. C - 155, 50 Deg. C - 291, 60 Deg. C - 365 - Chrome and Brushed Brass
BTU: 30 Deg. C - 720, 50 Deg. C - 1351, 60 Deg. C - 1679 - Anthracite and Matt Black
Output: 30 Deg. C - 211, 50 Deg. C - 396, 60 Deg. C - 492 - Anthracite and Matt Black

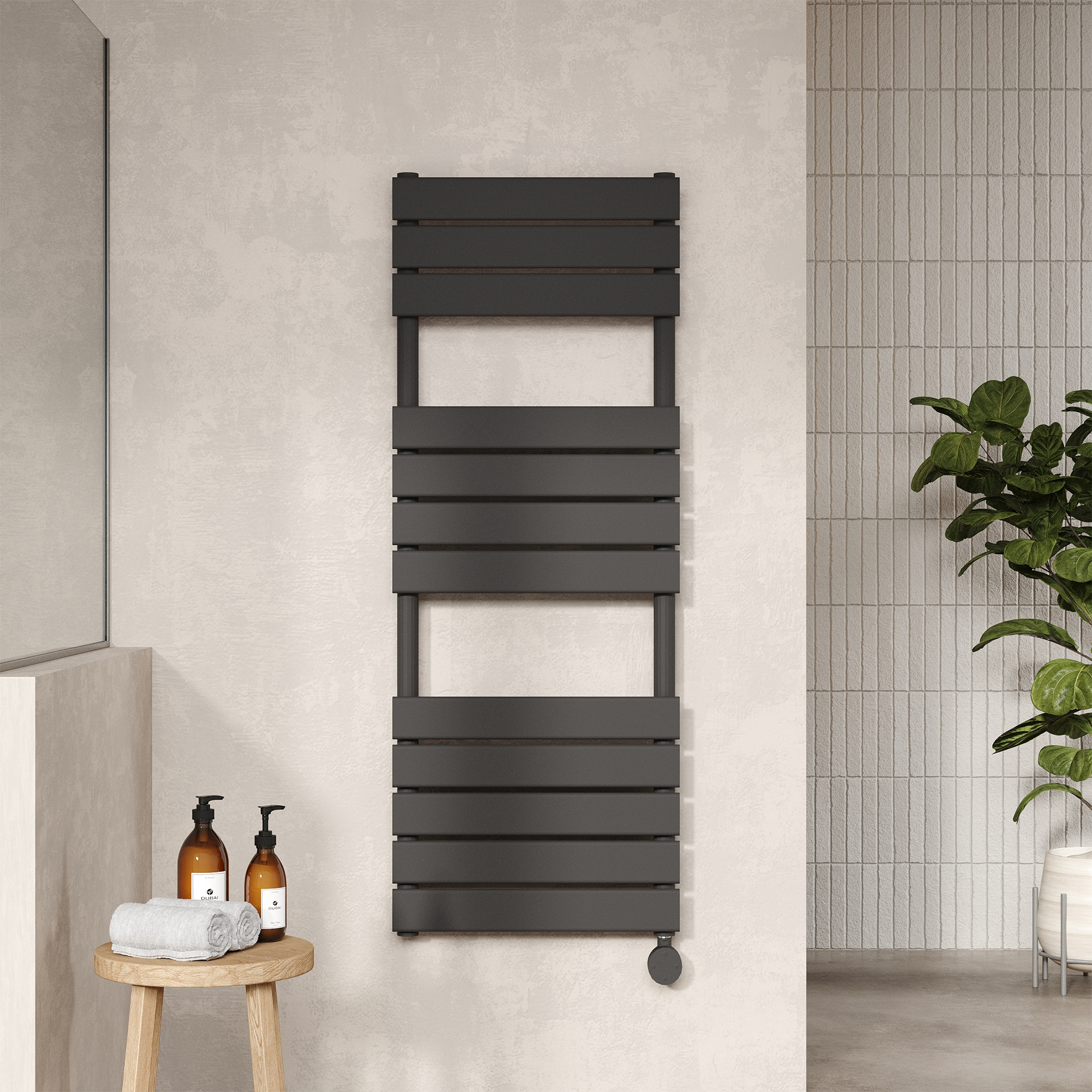

Specification For 1213mm Height:
Number of panels: 12
Supplied with fitted 600-watt heating element and thermostatic control
BTU: 30 Deg. C - 788, 50 Deg. C - 1484, 60 Deg. C - 1859 - Chrome and Brushed Brass
Output: 30 Deg. C - 231, 50 Deg. C - 435, 60 Deg. C - 545 - Chrome and Brushed Brass
BTU: 30 Deg. C - 1102, 50 Deg. C - 2081, 60 Deg. C - 2603 - Anthracite and Matt Black
Output: 30 Deg. C - 323, 50 Deg. C - 610, 60 Deg. C - 763 - Anthracite and Matt Black
Available Optional Product:
Different finishes available Anthracite, Chrome, Brushed Brass and Matt Black
Available in different heights 840mm and 1213mm

Information Breakdown

Colour	Anthracite
Warranty/Guarantee	2 Years
Theme	Modern
Weight In Kg	15
Width	500
Projection (Depth)	100
Orientation	Vertical
Tapping / Pipe Centres	450
Wall to Centre of Inlet	62
Installation Type	Wall Mounted

Technical Info

Download Technical Data Sheet For 840mm Towel Radiator PDF

Download Technical Data Sheet 1213mm Towel Radiator PDF

PRODUCT VARIATIONS INFO & MFC CODE

Detail For Electric Towel Radiator

WIDTH	HEIGHT	FINISH	ELEMENT (Watts)	BTU 30 Deg. C	BTU 50 Deg. C	BTU 60 Deg. C	MFC
500	840	Anthracite	400	720	1351	1679	HL158
500	840	Chrome	400	529	993	1245	HL358
500	840	Brushed Brass	400	529	993	1245	HL858
500	840	Matt Black	400	720	1351	1679	HL458
-	-	-	-	-	-	-	-
500	1213	Anthracite	600	1102	2081	2603	HL159
500	1213	Chrome	600	788	1484	1859	HL359
500	1213	Brushed Brass	600	788	1484	1859	HL859
500	1213	Matt Black	600	1102	2081	2603	HL459
