Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray

Hudson Reed Logo
More Finish And Size Available
No Rating No Rating Write a Review
Rate This:
MFC Code : NLT61023
Product Code : 61370
Delivery: £34.95
£154.00
RRP : £385.00
SELECT FINISH Step 1

SELECT Length Step 2

SELECT Width Step 3

SELECT Waste And Grills Step 4

SELECT Plinth Kit And Leg Set Step 5

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Choice of finish: White Slate, Grey Slate and Black Slate - [See Option]
  • Available in different sizes - [See Option]
  • Manufactured using Acrylic Capped ABS Caco3 and Pu material
  • Shape: Rectangular
  • 32mm slim height
  • Waste position: Positioned Centrally
  • CE and UKCA-certified product
  • Patented technology - Light, Strong and Durable
  • All trays have a flat underside making installation and leveling easier
  • Acrylic capped constructed from a polyurethane resin mixed with a filler, including volcanic ash
  • Waste and grills shown in the image are not included
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instruction

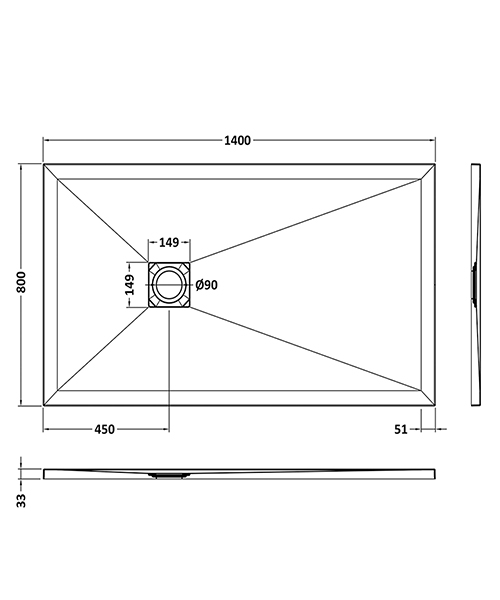

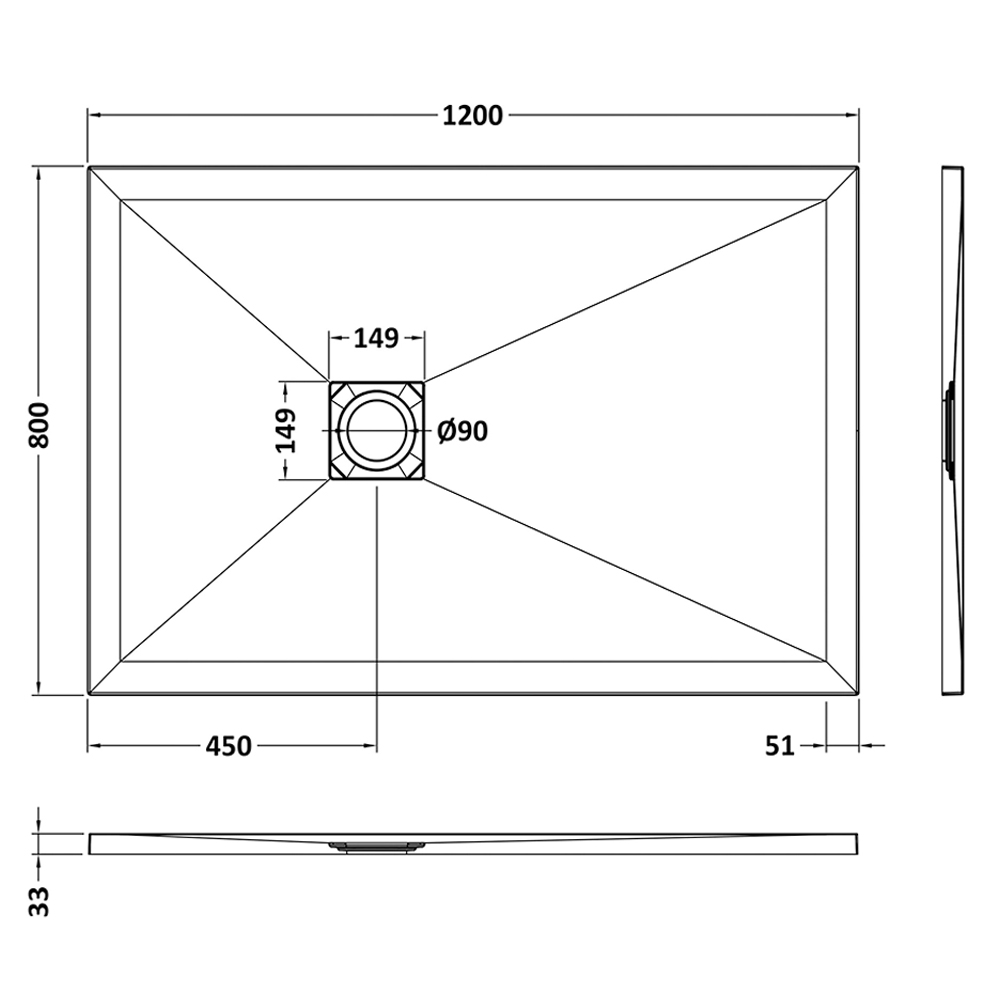

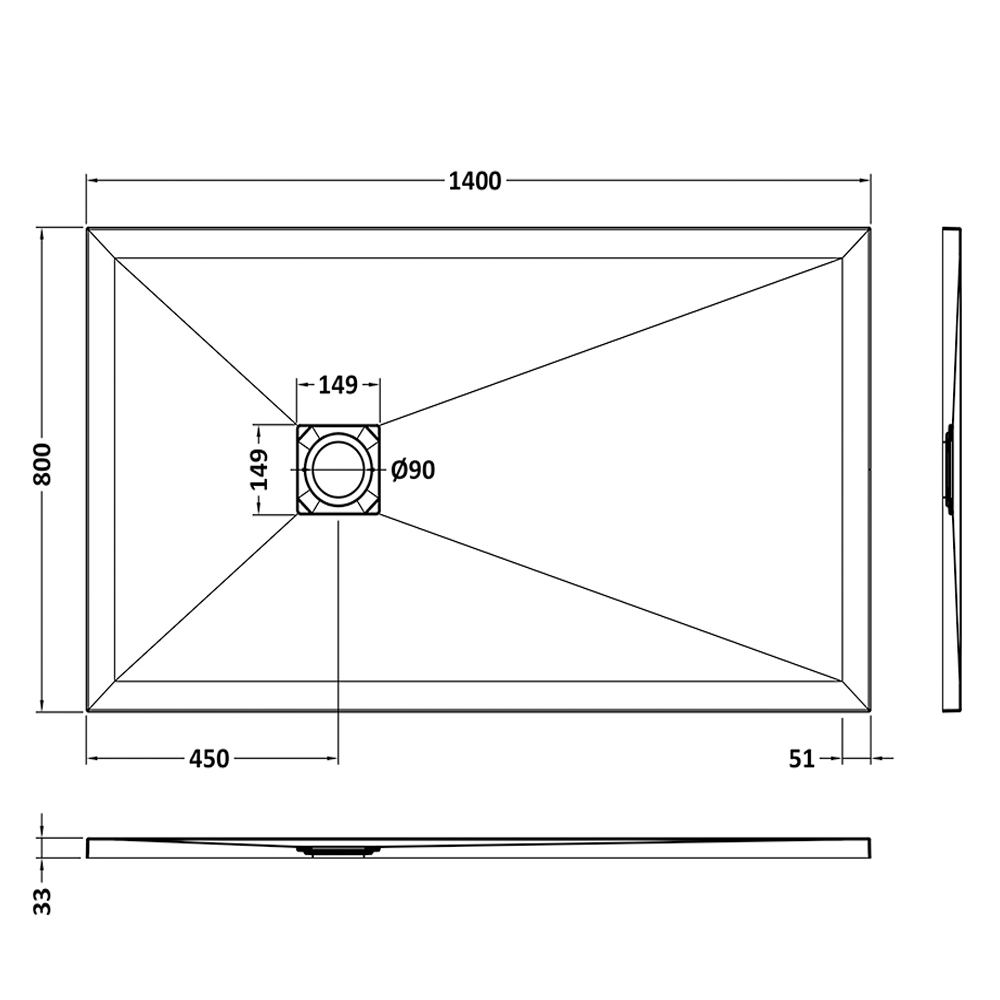

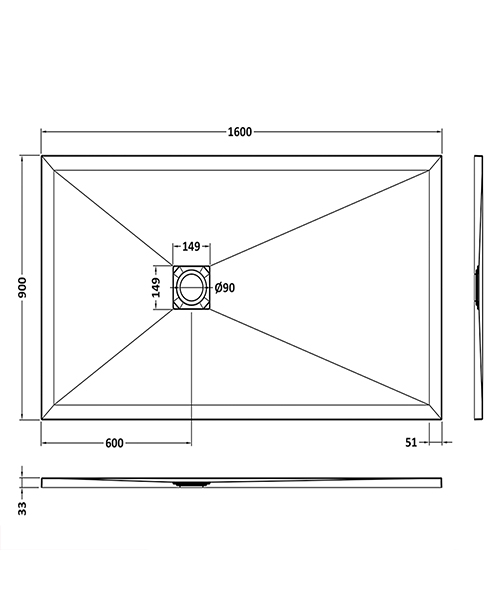

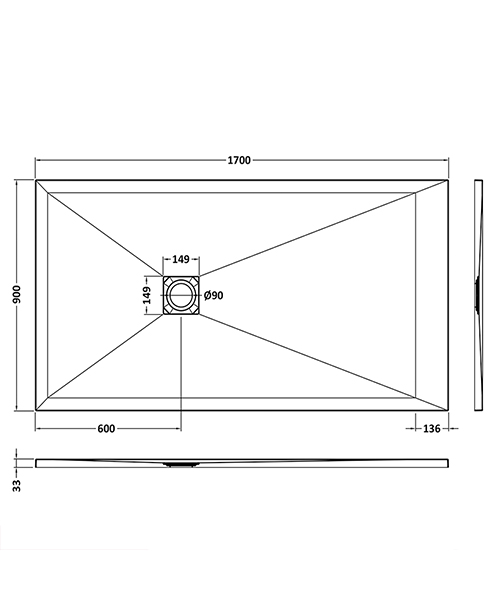

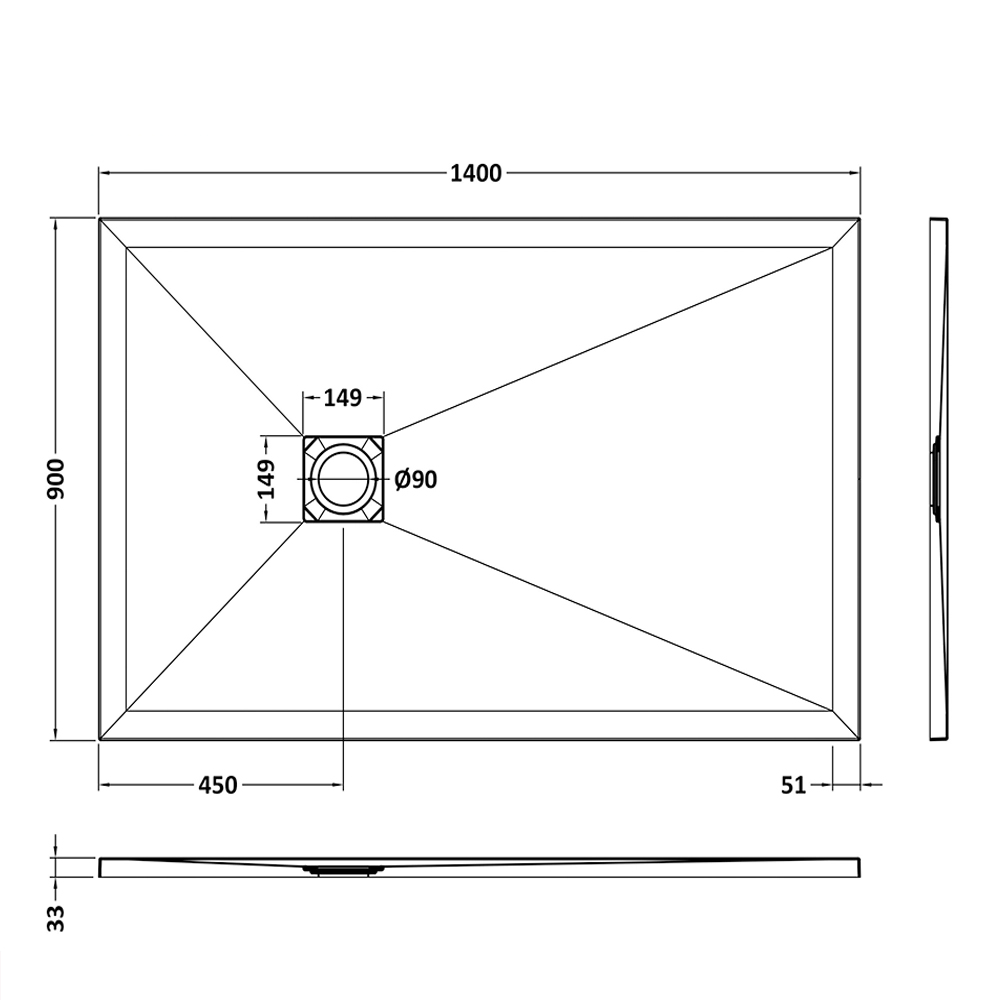

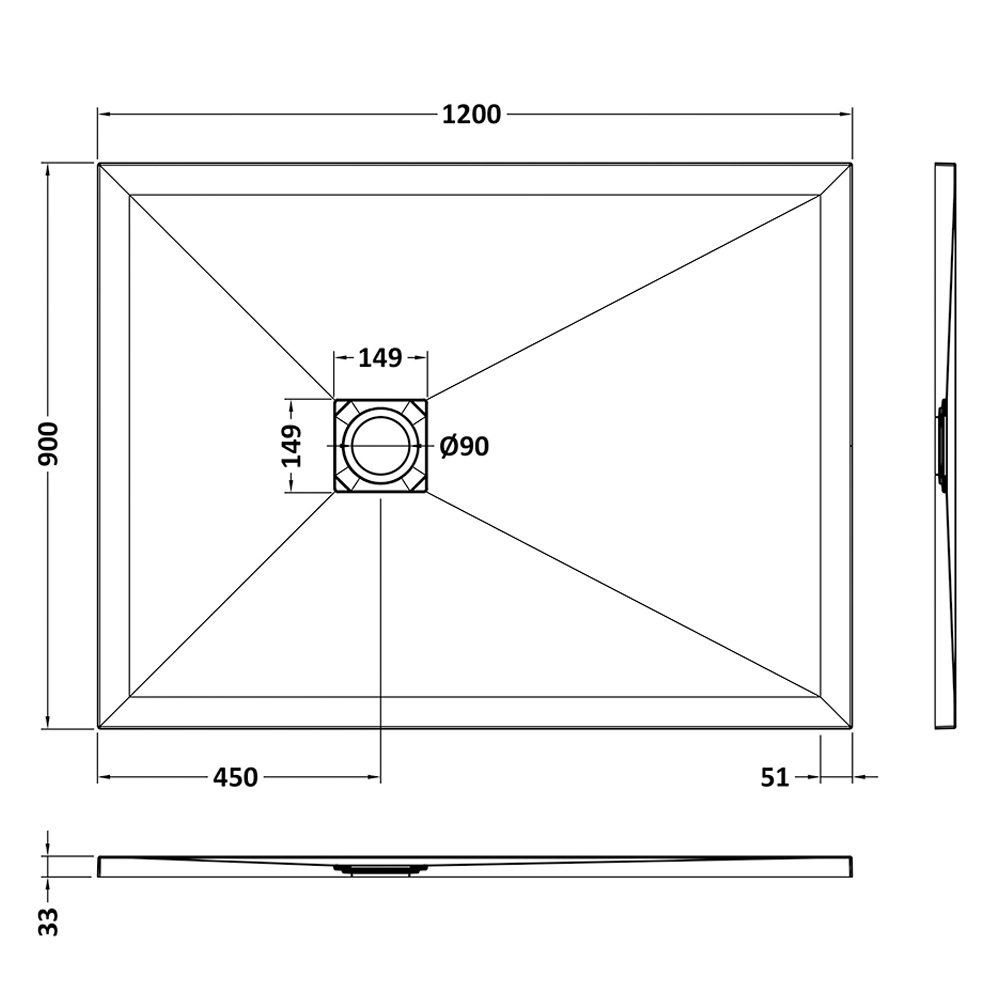

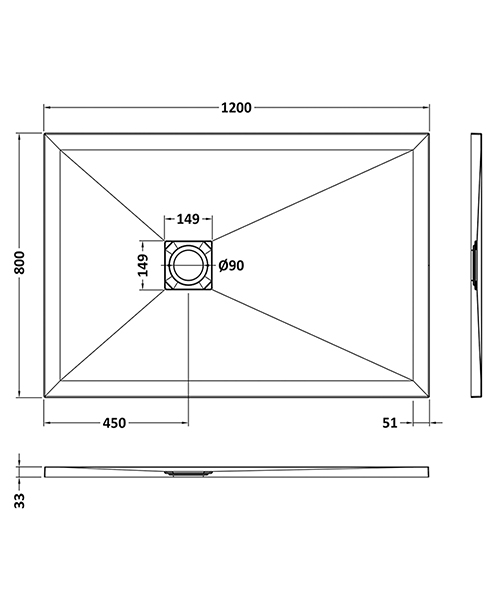

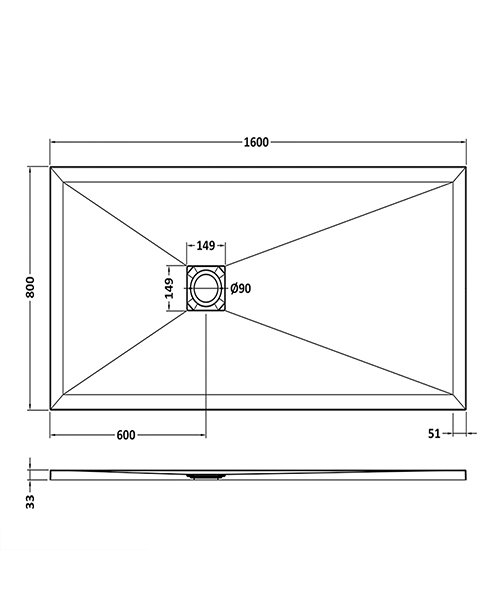

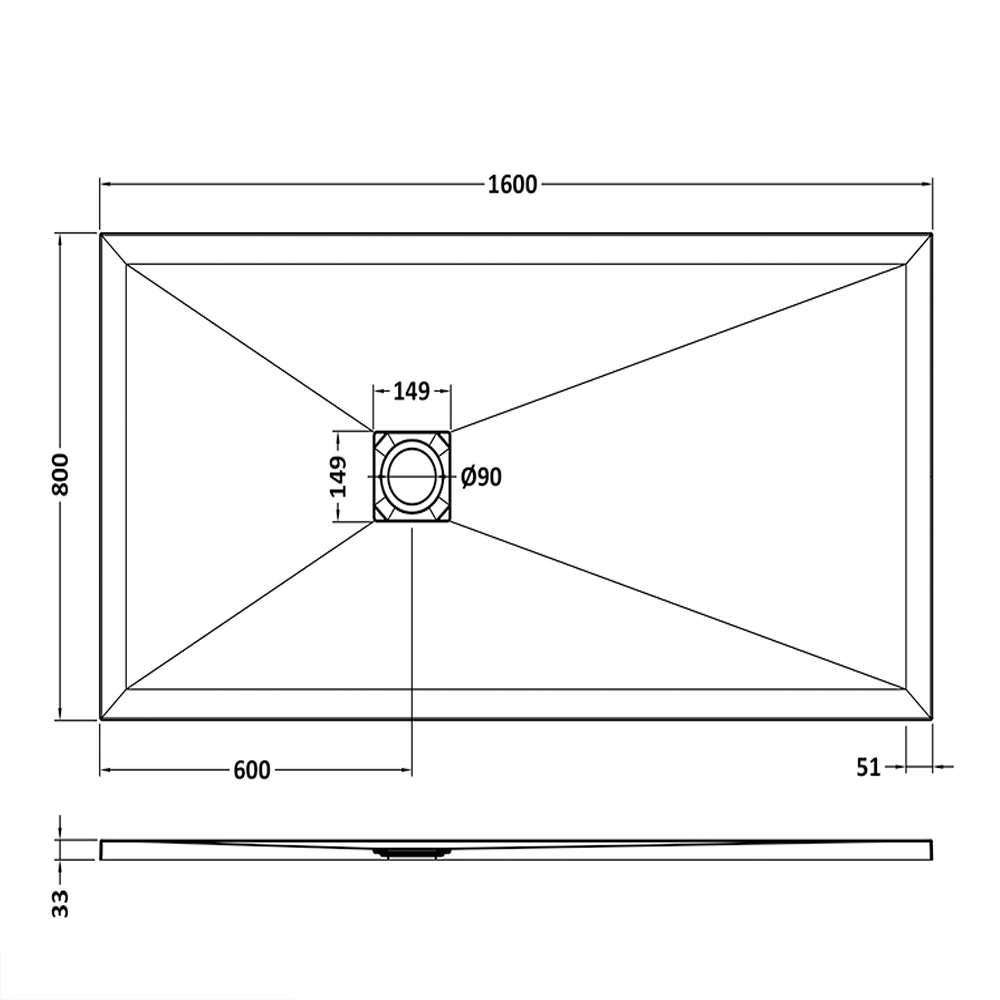

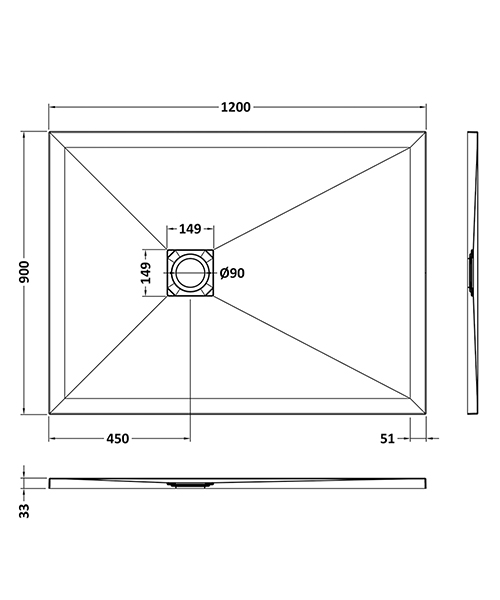

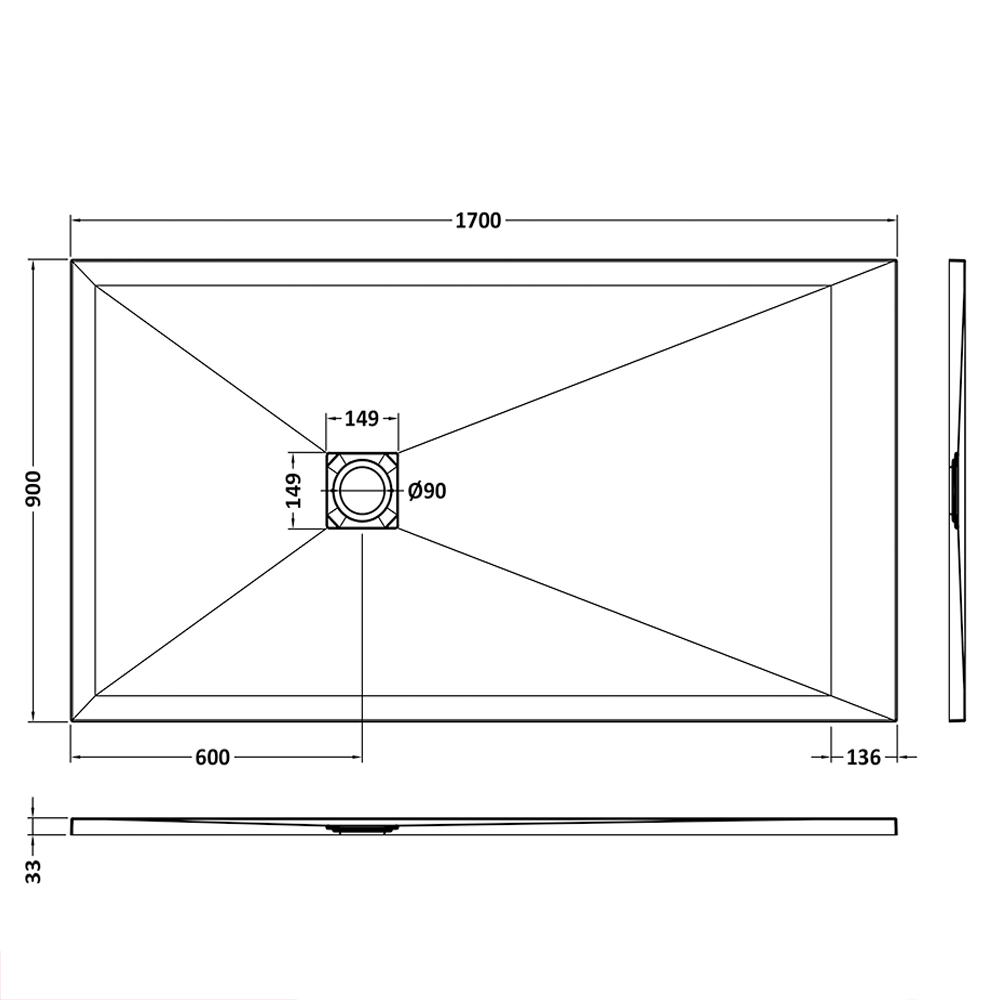

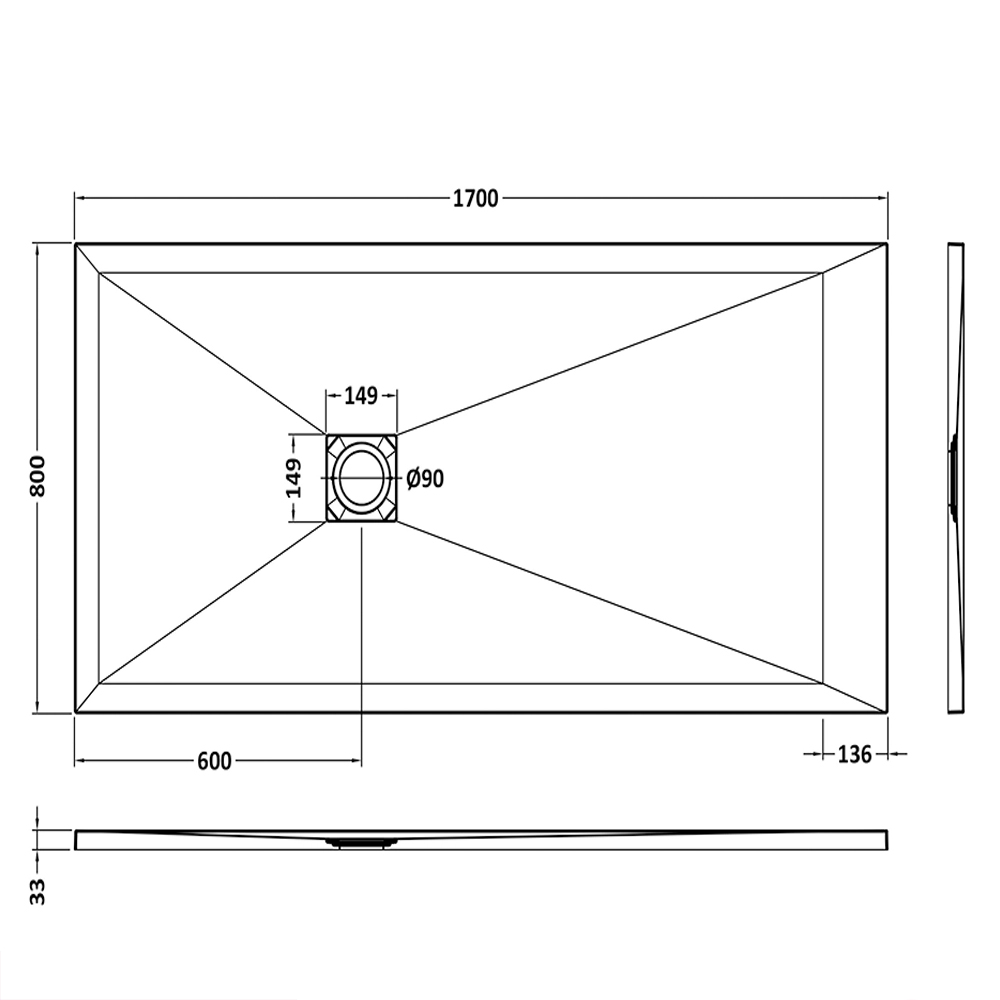

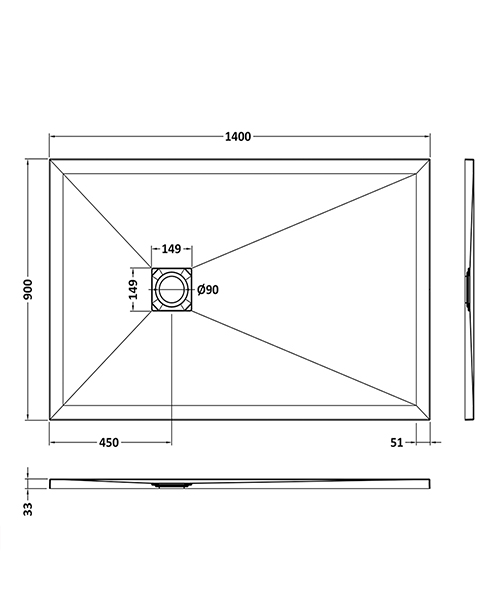

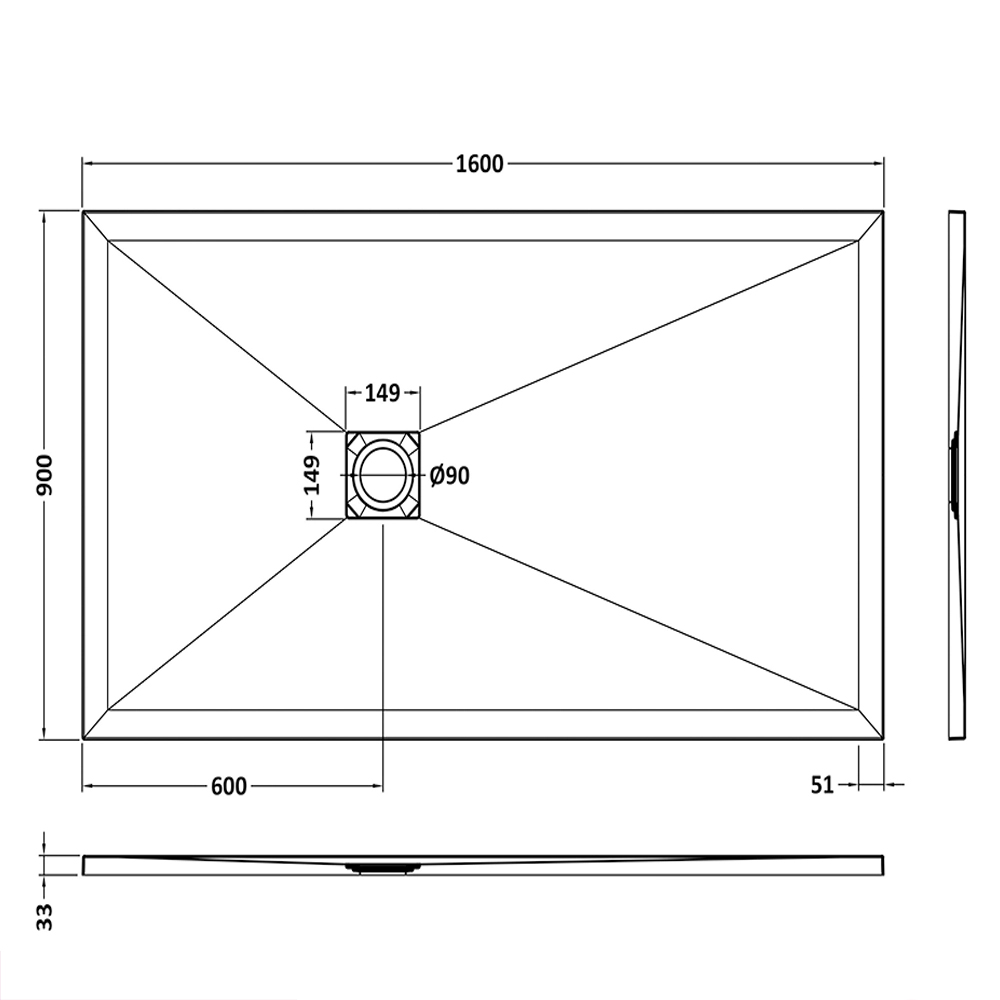

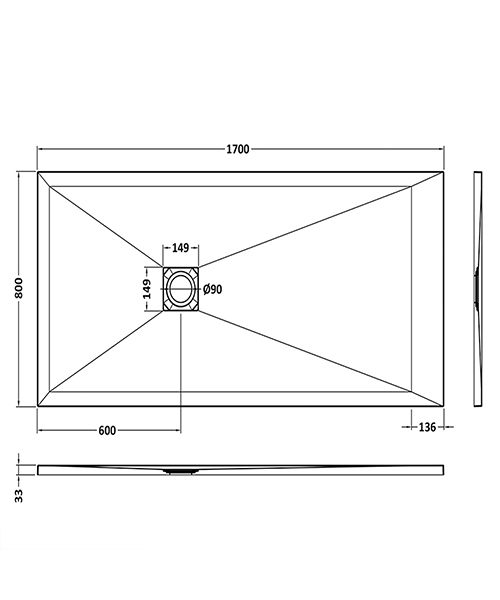

  • Refer to the technical drawing for more details
  • Guarantee: Lifetime from Hudson Reed against manufacturing defects.
  • Available Optional Products:
  • Square Waste and Grills
  • Easy plumb leg And Plinth set

Information Breakdown

Colour Slate White
Warranty/Guarantee Lifetime
Material Acrylic Capped ABS Caco3 And Pu
Weight In Kg 41.4
Width 1200
Height 32
Compliance/Approvals/Standard CE, UKCA
Depth 800
Distance tray edge to centre of drain hole 450
Drain Placement Positioned Centrally
Panel and leg set included Sold Separately
Tray Type Standard

Technical Info

Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray
Hudson Reed 32mm Slimline Acrylic Rectangular Shower Tray

Download Technical Data Sheet PDF

Download Fitting Instruction PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Details For Rectangular Shower Tray
    MFC Code Length Width Finish
    NLT61023 1200mm 800mm White Slate
    NLT71023 1200mm 800mm Grey Slate
    NLT91023 1200mm 800mm Black Slate
    NLT61024 1200mm 900mm White Slate
    NLT71024 1200mm 900mm Grey Slate
    NLT91024 1200mm 900mm Black Slate
    NLT61033 1400mm 800mm White Slate
    NLT71033 1400mm 800mm Grey Slate
    NLT91033 1400mm 800mm Black Slate
    NLT61034 1400mm 900mm White Slate
    NLT71034 1400mm 900mm Grey Slate
    NLT91034 1400mm 900mm Black Slate
    NLT61053 1600mm 800mm White Slate
    NLT71053 1600mm 800mm Grey Slate
    NLT91053 1600mm 800mm Black Slate
    NLT61054 1600mm 900mm White Slate
    NLT71054 1600mm 900mm Grey Slate
    NLT91054 1600mm 900mm Black Slate
    NLT61063 1700mm 800mm White Slate
    NLT71063 1700mm 800mm Grey Slate
    NLT91063 1700mm 800mm Black Slate
    NLT61064 1700mm 900mm White Slate
    NLT71064 1700mm 900mm Grey Slate
    NLT91064 1700mm 900mm Black Slate
  • Details For Waste And Grills
    MFC Code Trap Finish Grill
    STW001S White Chrome Grill
    STW004S White White Grill
    STW005S White Brass Grill
    STW007S Black Chrome Grill
    STW002S Black White Grill
    STW006S Black Brass Grill
