Reina Slimline Steel Vertical Designer Radiator

Reina Logo
More Variation Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-SLN04703W
Product Code : 61177
Shipping: FREE
£158.39
RRP : £236.76
SELECT Width Step 1

SELECT Height Step 2

SELECT FINISH Step 3

SELECT Towel Bar Step 4

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 3-4 Working Days Apprx

Options & Accessories: You May Require

Chrome Pipe Kit
Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.



About This Product

  • Available in 11 sizes and 2 finishes [Refer Option]
  • Valves, chrome pipe and towel bar shown in the image are not included
  • Material: Steel
  • Suitable for vertical installation
  • Pipe centres: 50mm (0.5cm)
  • Wall to Pipe centre: 30-55mm (3-5.5cm)
  • Distance from wall: 62-87mm (6.2cm x 8.7cm)
  • Suitable for central heating system only
  • Supplied with Air vent and End plug
  • EN 442 compliant product
  • For BTU and Watts, Please refer to the Product Variations Info and MFC Code section

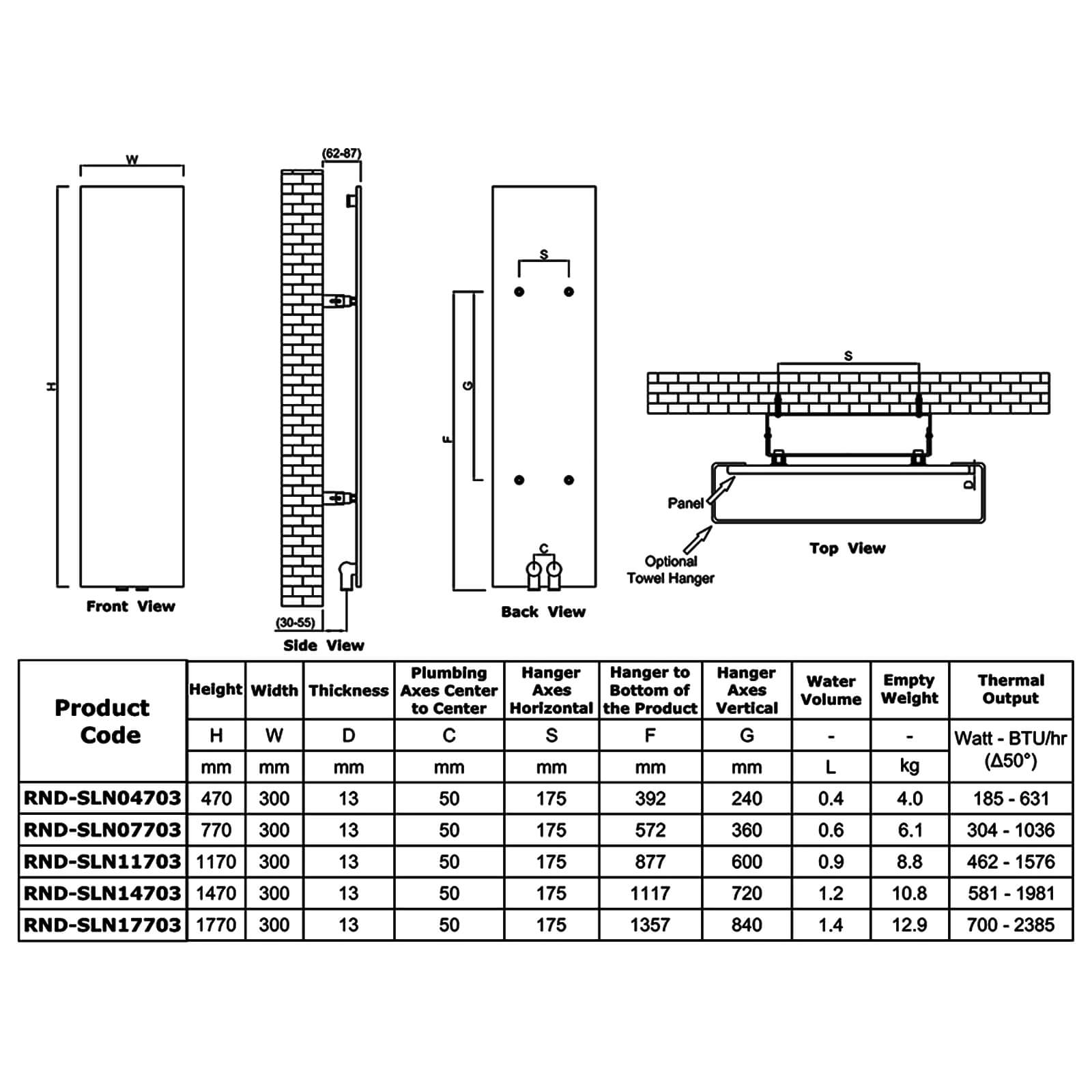

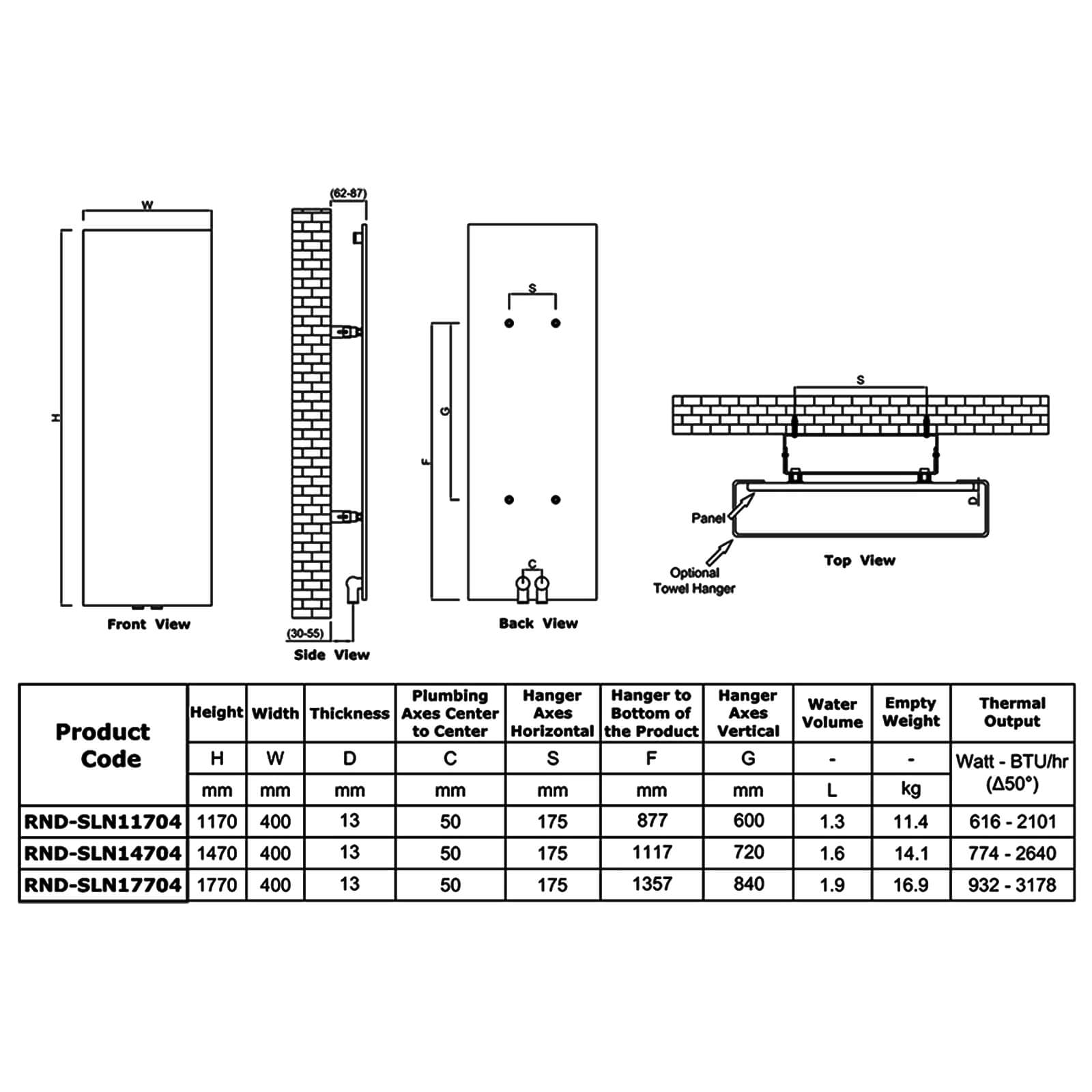

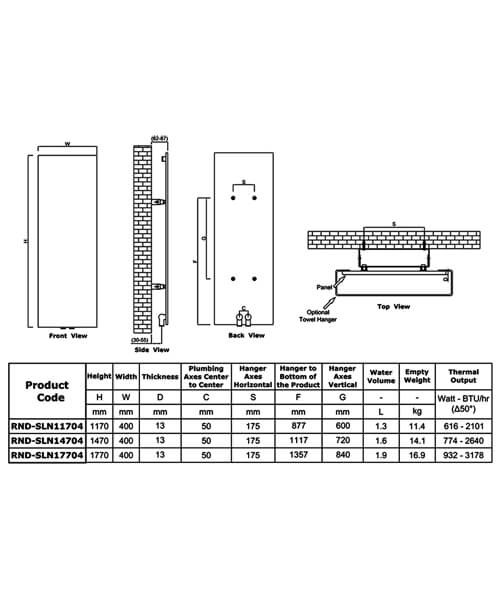

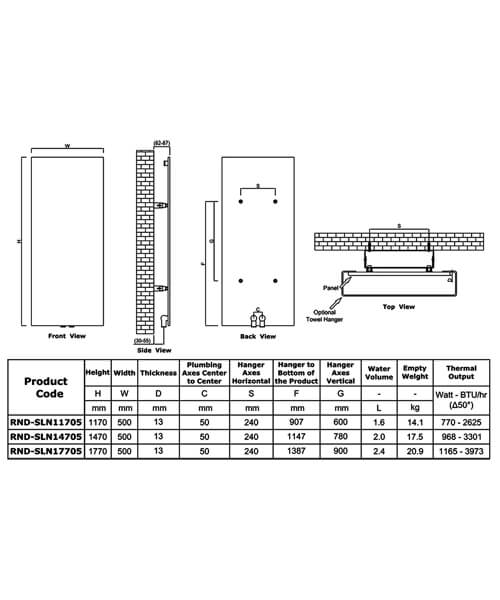

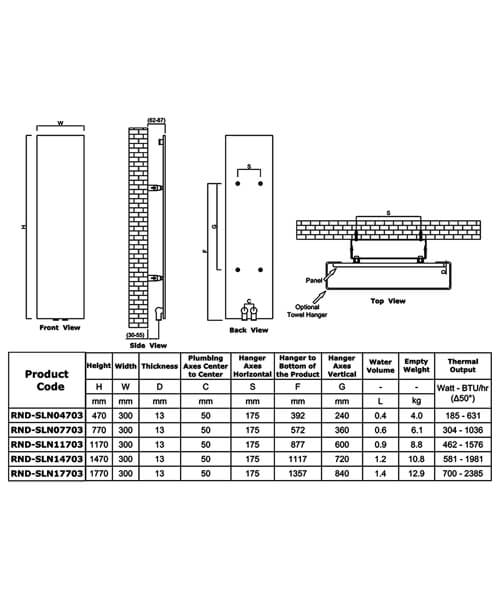

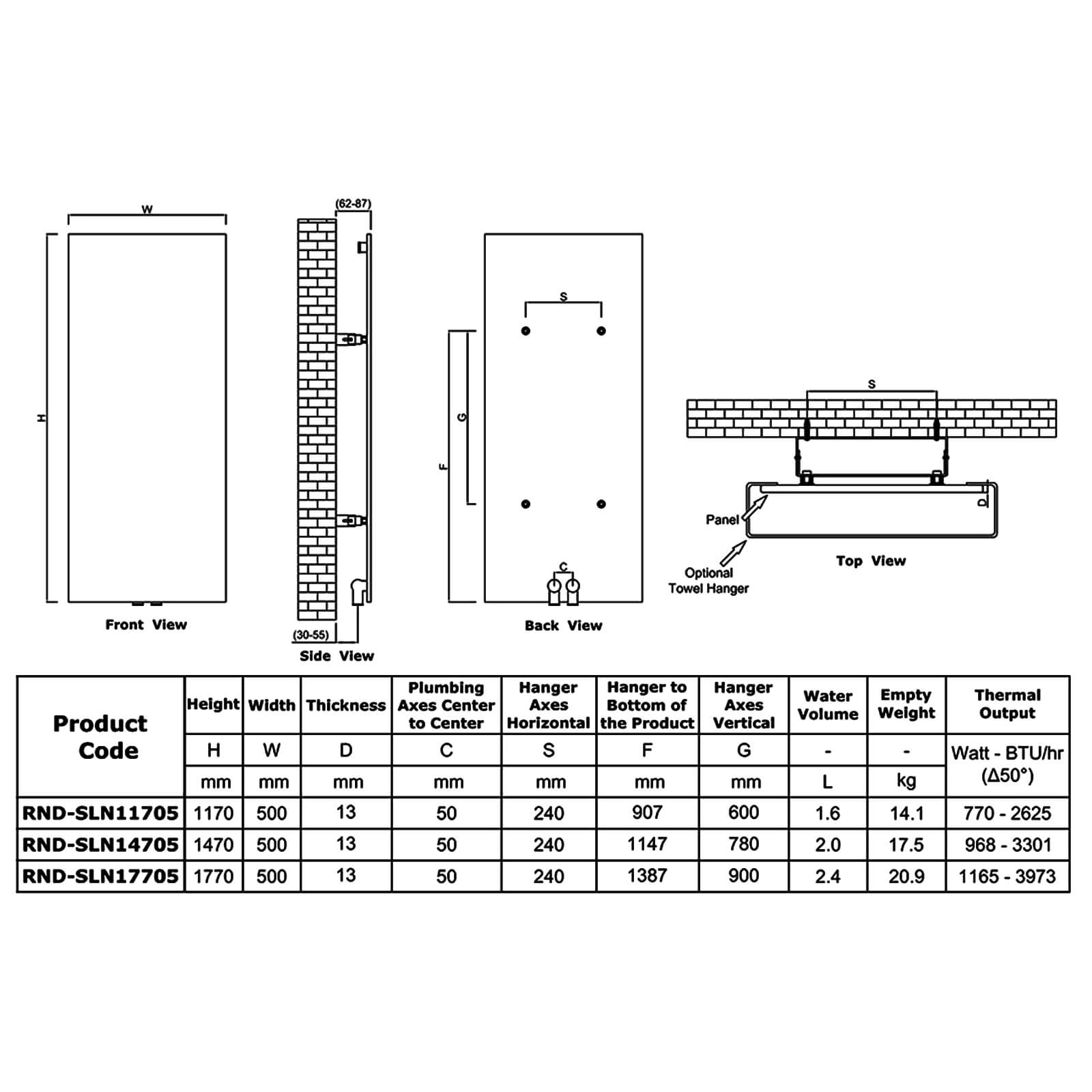

  • Refer technical diagram for complete technical dimensions
  • Guarantee: 5 years from Reina against manufacturing defects.
  • Available Optional Products:
  • Different Widths and Finishes
  • Valves
  • Sleeving Kit And Chrome Pipe Kit
  • Towel Bar.

Information Breakdown

Colour White
Warranty/Guarantee 5 Year
Width 300
Height 470
Orientation Vertical
BTU Output 977
Watts 287
Tapping / Pipe Centres 50
Valves Included Sold Separately
Wall to Centre of Inlet 30-55
Installation Type Wall Mounted
Compatible Valves

PRODUCT VARIATIONS INFO & MFC CODE
  • Specification Of 300mm Wide Radiator
    Height 470mm 770mm 1170mm 1470mm 1770mm
    Pipe Centres 50mm 50mm 50mm 50mm 50mm
    Wall To Pipe Centre 30-55mm 30-55mm 30-55mm 30-55mm 30-55mm
    Wall Distance 62-87mm 62-87mm 62-87mm 62-87mm 62-87mm
    Watts - Delta-70 287 471 716 900 1083
    BTU - Delta-70 977 1605 2441 3069 3694
    BTU - Delta-60 801 1316 2001 2516 3028
    BTU - Delta-50 630 1035 1575 1980 2383
    BTU - Delta-45 549 902 1371 1724 2075
    BTU - Delta-40 474 779 1185 1490 1793
    BTU - Delta-35 397 652 992 1248 1502
    BTU - Delta-30 322 530 806 1013 1219
    BTU - Delta-25 126 206 314 394 475
    White MFC RND-SLN04703W RND-SLN07703W RND-SLN11703W RND-SLN14703W RND-SLN17703W
    Anthracite MFC RND-SLN04703A RND-SLN07703A RND-SLN11703A RND-SLN14703A RND-SLN17703A
  • Specification Of 400mm Wide Radiator
    Height 1170mm 1470mm 1770mm
    Pipe Centres 50mm 50mm 50mm
    Wall To Pipe Centre 30-55mm 30-55mm 30-55mm
    Wall Distance 62-87mm 62-87mm 62-87mm
    Watts - Delta-70 954 1199 1444
    BTU - Delta-70 3254 4089 4923
    BTU - Delta-60 2667 3352 4035
    BTU - Delta-50 2099 2638 3176
    BTU - Delta-45 1828 2297 2766
    BTU - Delta-40 1580 1985 2390
    BTU - Delta-35 1323 1662 2001
    BTU - Delta-30 1074 1350 1625
    BTU - Delta-25 418 526 633
    White MFC RND-SLN11704W RND-SLN14704W RND-SLN17704W
    Anthracite MFC RND-SLN11704A RND-SLN14704A RND-SLN17704A
  • Specification Of 500mm Wide Radiator
    Height 1170mm 1470mm 1770mm
    Pipe Centres 50mm 50mm 50mm
    Wall To Pipe Centre 30-55mm 30-55mm 30-55mm
    Wall Distance 62-87mm 62-87mm 62-87mm
    Watts - Delta-70 1192 1499 1805
    BTU - Delta-70 4066 5113 6154
    BTU - Delta-60 3333 4191 5044
    BTU - Delta-50 2623 3299 3970
    BTU - Delta-45 2284 2872 3457
    BTU - Delta-40 1974 2482 2987
    BTU - Delta-35 1653 2078 2502
    BTU - Delta-30 1342 1687 2031
    BTU - Delta-25 523 657 791
    White MFC RND-SLN11705W RND-SLN14705W RND-SLN17705W
    Anthracite MFC RND-SLN11705A RND-SLN14705A RND-SLN17705A
