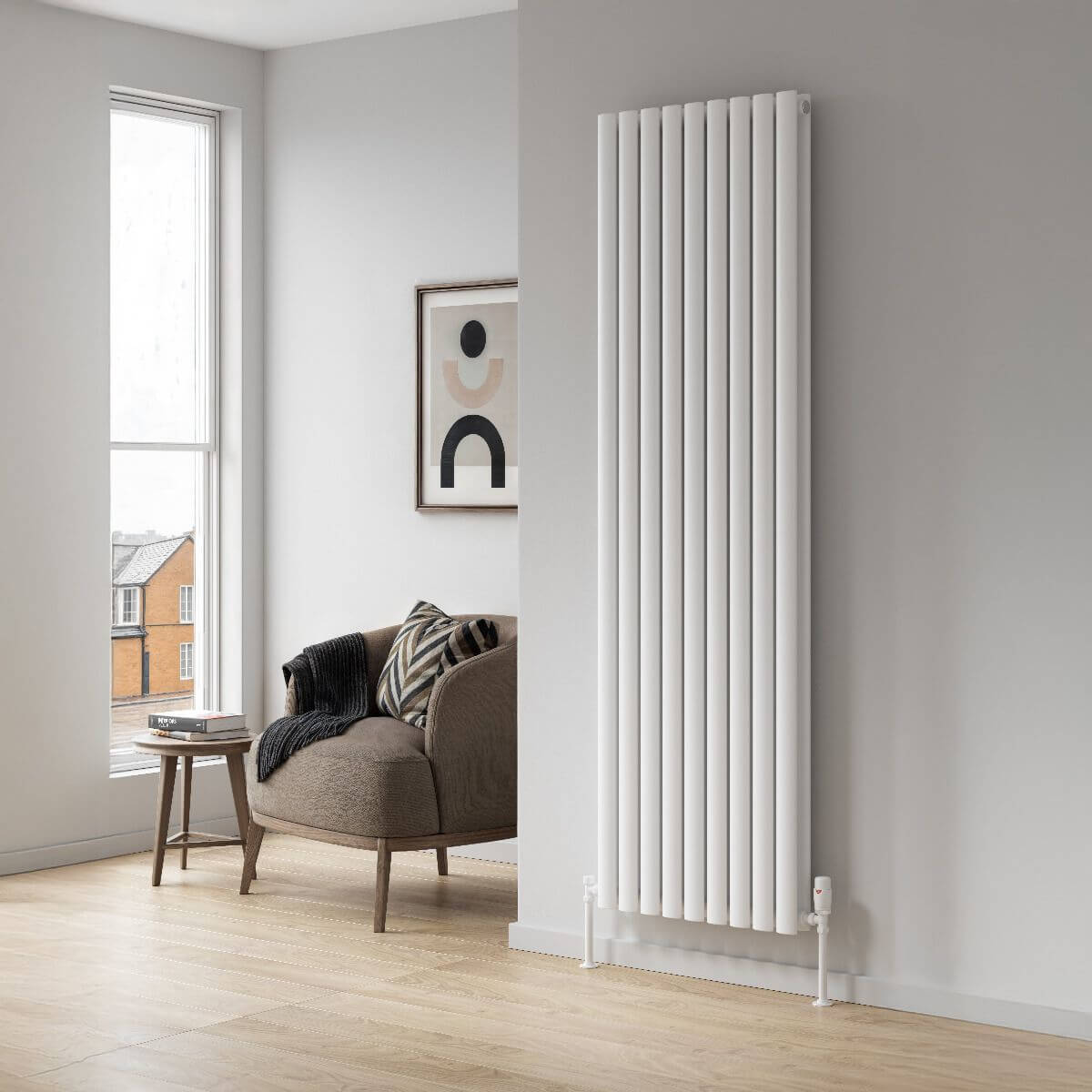

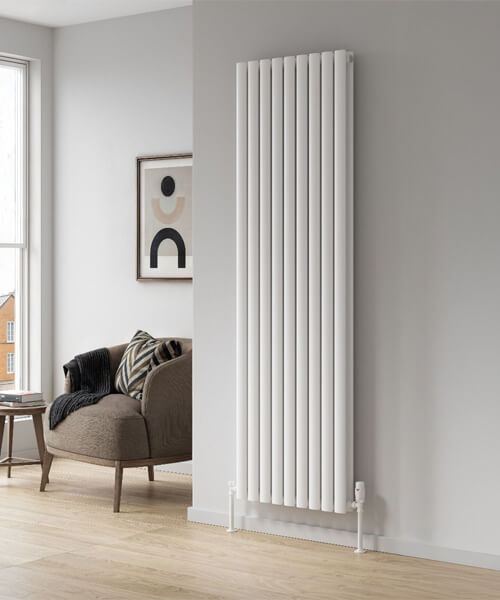

Reina Neva Double Panel Designer Radiator

Reina Logo
More Sizes And Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-NV2315WD
Product Code : 61166
Shipping: FREE
£152.91
RRP : £266.88
SELECT Width Step 1

SELECT Heigh Step 2

SELECT FINISH Step 3

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 3-4 Working Days Apprx

Options & Accessories: You May Require

Chrome Pipe Kit
Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.



About This Product

  • Available in different width: 236mm, 295mm, 354mm, 413mm, 472mm and 531mm - [See Option]
  • Available in different height: 1500mm and 1800mm - [See Option]
  • Choice of different finish: White and Anthracite - [See Option]
  • Image shown is for illustration purpose only
  • Valves shown in the image are not included
  • Height : 1500mm (150cm)
  • Wall to pipe centers : 65mm (6.5cm)
  • Distance from wall : 103mm (10.3cm)
  • Material: Steel
  • Double panel vertical designer radiator
  • Suitable for central heating system only
  • Supplied with Air vent and End plug
  • Brackets for radiator included
  • Heat Output is measured at Delta 70°C
  • Refer technical diagram for complete technical dimensions
  • Guarantee : 5 years from Reina against manufacturing defects.
  • Available Optional Product:
  • Valves
  • Sleeving Kit And Chrome Pipe Kit.

Information Breakdown

Colour White
Country of Origin Turkey
Warranty/Guarantee 5 Years
Width 236
Height 1500
Fixings included Yes
Orientation Vertical
BTU Output 3420
Watts 1003
Tapping / Pipe Centres 236
Valves Included Sold Separately
Fuel Type Central Heating
Heating Element Included Sold Separately
Element Type Standard, Thermostatic
Installation Type Wall Mounted
Compatible Valves

PRODUCT VARIATIONS INFO & MFC CODE
  • Details Of 1500mm Height Radiator
    Width 236mm 295mm 354mm 413mm 472mm 531mm
    Tube Qty 8 10 12 14 16 18
    Pipe Centres 236mm 295mm 354mm 413mm 472mm 531mm
    Wall To Pipe Centres 65mm 65mm 65mm 65mm 65mm 65mm
    Wall Distance 103mm 103mm 103mm 103mm 103mm 103mm
    Watts - Delta-70 1003 1247 1497 1746 1996 2245
    BTU - Delta-70 3420 4252 5104 5955 6807 7656
    BTU - Delta-60 2803 3485 4183 4882 5580 6275
    BTU - Delta-50 2207 2743 3293 3842 4392 4939
    BTU - Delta-45 1921 2389 2867 3346 3824 4301
    BTU - Delta-40 1660 2064 2478 2891 3304 3716
    BTU - Delta-35 1390 1729 2075 2421 2767 3112
    BTU - Delta-30 1129 1403 1684 1965 2247 2527
    BTU - Delta-25 440 547 656 765 875 984
    White MFC RND-NV2315WD RND-NV2915WD RND-NV3515WD RND-NV4115WD RND-NV4715WD RND-NV5315WD
    Anthracite MFC RND-NV2315AD RND-NV2915AD RND-NV3515AD RND-NV4115AD RND-NV4715AD RND-NV5315AD
  • Details Of 1800mm Height Radiator
    Width 236mm 295mm 354mm 413mm 472mm 531mm
    Tube Qty 8 10 12 14 16 18
    Pipe Centres 236mm 295mm 354mm 413mm 472mm 531mm
    Wall To Pipe Centres 65mm 65mm 65mm 65mm 65mm 65mm
    Wall Distance 103mm 103mm 103mm 103mm 103mm 103mm
    Watts - Delta-70 1203 1497 1796 2095 2395 2694
    BTU - Delta-70 4103 5104 6123 7145 8166 9187
    BTU - Delta-60 3363 4183 5019 5857 6694 7530
    BTU - Delta-50 2647 3293 3950 4610 5268 5927
    BTU - Delta-45 2305 2867 3440 4014 4588 5161
    BTU - Delta-40 1992 2478 2972 3469 3964 4460
    BTU - Delta-35 1668 2075 2489 2905 3320 3735
    BTU - Delta-30 1354 1684 2021 2358 2695 3032
    BTU - Delta-25 527 656 787 918 1050 1181
    White MFC RND-NV2318WD RND-NV2918WD RND-NV3518WD RND-NV4118WD RND-NV4718WD RND-NV5318WD
    Anthracite MFC RND-NV2318AD RND-NV2918AD RND-NV3518AD RND-NV4118AD RND-NV4718AD RND-NV5318AD
