Name: Reina Matera Chrome Steel Designer Radiator 500mm Wide
Brand: Reina
SKU: RND-MTR5077A
Price: 172.32 GBP
Availability: InStock

About This Product

Constructed using mild steel material
Width: 500mm (50cm)
EN 442 Compliant product
Suitable for central, electric and dual fuel heating systems

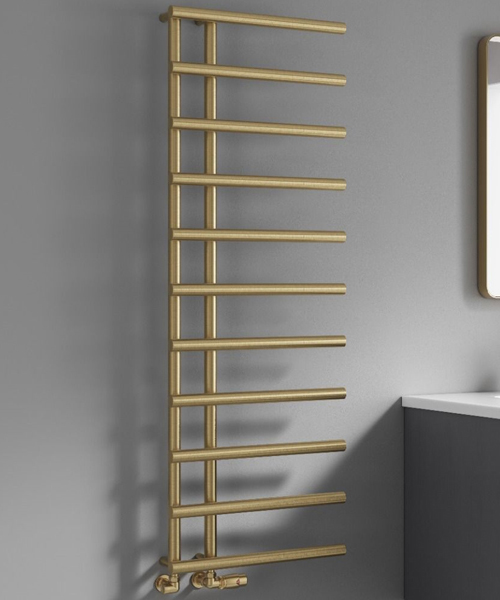

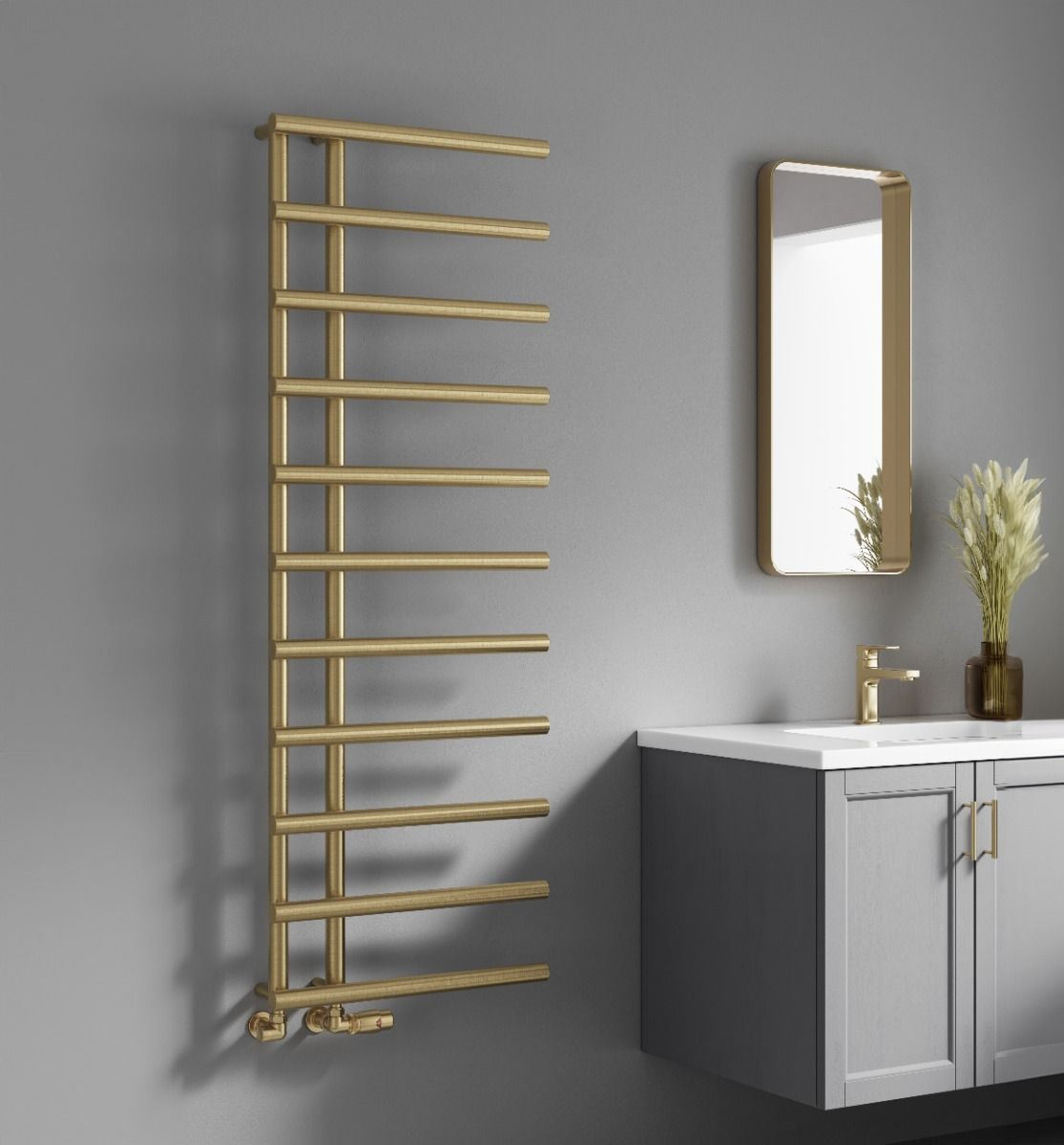

The image shown is for illustration purposes only
The valves shown in the image are not included
Supplied with Air vent and End plug
Brackets for radiator included
Pipe centres: 100mm (10cm)
Wall to pipe centres: 61-76mm (6.1-7.6cm)
Distance from wall: 110-125mm (11-12.5cm)
Valves, Heating Elements and T piece connection [Optional]
Chrome pipe kit [Optional]
For mounting and heating element manual instructions download the PDF from the technical tab
Refer to technical diagram for complete technical dimensions
Guarantee: 5 years from the Reina against manufacturing faults.
Please Note:
The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.
Available Optional Products :
Available in different finishes Anthracite and Chrome
Different height options are available 772mm, 998mm, and 1412mm
Different types of heating elements are available
Valves
Chrome pipe kit
Heating Elements
T-Piece - For Dual Fuel Only
Liquid Filling For Electric Only.

Information Breakdown

Colour	Anthracite
Warranty/Guarantee	5 Years
Width	500
Orientation	Vertical
BTU Output	70°C - 1784
Watts	70°C - 523
Tapping / Pipe Centres	100
Valves Included	Sold Separately
Wall to Centre of Inlet	61-76
Brackets Included	Yes
Design	Modern
Installation Type	Wall Mounted

Compatible Valves

Technical Info

Reina Matera Chrome Steel Designer Radiator 500mm Wide

Download Installation Instruction PDF

Download Heating Element Manual Instructions PDF

Download Details Of Heating Elements PDF

PRODUCT VARIATIONS INFO & MFC CODE

Details For Anthracite Designer Radiator

Height	722mm	998mm	1412mm
Finish	Anthracite	Anthracite	Anthracite
MFC	RND-MTR5077A	RND-MTR5099A	RND-MTR5141A
Pipe Centres	100	100	100
Wall to Pipe centres	61-76	61-76	61-76
Wall Distance	110-125	110-125	110-125
Tube Quantity	6	8	11
Total Gap	5	7	10
Fuel Type	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel
Watts - Delta-70	523	706	980
BTU - Delta-70	1784	2408	3341
BTU - Delta-60	1462	1974	2739
BTU - Delta-50	1151	1554	2155
BTU - Delta-45	1002	1353	1877
BTU - Delta-40	866	1169	1622
BTU - Delta-35	725	979	1358
BTU - Delta-30	589	795	1103
BTU - Delta-25	229	310	429

Details For Chrome Designer Radiator

Height	722mm	998mm	1412mm
Finish	Chrome	Chrome	Chrome
MFC	RND-MTR5077	RND-MTR5099	RND-MTR5141
Pipe Centres	100	100	100
Wall to Pipe centres	61-76	61-76	61-76
Wall Distance	110-125	110-125	110-125
Tube Quantity	6	8	11
Total Gap	5	7	10
Fuel Type	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel
Watts - Delta-70	366	494	685
BTU - Delta-70	1248	1684	2337
BTU - Delta-60	1023	1380	1916
BTU - Delta-50	805	1086	1508
BTU - Delta-45	701	946	1313
BTU - Delta-40	606	817	1134
BTU - Delta-35	507	685	950
BTU - Delta-30	412	556	771
BTU - Delta-25	160	216	300

Detail For Heating Elements

Variant	MFC
Standard Heating Element	ELM/S
On/Off Touch Element	ELMOOT
LST Mini Round Thermostatic Element	ELMMRNLST
Mini Round Thermostatic Element	ELMMRN
Touch Thermostatic Heating Element	ELMTCH
LST Weekly Thermostatic Element	ELMWKYLST
Weekly Thermostatic Element	ELMWKY

Details For Accessories

Type	MFC
T-Piece - For Dual Fuel Only	ACCS/TP
Liquid Filling For Electric Only	A/FILLING1
