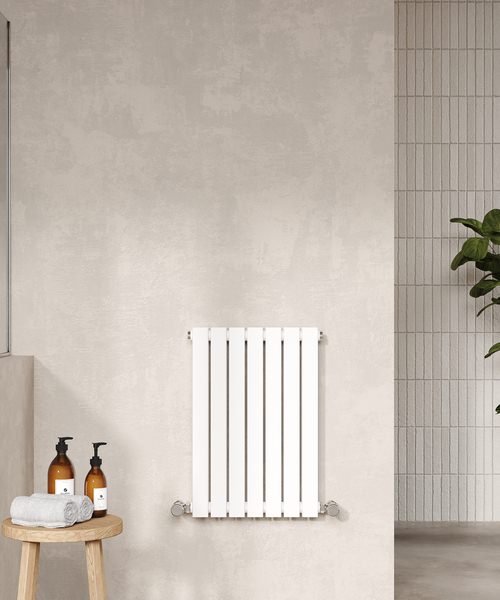

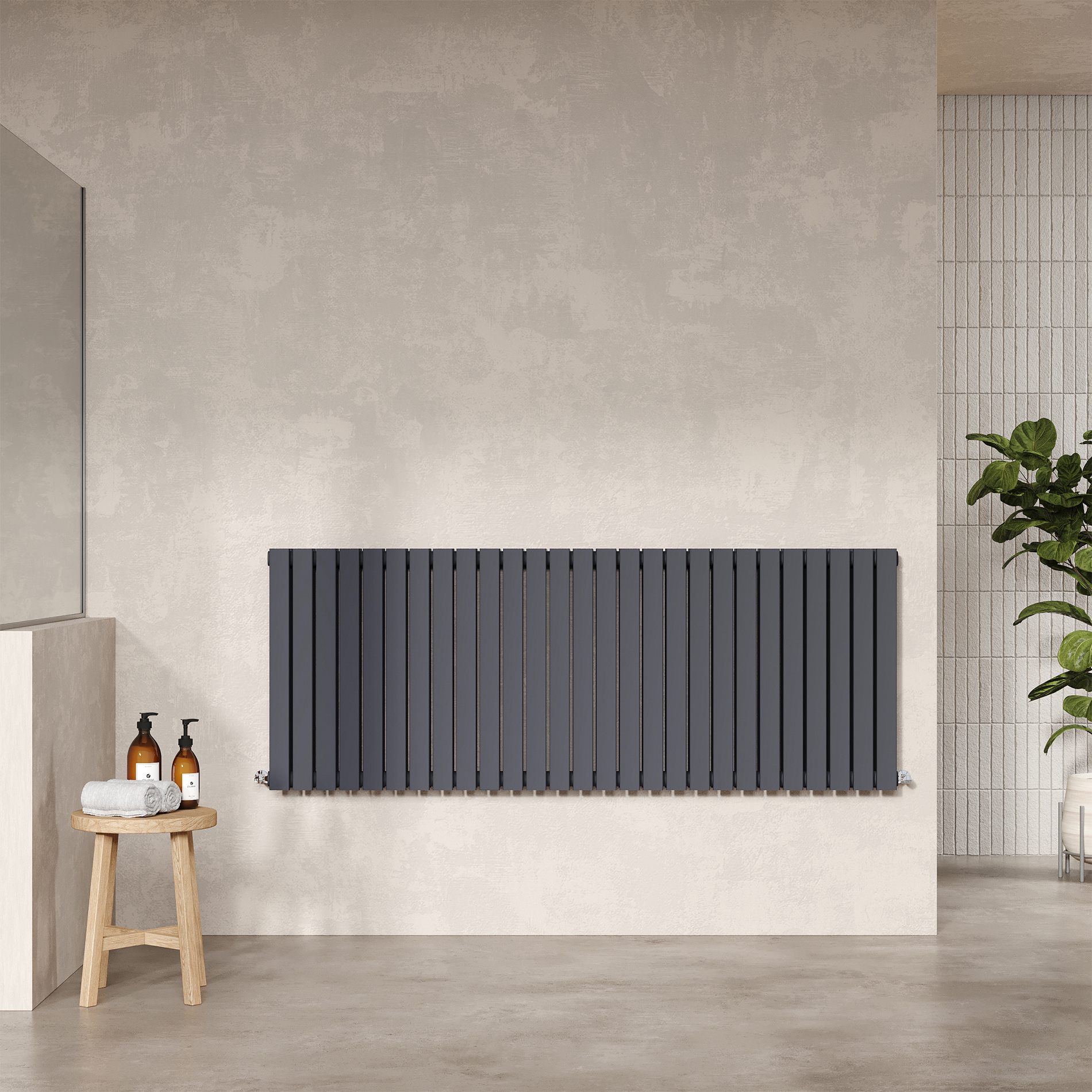

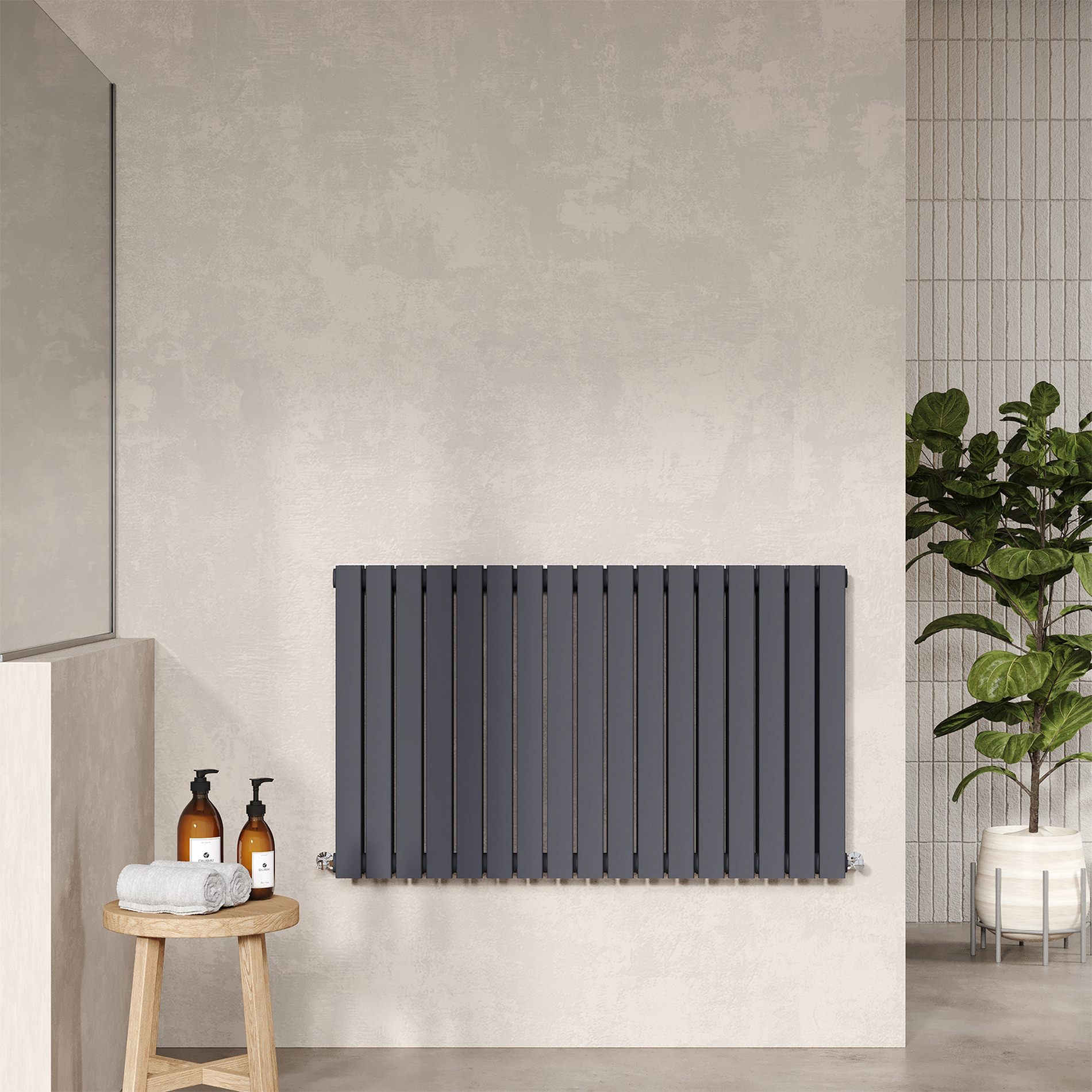

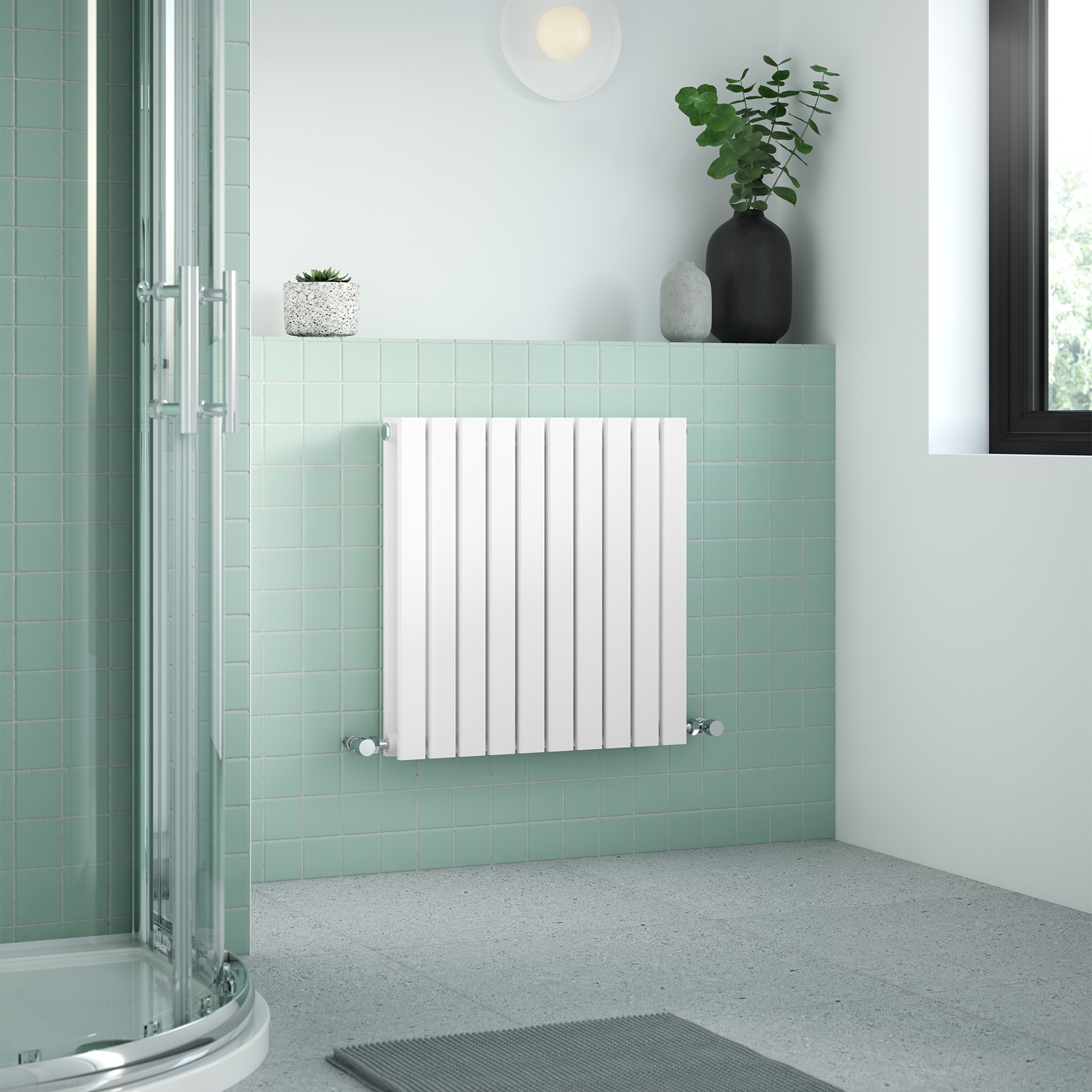

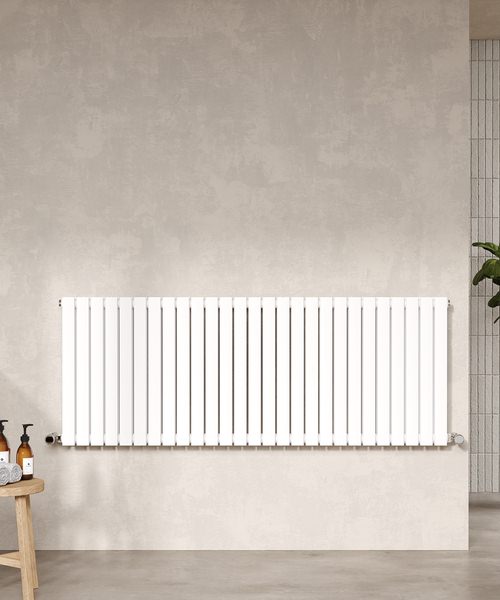

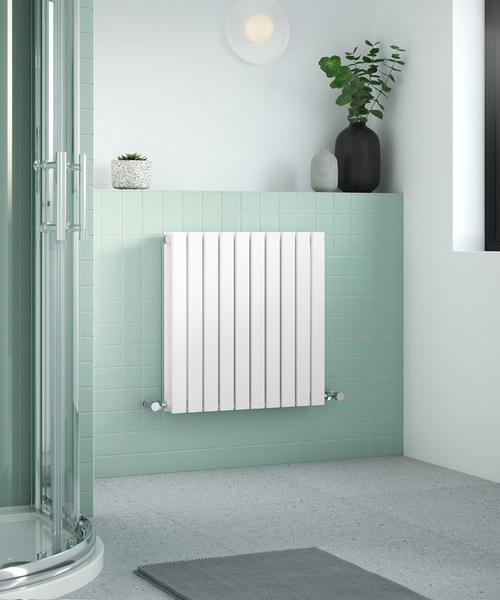

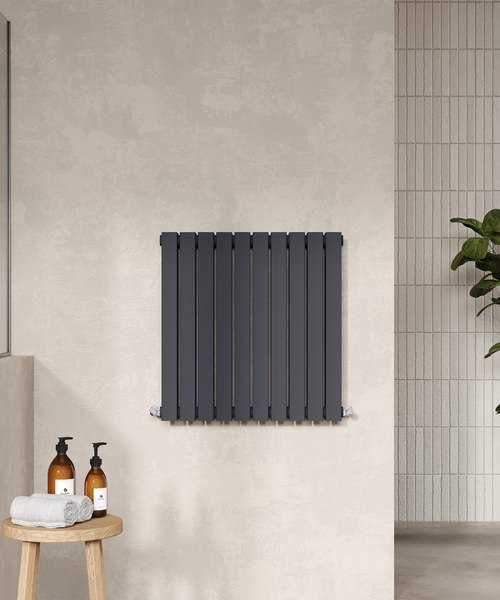

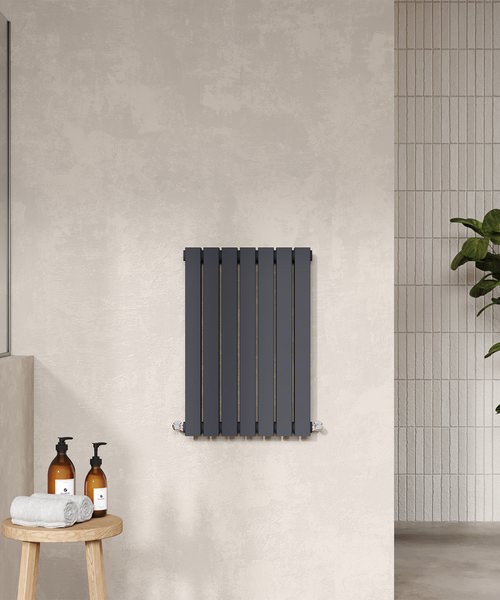

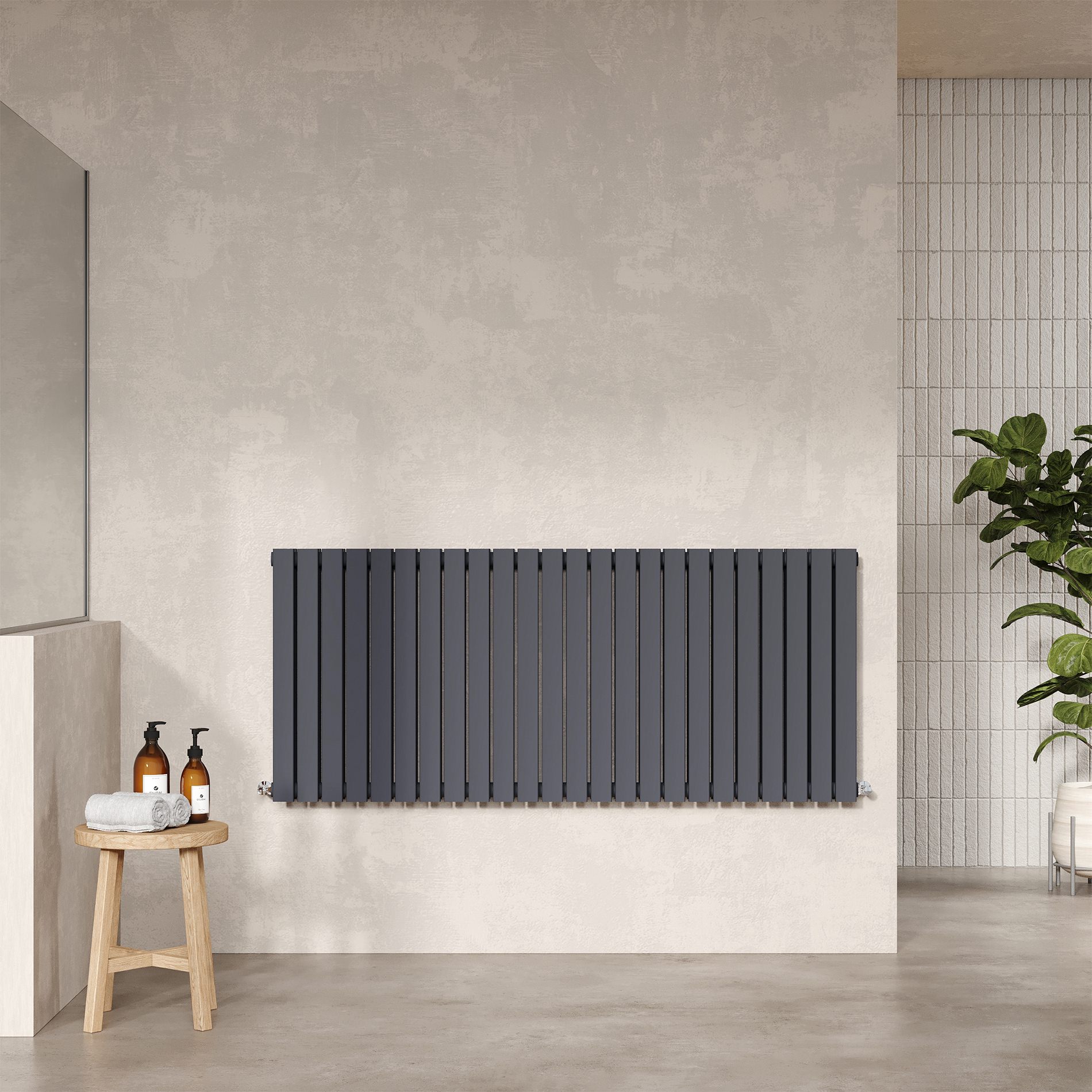

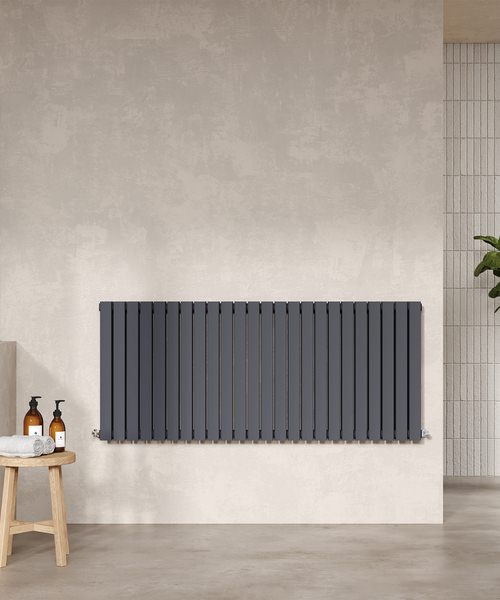

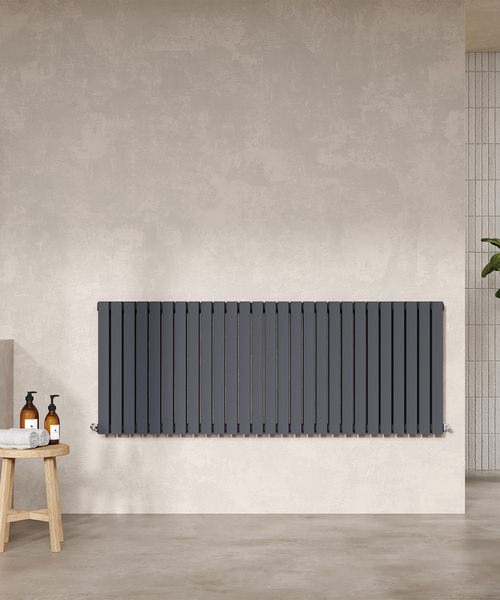

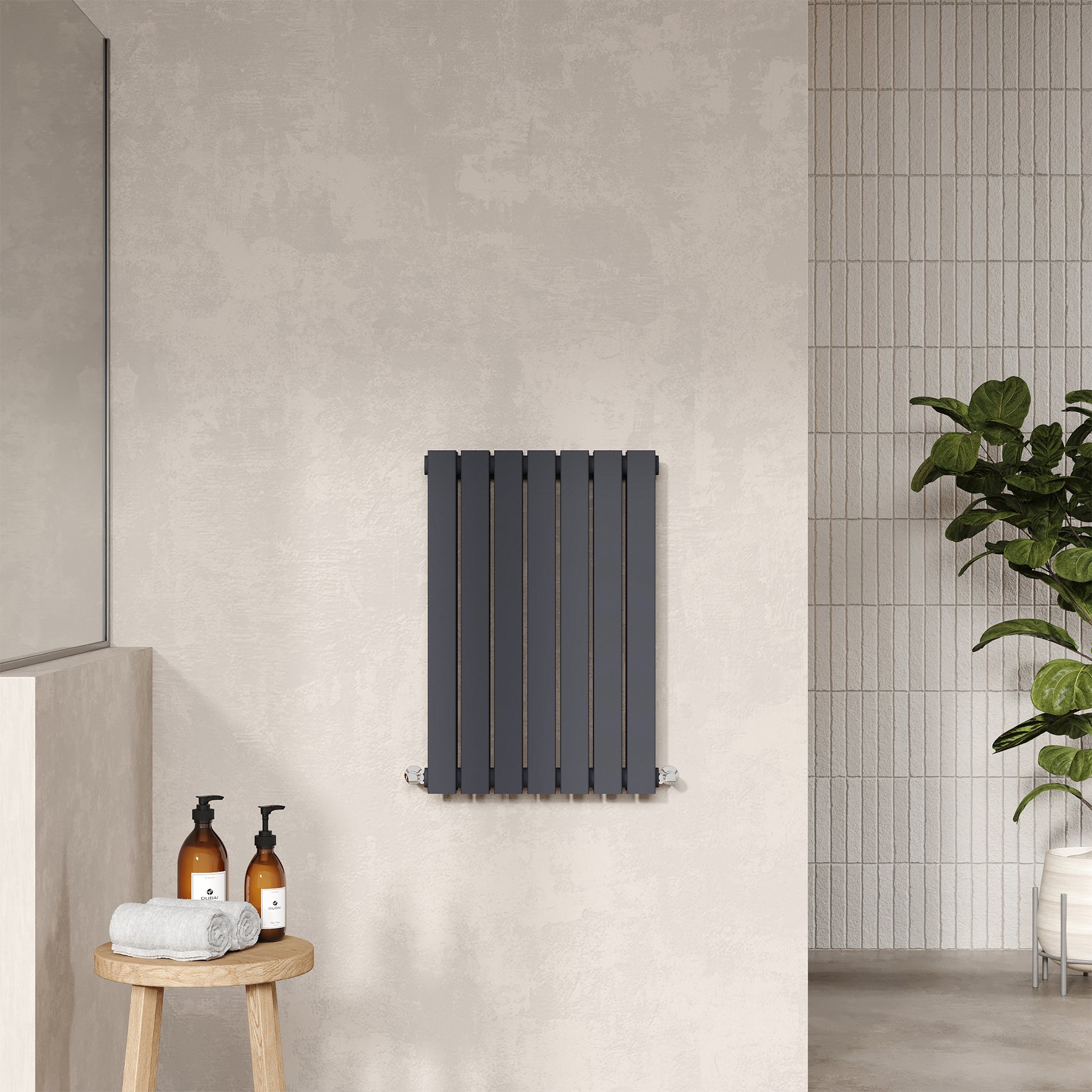

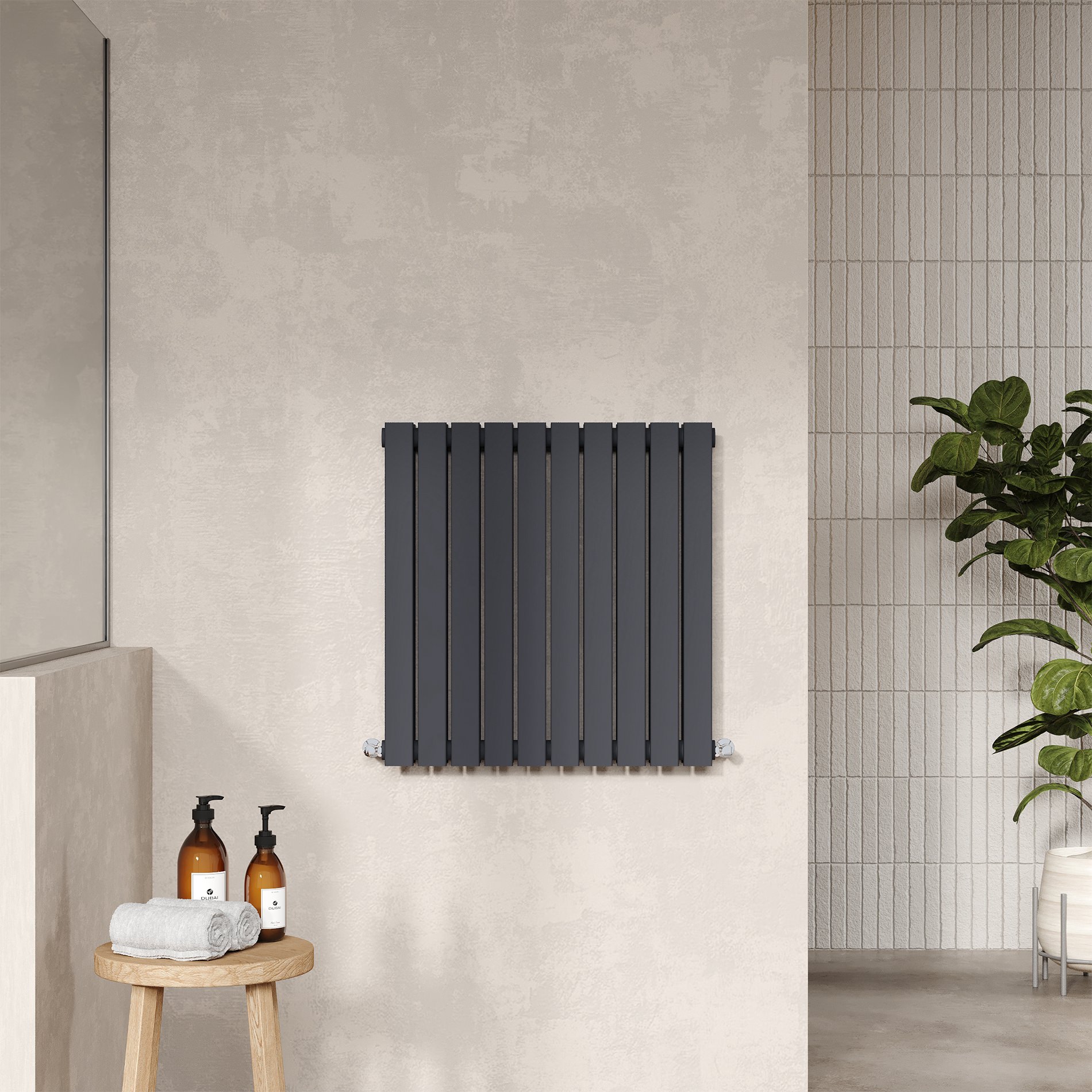

Hudson Reed Sloane Double Panel Horizontal Radiator 600mm High

Hudson Reed Sloane Double Panel Horizontal Radiator 600mm High

Name: Hudson Reed Sloane Double Panel Horizontal Radiator 600mm High
Brand: Hudson Reed
SKU: HLA54D
Price: 112 GBP
Availability: InStock

More Width And Finishes Available

No Rating

Write a Review

Rate This:

MFC Code : HLA54D

Product Code : 61905

Delivery: £34.95

£112.00

RRP : £280.00

SELECT Width Step 1

412 [mm]
£111.99
586 [mm]
£150.00
992 [mm]
£238.40
1398 [mm]
£324.39
1572 [mm]
£345.59

SELECT Finish Step 2

qty :

Compatible Valves Read More About the Product

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

None
OP-144344 - Magnetic Robe Hook + £21.72 [ View Image ]
OP-144345 - Radiator Hook + £14.19 [ View Image ]
OP-144346 - Magnetic Towel Rail + £50.59 [ View Image ]
OP-144347 - Robe Hook for Radiator + £9.79 [ View Image ]
OP-144348 - Towel Rail for Radiator + £34.58 [ View Image ]

About This Product

Available in different widths and finishes [Refer Option]
Double panel horizontal radiator
Dimension: Depth 72mm (7.2cm) x Height 600mm (60cm)
Fixing screws and brackets included
Constructed from using steel material
Installation type: wall mounted
Tappings are 1/2" British standard pipe
Wall to centre of tappings: 51
Type of heat: water
No. of heat setting: 1
Projection from wall: 110mm
After installing any new radiators, when refilling the system it is recommended a suitable inhibitor is used
For more details refer Production Variation Info & MFC Code tab shown below
Valves shown in the image are not included - sold separately

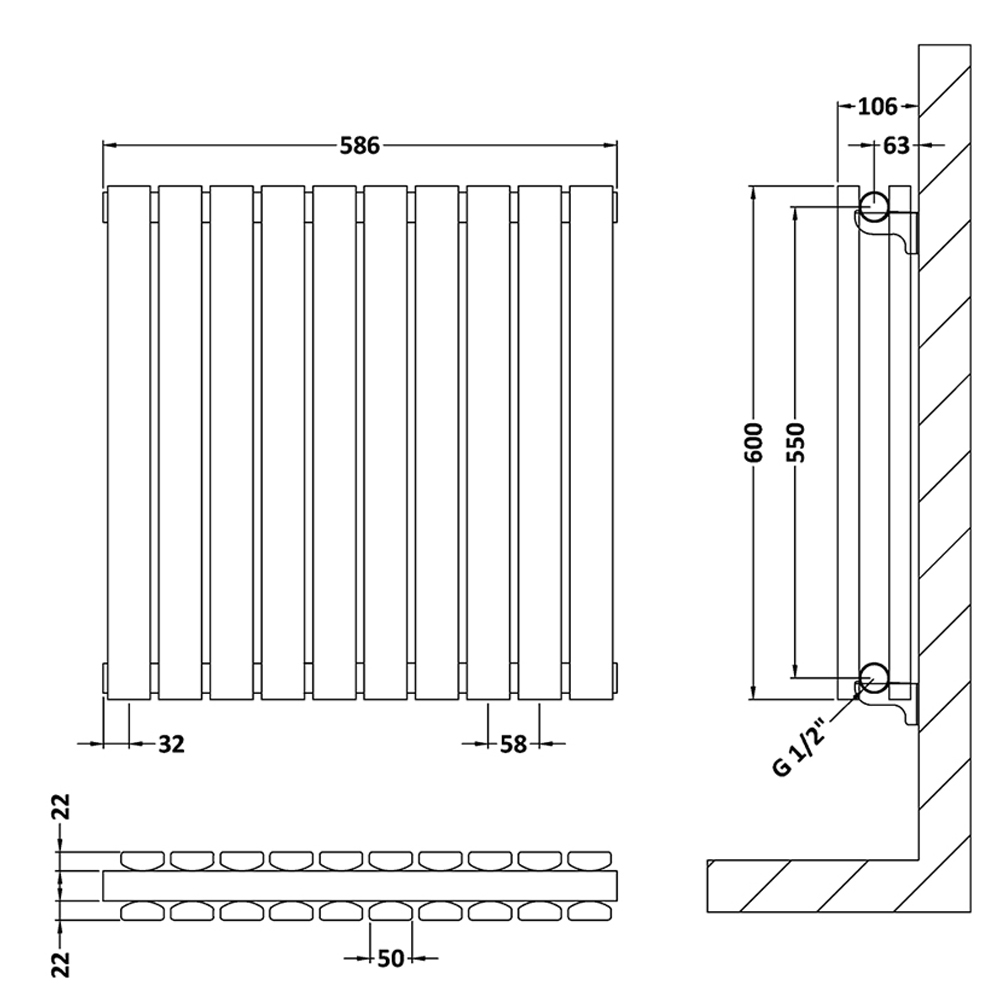

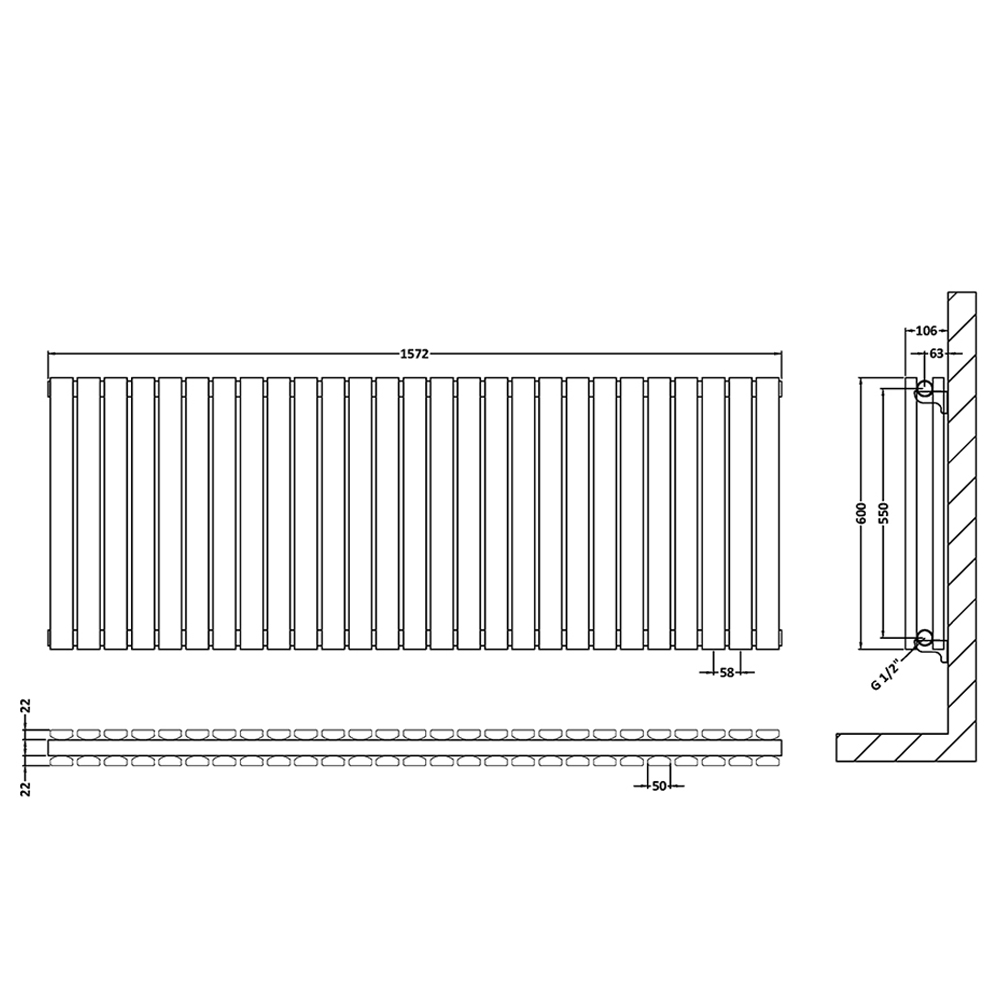

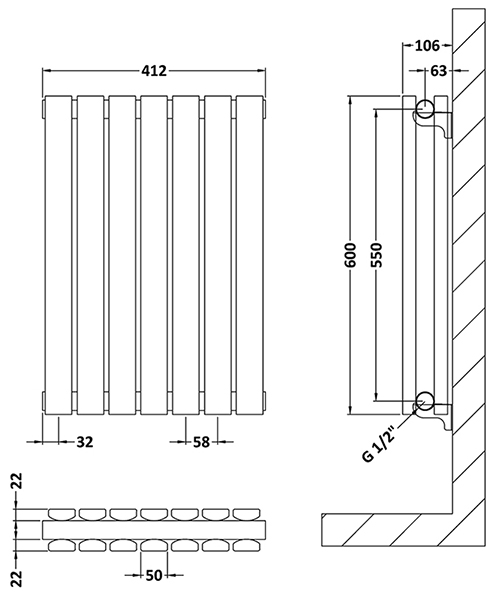

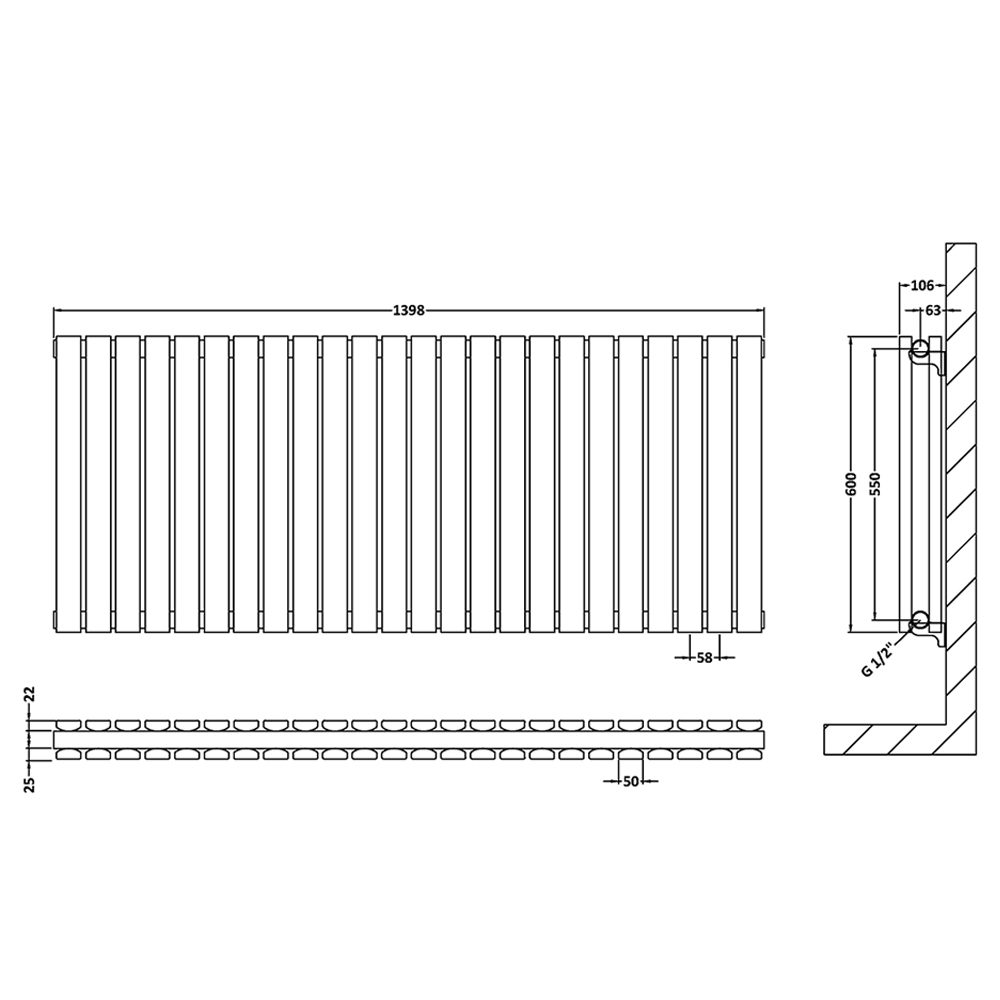

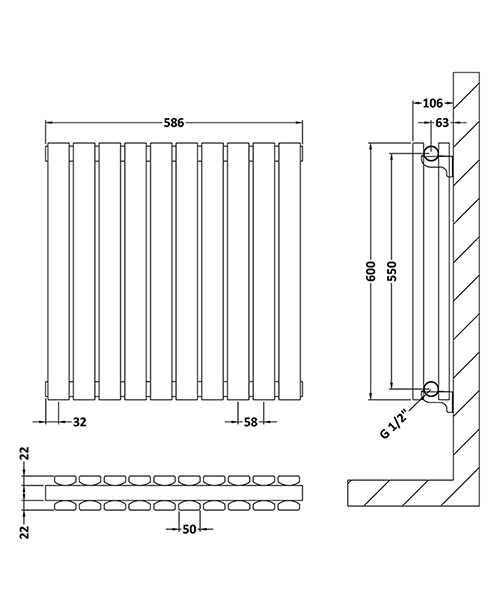

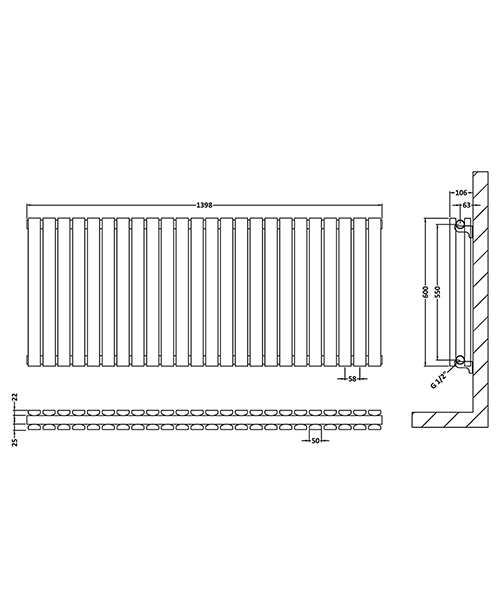

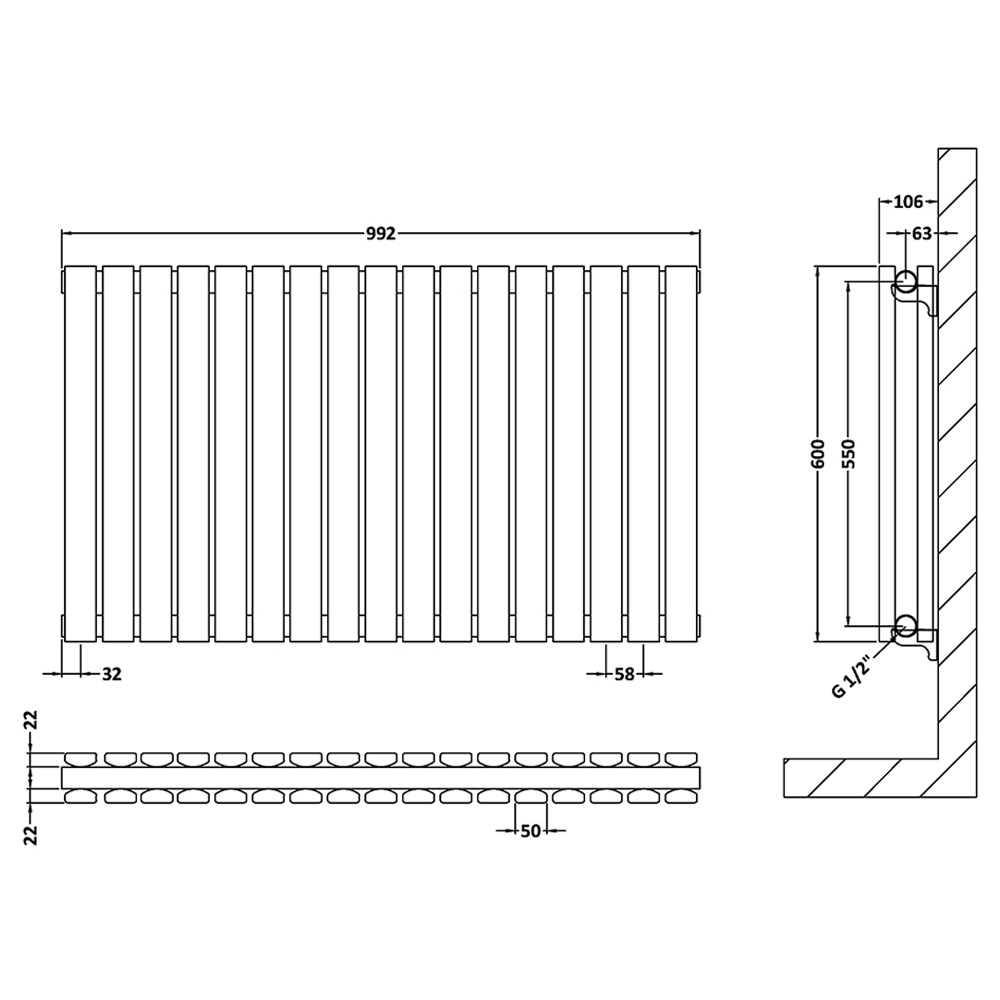

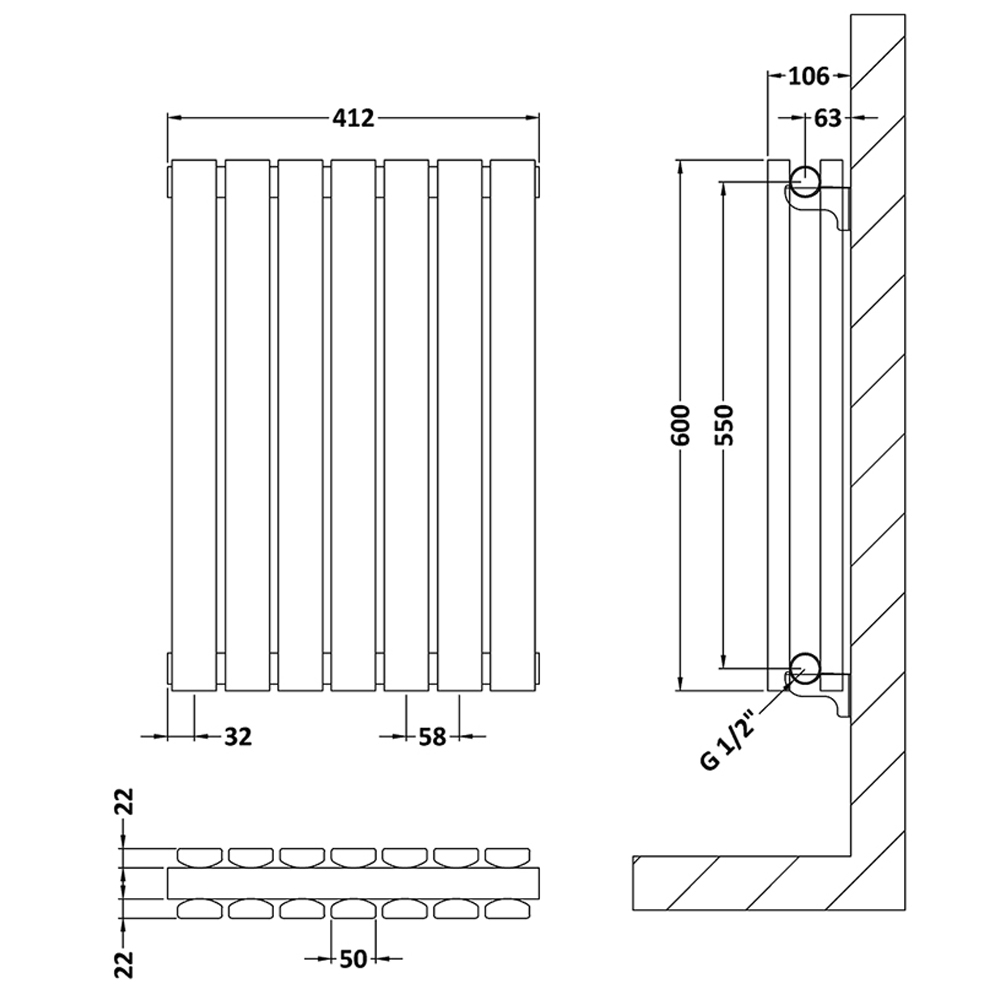

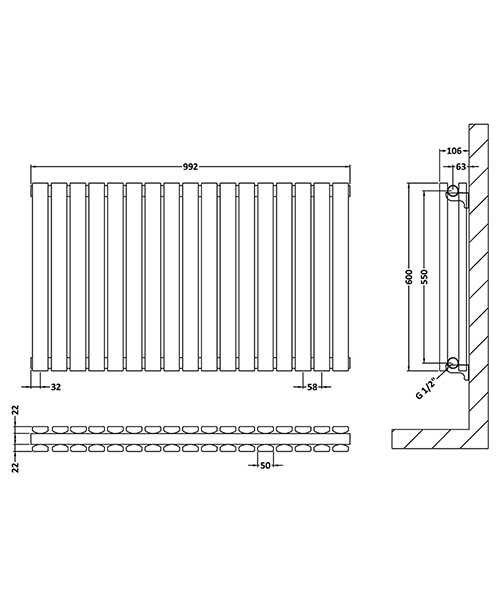

Refer technical drawing for more technical dimensions
For fitting instruction download PDF from technical tab
Guarantee: 5 years from Hudson Reed against manufacturing defects.
Available Optional Products:
Radiator widths - 412mm (412cm), 586mm (58.6cm), 992mm (99.2cm), 1398mm (139.8cm) and 1572mm (157.2cm)
Choice of finishes - Anthracite: RAL Number - 7016 and High Gloss White: RAL Number - 9016
Radiator valves
Robe hook.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Compatible Valves

Technical Info

Download Technical Data Sheet PDF

Download Installation Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Available Sizes Along With Manufacturing Code

Title	Width 412mm	Width 586mm	Width 992mm	Width 1398mm	Width 1572mm
Anthracite Finish - RAL Number: 7016 - MFC	HLA54D	HLA55D	HLA56D	HLA59D	HLA60D
High Gloss White Finish - RAL Number: 9016 - MFC	HLW54D	HLW55D	HLW56D	HLW59D	HLW60D
Number Of Sections / Panels	14	20	34	48	54
BTU - 30 Deg. C	750	965	1822	2573	2894
Thermal Output - 30 Deg. C - Watts	220	283	534	754	848
BTU - 50 Deg. C	1449	1863	3519	4968	5589
Thermal Output - 50 Deg. C - Watts	425	546	1031	1456	1638
BTU - 60 Deg. C	1836	2360	4459	6294	7081
Thermal Output - 60 Deg. C - Watts	538	692	1307	1845	2075
