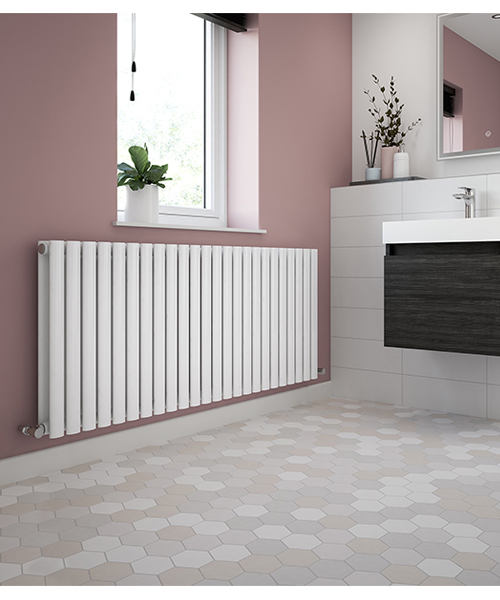

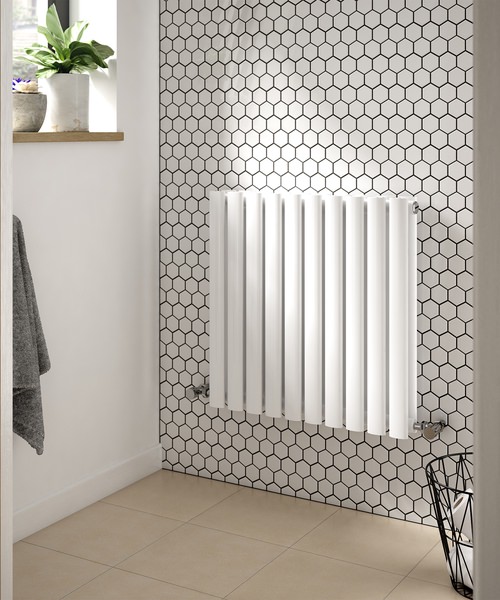

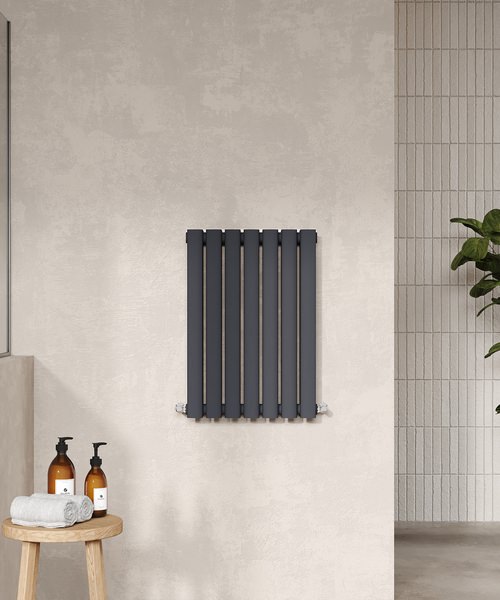

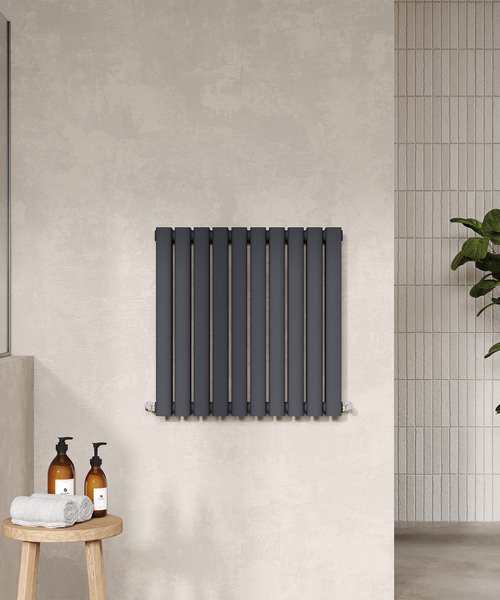

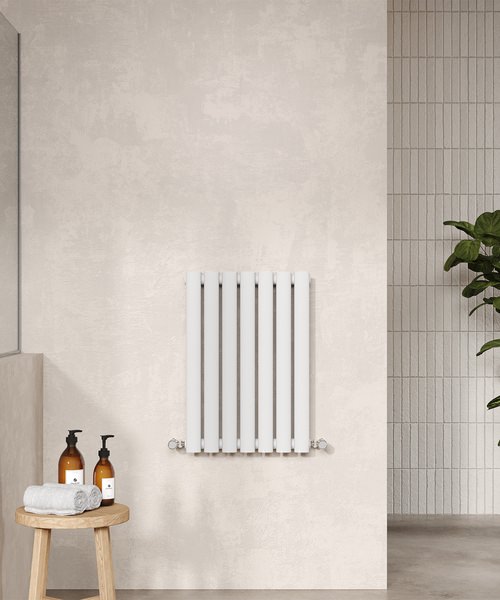

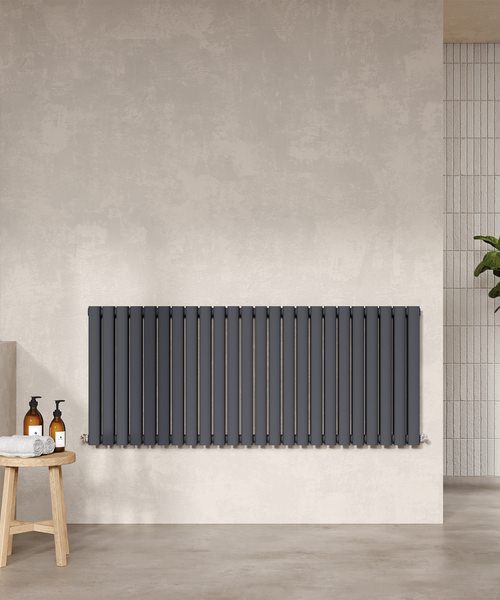

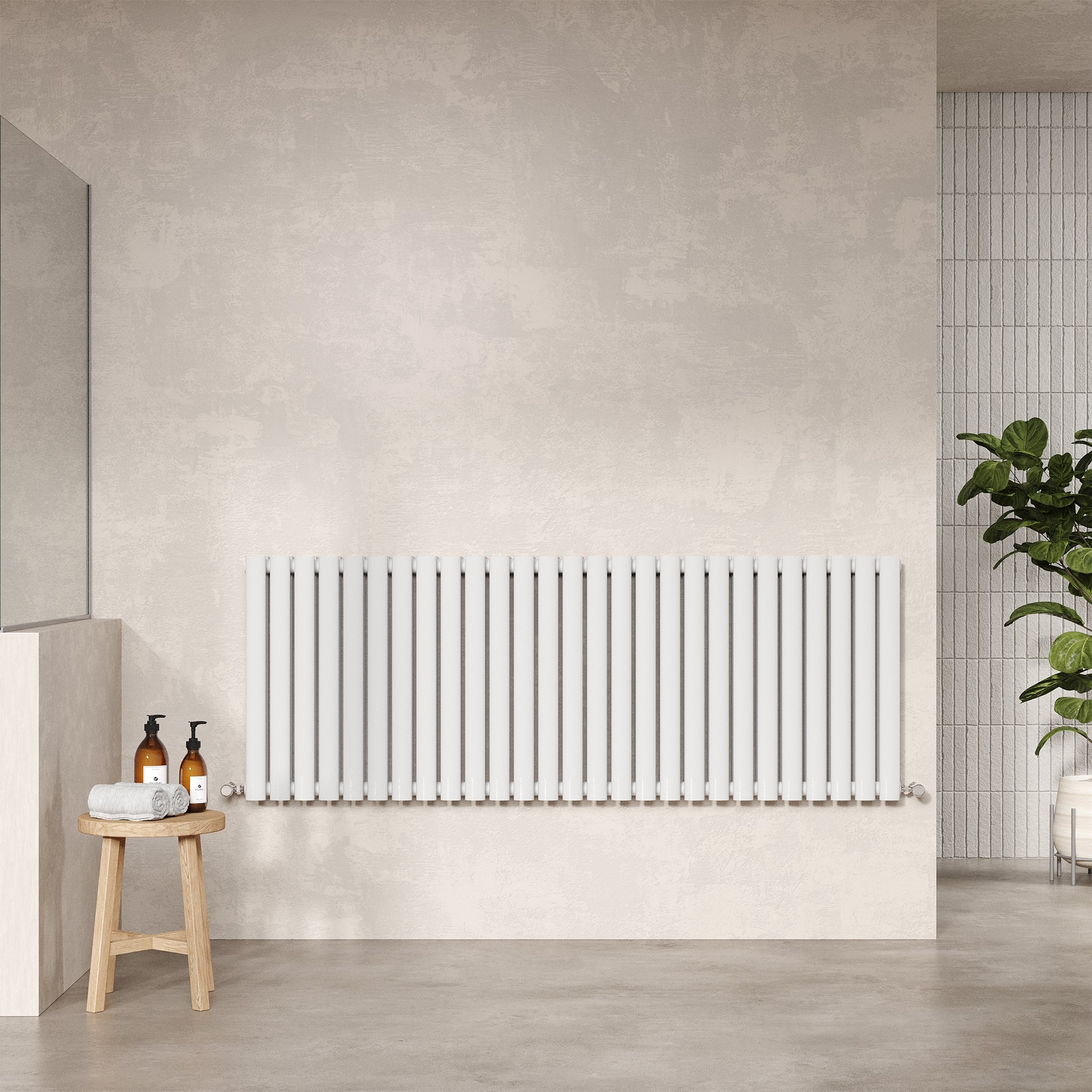

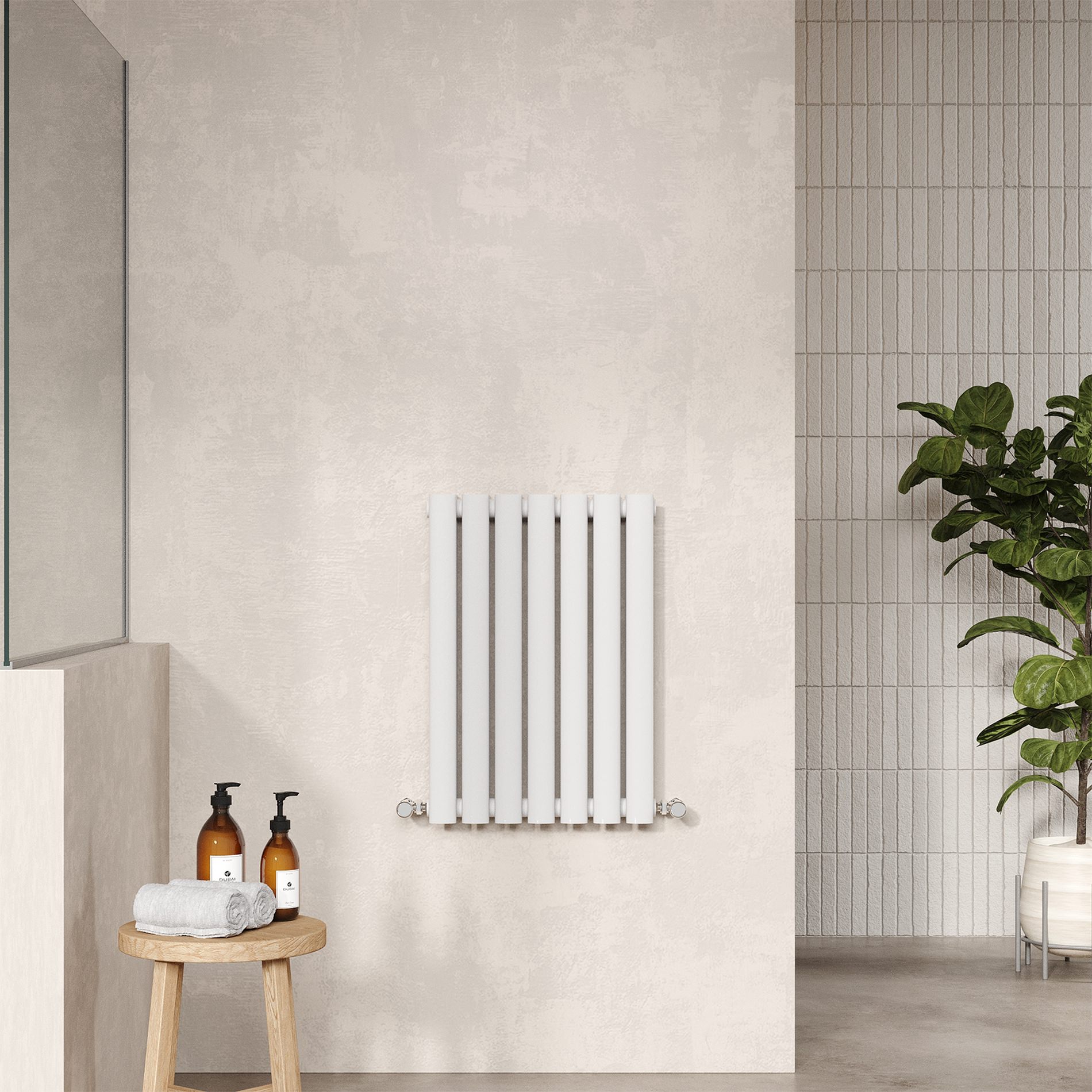

Hudson Reed Revive Double Panel Horizontal Radiator 600mm High

Name: Hudson Reed Revive Double Panel Horizontal Radiator 600mm High
Brand: Hudson Reed
SKU: HL337D
Price: 98 GBP
Availability: InStock

More Width And Finishes Available

No Rating

Write a Review

Rate This:

MFC Code : HL337D

Product Code : 61903

Delivery: £34.95

£98.00

RRP : £245.00

SELECT Width Step 1

412 [mm]
£98.00
586 [mm]
£131.20
992 [mm]
£205.59
1398 [mm]
£289.99
1572 [mm]
£324.39

SELECT Finish Step 2

qty :

Compatible Valves Read More About the Product

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

None
OP-144344 - Magnetic Robe Hook + £21.72 [ View Image ]
OP-144345 - Radiator Hook + £14.19 [ View Image ]
OP-144346 - Magnetic Towel Rail + £50.59 [ View Image ]
OP-144347 - Robe Hook for Radiator + £9.79 [ View Image ]
OP-144348 - Towel Rail for Radiator + £34.58 [ View Image ]

About This Product

Available in different widths and finishes [Refer Option]
Double panel horizontal radiator
Dimension: Depth 78mm (7.8cm) x Height 600mm (60cm)
Fixing screws and brackets included
Constructed from using steel material
Installation type: wall mounted
Tappings are 1/2" British standard pipe
Wall to centre of tappings: 51
Type of heat: water
No. of heat setting: 1
Projection from wall: 110mm
After installing any new radiators, when refilling the system it is recommended a suitable inhibitor is used
For more details refer Production Variation Info & MFC Code tab shown below
Valves shown in the image are not included - sold separately

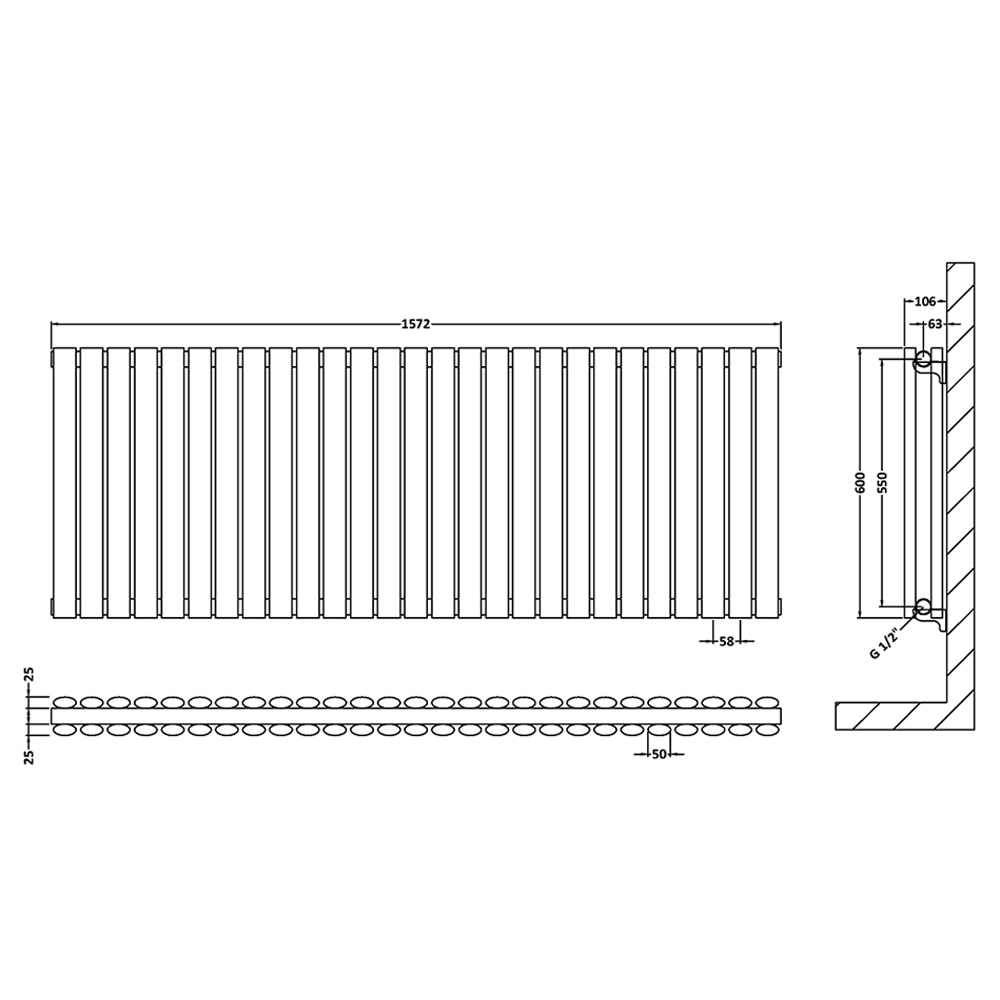

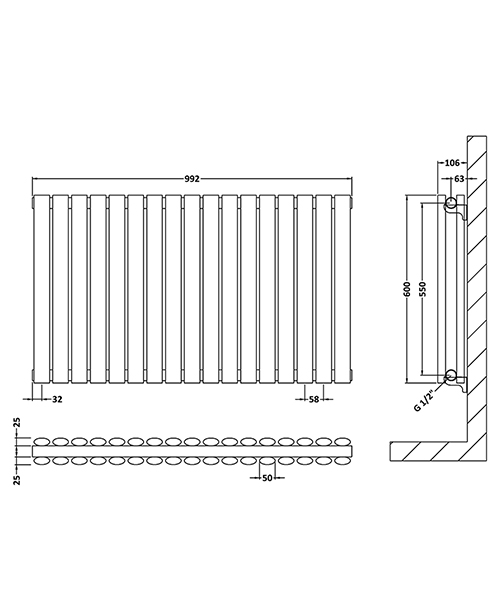

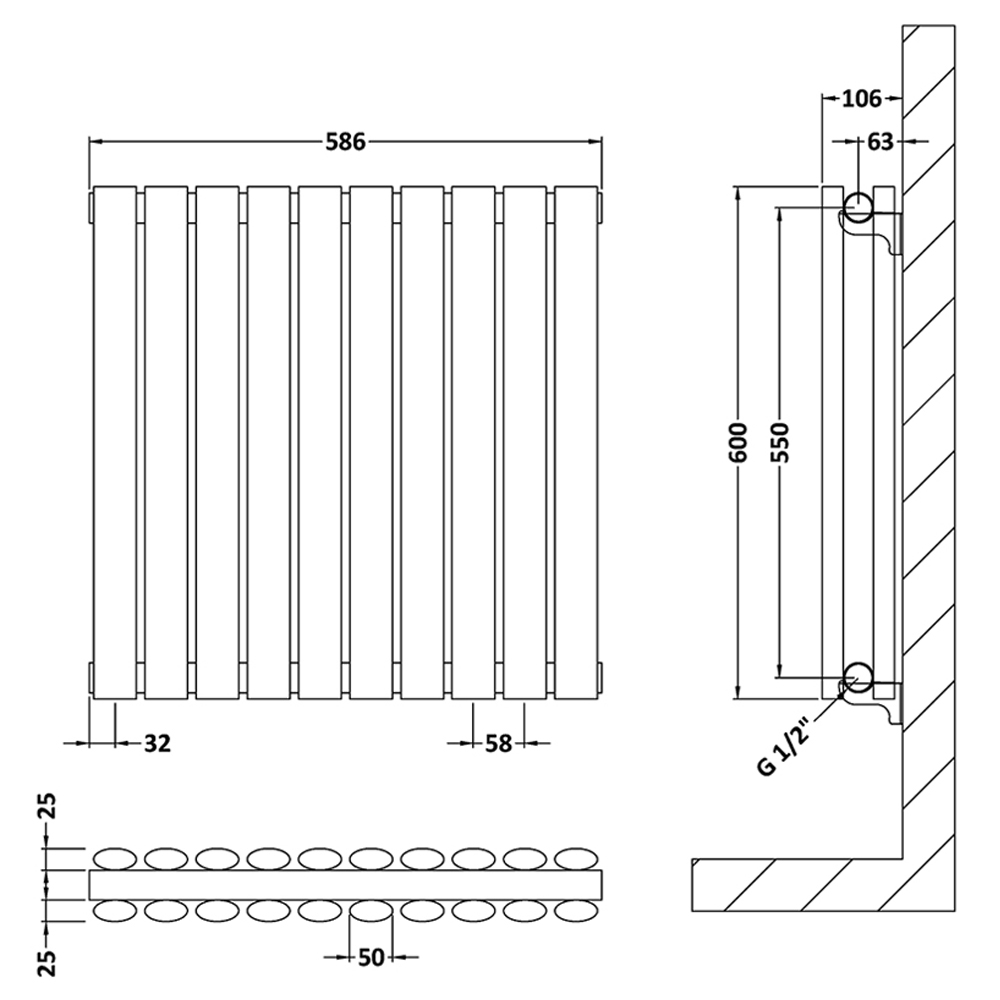

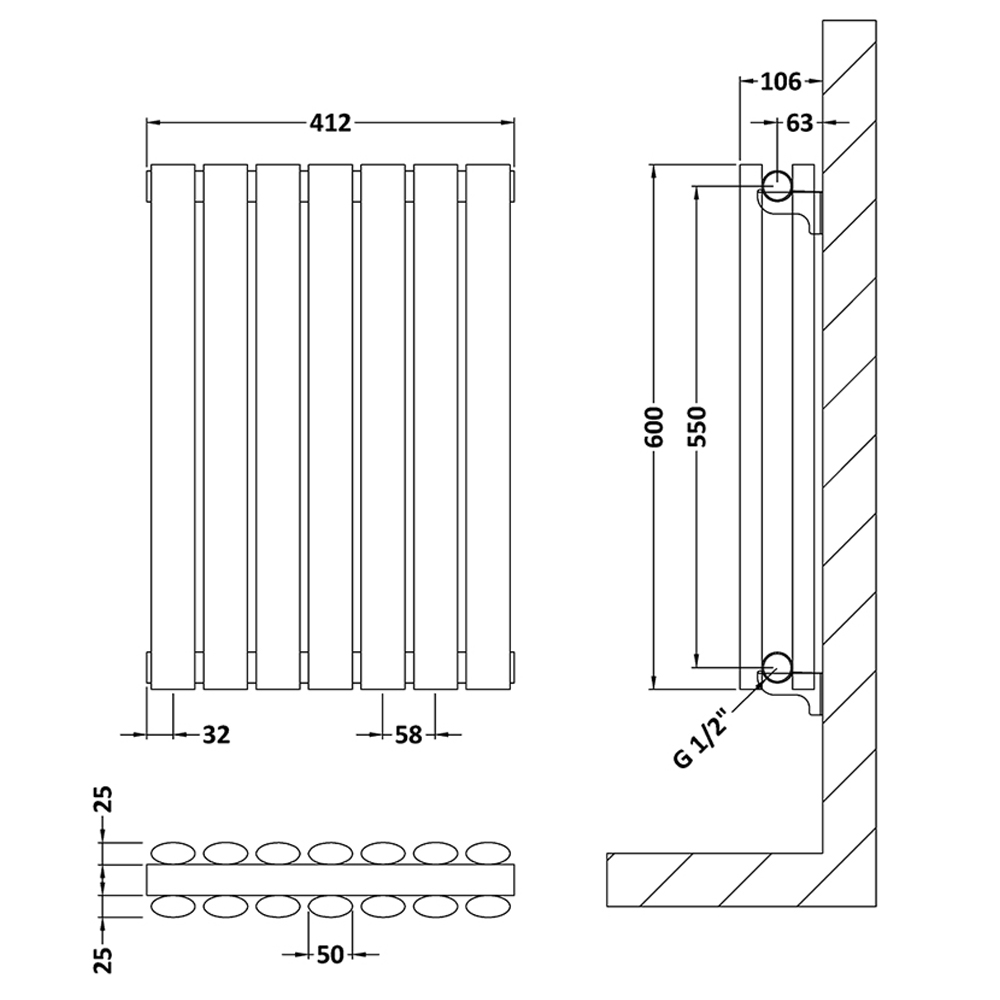

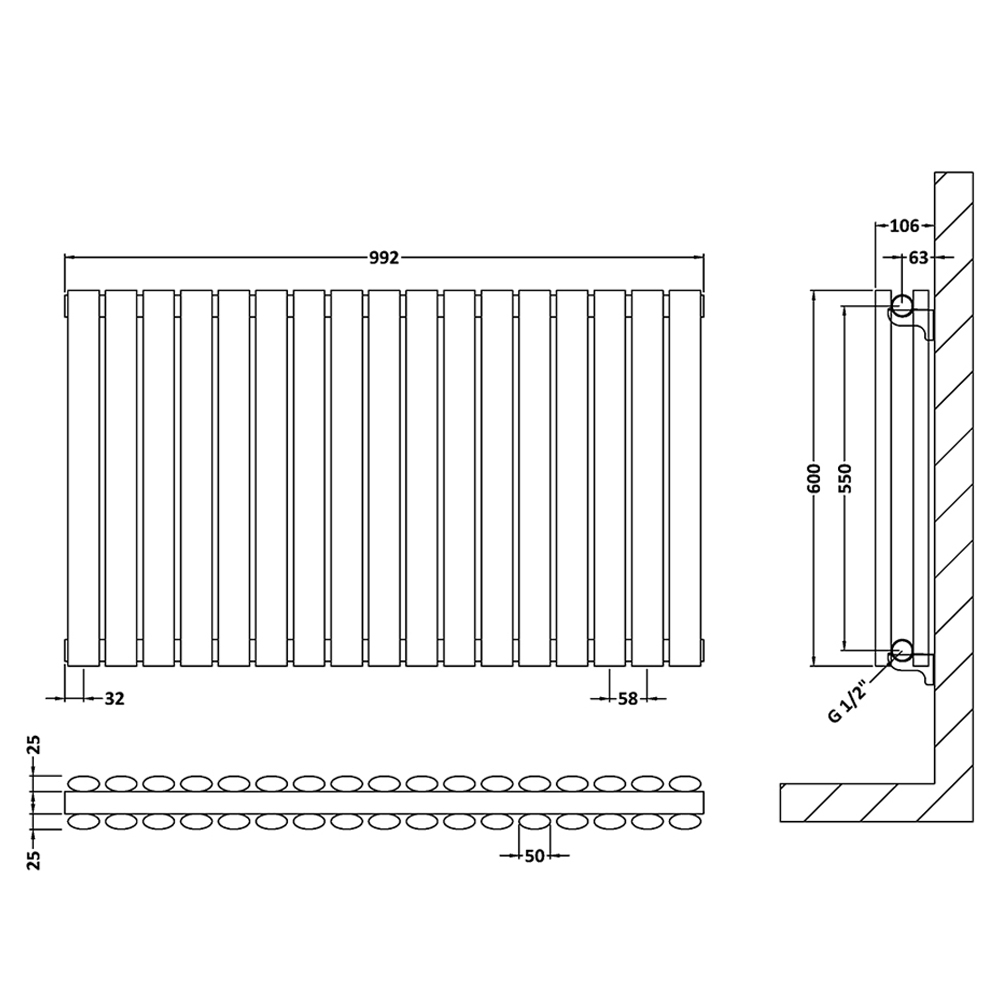

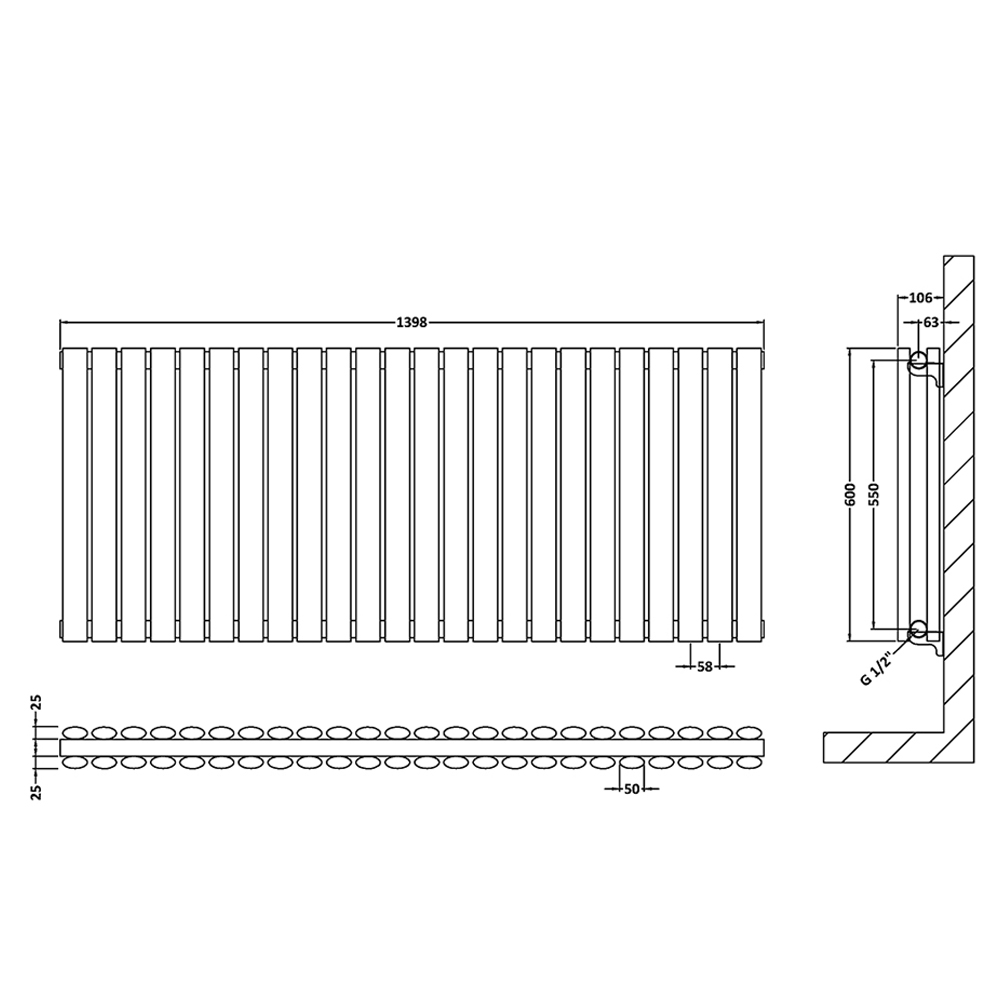

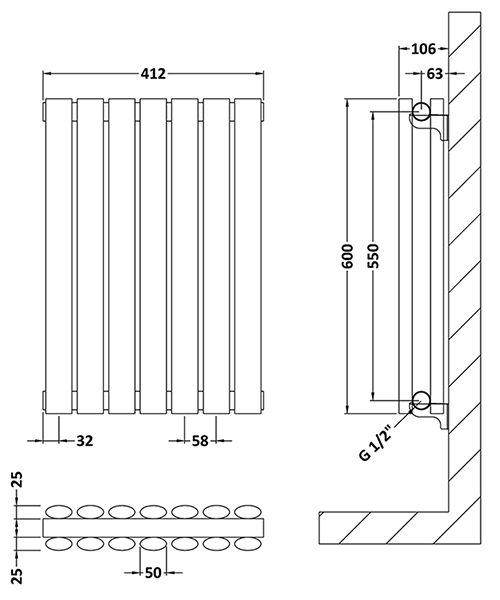

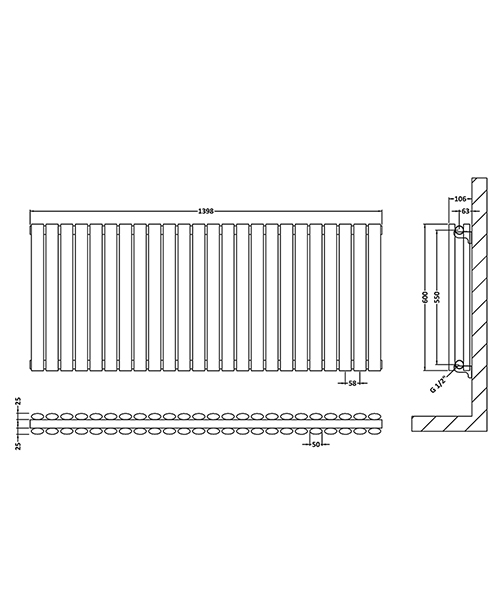

Refer technical drawing for more technical dimensions
For fitting instruction download PDF from technical tab
Guarantee: 5 years from Hudson Reed against manufacturing defects.
Available Optional Products:
Radiator widths - 412mm (412cm), 586mm (58.6cm), 992mm (99.2cm), 1398mm (139.8cm) and 1572mm (157.2cm)
Choice of finishes - High Gloss White: RAL Number - 9016 and Anthracite: RAL Number - 7016
Radiator valves
Robe hook.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Compatible Valves

Technical Info

Hudson Reed Revive Double Panel Horizontal Radiator 600mm High

Download Technical Data Sheet PDF

Download Installation Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Available Sizes Along With Manufacturing Code

Title	Width 412mm	Width 586mm	Width 992mm	Width 1398mm	Width 1572mm
High Gloss White Finish - RAL Number: 9016 - MFC	HL337D	HL338D	HL339D	HL340D	HL342D
Anthracite Finish - RAL Number: 7016 - MFC	HLA37D	HLA38D	HLA39D	HLA40D	HLA42D
Number Of Sections / Panels	14	20	34	48	54
BTU - 30 Deg. C	800	1144	1944	2744	3088
Thermal Output - 30 Deg. C - Watts	235	335	570	804	905
BTU - 50 Deg. C	1546	2209	3755	5300	5963
Thermal Output - 50 Deg. C - Watts	453	647	1100	1554	1748
BTU - 60 Deg. C	1958	2798	4756	6714	7553
Thermal Output - 60 Deg. C - Watts	574	820	1394	1968	2214
