Hudson Reed Revive Single Panel Horizontal Radiator 600mm High small Image 4

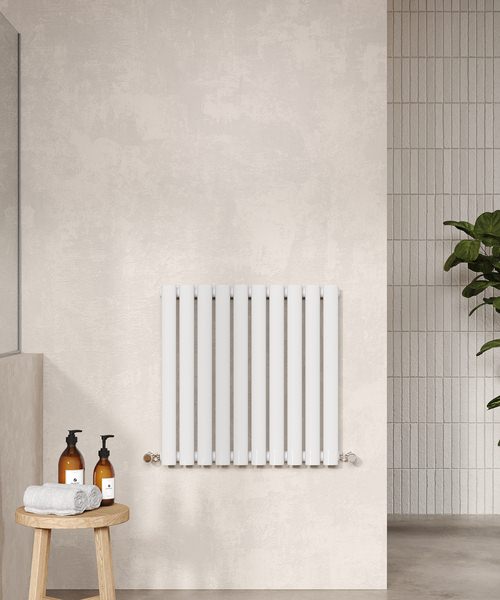

Hudson Reed Revive Single Panel Horizontal Radiator 600mm High

Additional image for 61902 hudsonreed - HL337

Hudson Reed Revive Single Panel Horizontal Radiator 600mm High

Name: Hudson Reed Revive Single Panel Horizontal Radiator 600mm High
Brand: Hudson Reed
SKU: HL337
Price: 70 GBP
Availability: InStock

More Width And Finishes Available

No Rating

Write a Review

Rate This:

MFC Code : HL337

Product Code : 61902

Delivery: £34.95

£70.00

RRP : £175.00

SELECT Width Step 1

412 [mm]
£70.00
586 [mm]
£92.80
992 [mm]
£142.00

SELECT Finish Step 2

qty :

Compatible Valves Read More About the Product

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

None
OP-144344 - Magnetic Robe Hook + £21.72 [ View Image ]
OP-144345 - Radiator Hook + £14.19 [ View Image ]
OP-144346 - Magnetic Towel Rail + £50.59 [ View Image ]
OP-144347 - Robe Hook for Radiator + £9.79 [ View Image ]
OP-144348 - Towel Rail for Radiator + £34.58 [ View Image ]

About This Product

Available in different widths and finishes [Refer Option]
Single panel horizontal radiator
Dimension: Depth 55mm (5.5cm) x Height 600mm (60cm)
Fixing screws and brackets included
Constructed from using steel material
Installation type: wall mounted
Tappings are 1/2" British standard pipe
Wall to centre of tappings: 51
Type of heat: water
No. of heat setting: 1
Projection from wall: 110mm
After installing any new radiators, when refilling the system it is recommended a suitable inhibitor is used
For more details refer Production Variation Info & MFC Code tab shown below
Valves shown in the image are not included - sold separately

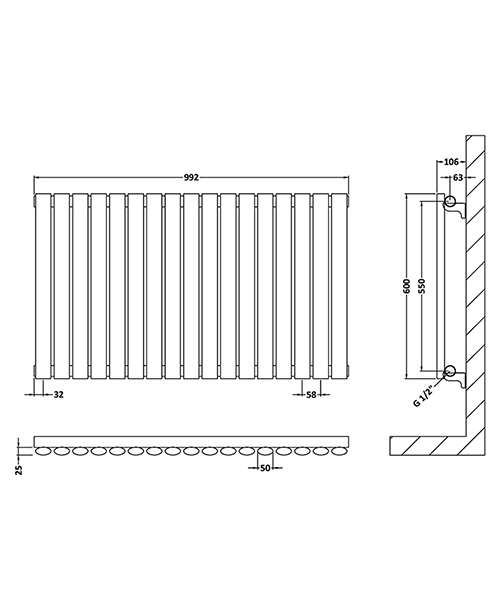

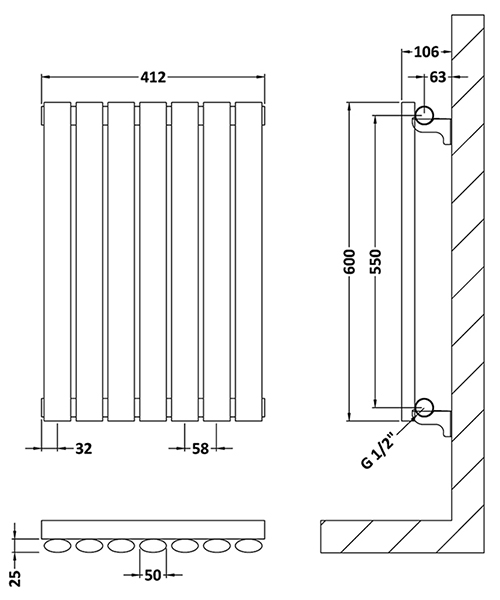

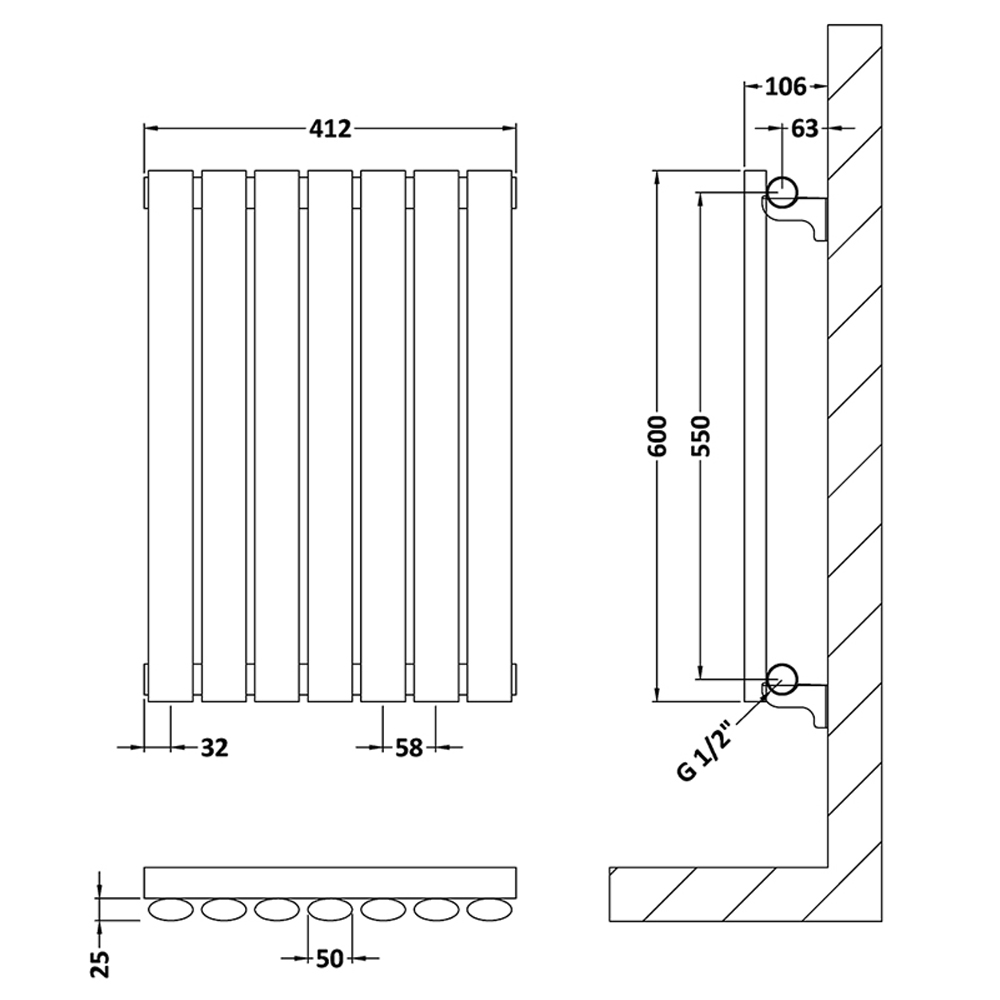

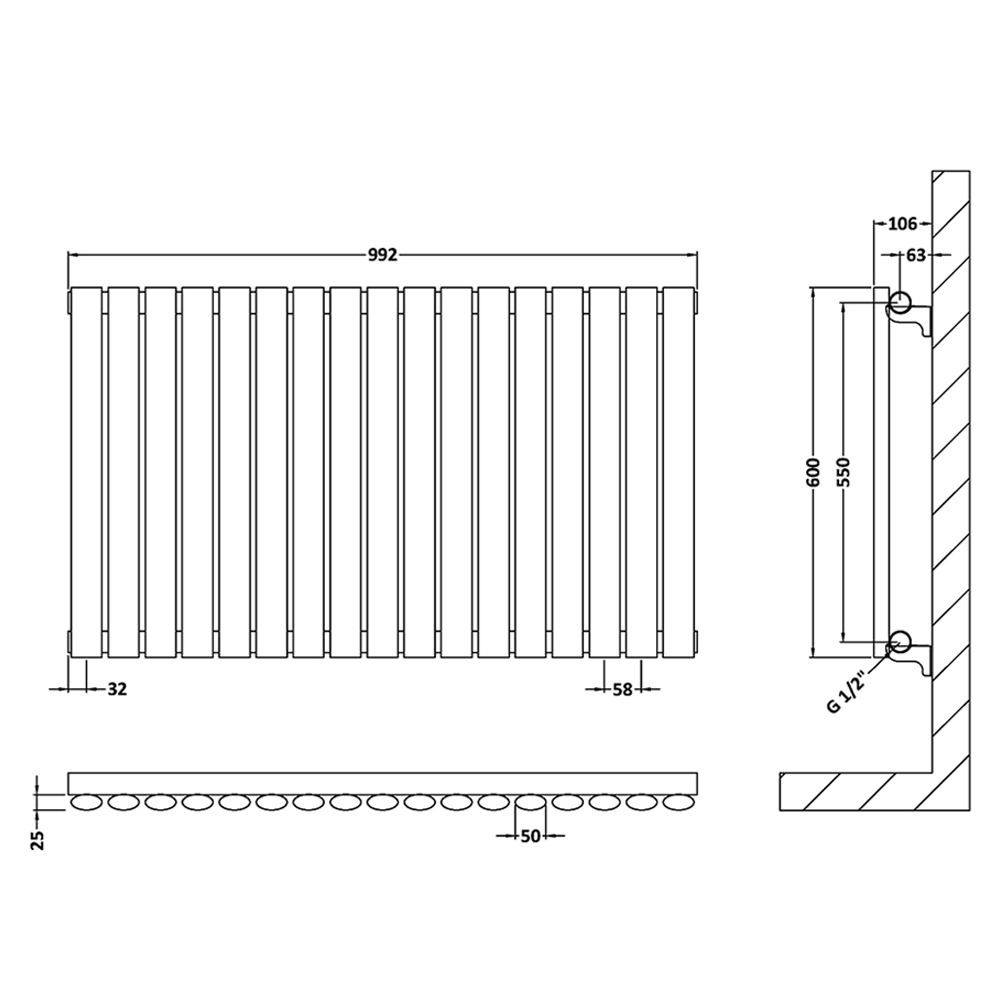

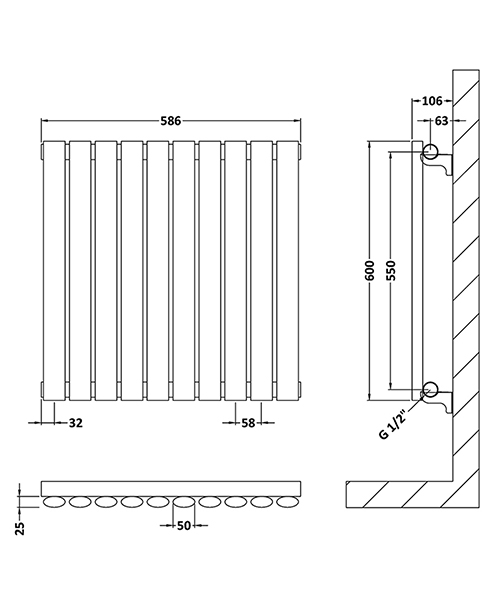

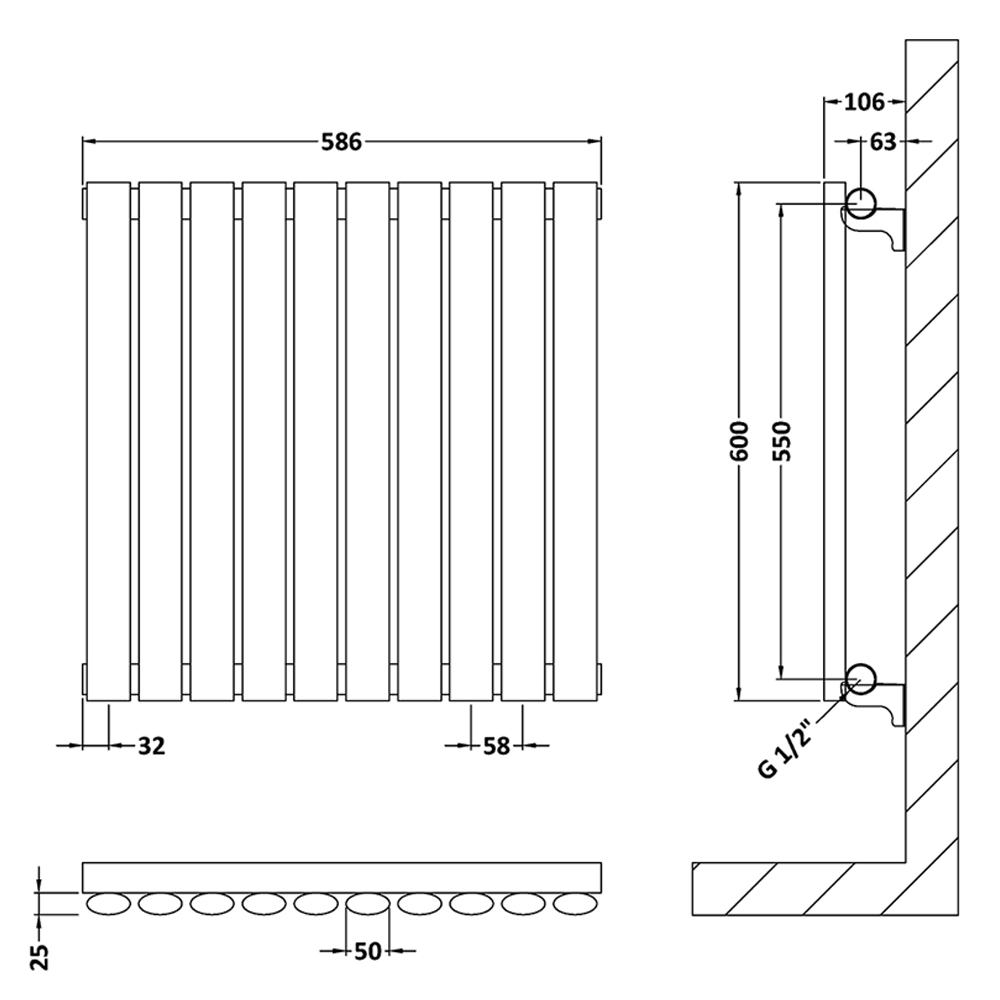

Refer technical drawing for more technical dimensions
For fitting instruction download PDF from technical tab
Guarantee: 5 years from Hudson Reed against manufacturing defects.
Available Optional Products:
Radiator widths - 412mm (412cm), 586mm (58.6cm) and 992mm (99.2cm)

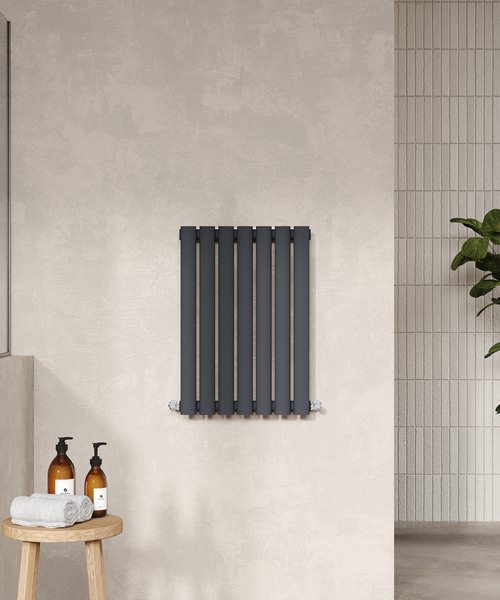

Choice of finishes - High Gloss White: RAL Number - 9016 and Anthracite: RAL Number - 7016
Radiator valves
Robe hook.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Compatible Valves

Technical Info

Download Technical Data Sheet PDF

Download Installation Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Available Sizes Along With Manufacturing Code

Title	Width 412mm	Width 586mm	Width 992mm
High Gloss White Finish - RAL Number: 9016 - MFC	HL337	HL338	HL339
Anthracite Finish - RAL Number: 7016 - MFC	HLA37	HLA38	HLA39
Number Of Sections / Panels	7	10	17
BTU - 30 Deg. C	534	764	1298
Thermal Output - 30 Deg. C - Watts	157	224	380
BTU - 50 Deg. C	1034	1477	2511
Thermal Output - 50 Deg. C - Watts	303	433	736
BTU - 60 Deg. C	1309	1871	3180
Thermal Output - 60 Deg. C - Watts	384	548	932
