Reina Coneva Vertical Steel Designer Radiator 1500mm High

Reina Coneva Vertical Steel Designer Radiator 1500mm High

Name: Reina Coneva Vertical Steel Designer Radiator 1500mm High
Brand: Reina
SKU: RND-CNV15030A
Price: 160.28 GBP
Availability: InStock

More Sizes And Finishes Available

No Rating

Write a Review

Rate This:

MFC Code : RND-CNV15030A

Product Code : 65059

Delivery: £34.95

£160.28

RRP : £266.62

SELECT Sizes Step 1

300 [mm]
£160.28
370 [mm]
£200.91
440 [mm]
£233.21
510 [mm]
£269.95

SELECT FINISH Step 2

qty :

Radiator Valves Read More About the Product

Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.

None
OP-63036 - 200mm Chrome Pipe Kit - ACC/RPC + £14.28 [ View Image ]

About This Product

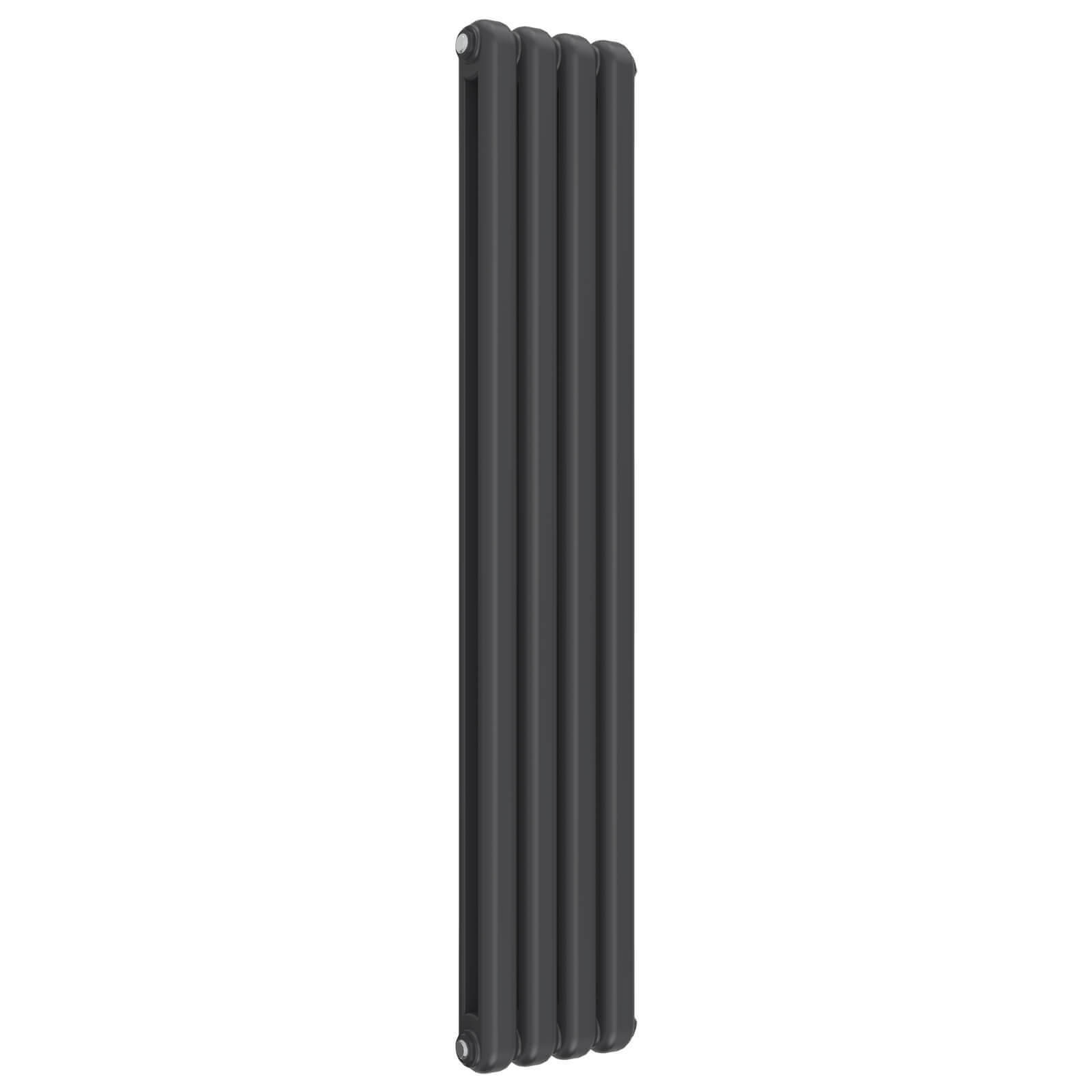

Vertical designer radiator
Material: Steel
Brackets for radiator included
Suitable for central heating system only
Supplied with Air vent and End plug
For BTU, Watts and other details please refer chart in PRODUCT VARIATIONS INFO and MFC CODE Tab
Heat Output is measured at 70 Degree Celsius
Height: 1500mm (150cm)
Wall to pipe centres: 68mm (6.8cm)
Distance from wal l: 113mm (11.3cm)
Valves and chrome pipes shown in the image are not included

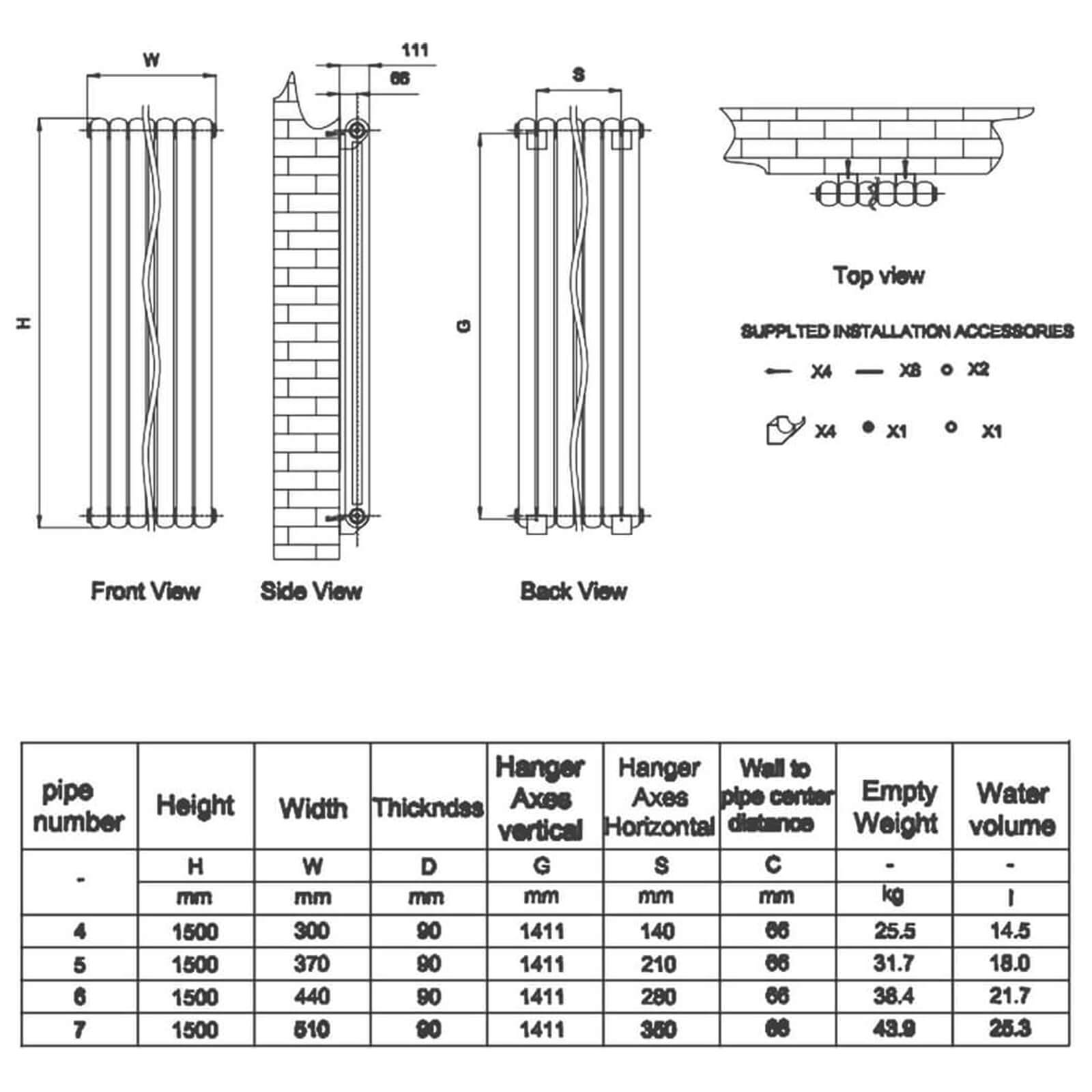

Technical drawing available for more technical details
Guarantee: 5 years from Reina against any manufacturing defects.
Available Optional Products:
Choice of different width available
Available in different finishes White and Anthracite
Valves, Sleeving Kit And Chrome Pipe Kit.

Information Breakdown

Colour	White
Warranty/Guarantee	5 Years
Width	300
Orientation	Vertical
BTU Output	5031
Watts	1475
Tapping / Pipe Centres	300
Valves Included	Sold Separately
Wall to Centre of Inlet	68
Brackets Included	Yes
Design	Modern

PRODUCT VARIATIONS INFO & MFC CODE

Available Variants Along With Manufacturing Code

Height	300mm	370mm	440mm	510mm
Tube Quantity	4	5	6	7
Pipe Centres	300mm	370mm	440mm	510mm
Wall To Pipe Centres	68mm	68mm	68mm	68mm
Wall Distance	113mm	113mm	113mm	113mm
Watts - Delta-70	1475	1844	2213	2582
BTU - Delta-70	5031	6289	7548	8803
BTU - Delta-60	4124	5155	6187	7216
BTU - Delta-50	3246	4057	4870	5679
BTU - Delta-45	2826	3533	4240	4946
BTU - Delta-40	2442	3053	3664	4273
BTU - Delta-35	2045	2557	3068	3578
BTU - Delta-30	1660	2076	2491	2905
BTU - Delta-25	647	808	970	1131
White MFC	RND-CNV15030W	RND-CNV15037W	RND-CNV15044W	RND-CNV15051W
Anthracite MFC	RND-CNV15030A	RND-CNV15037A	RND-CNV15044A	RND-CNV15051A
