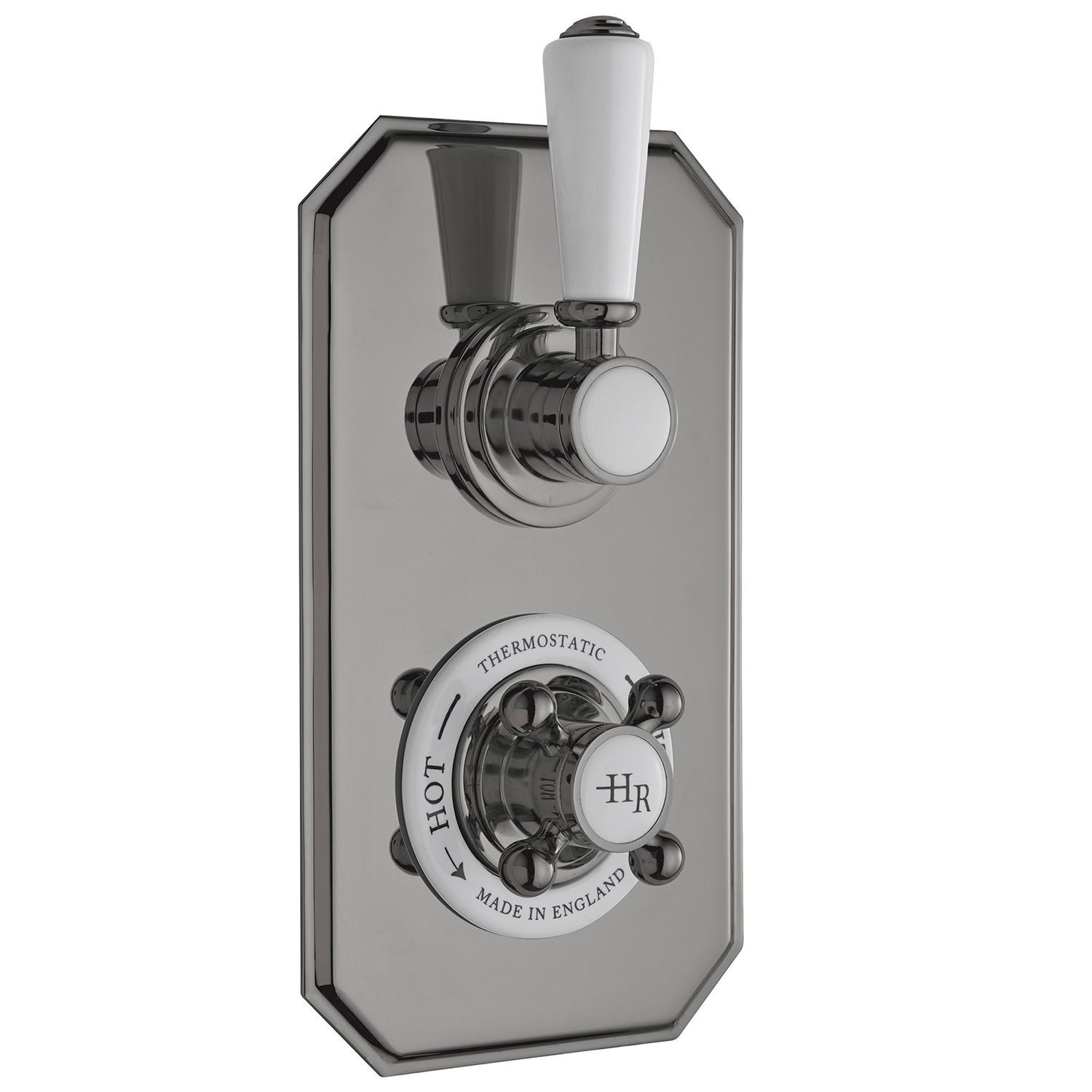

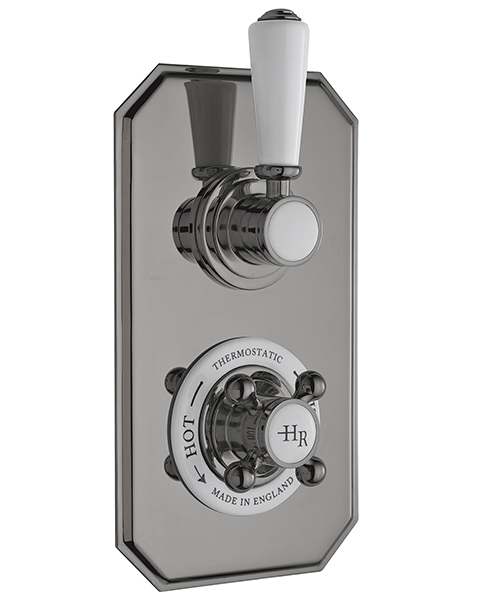

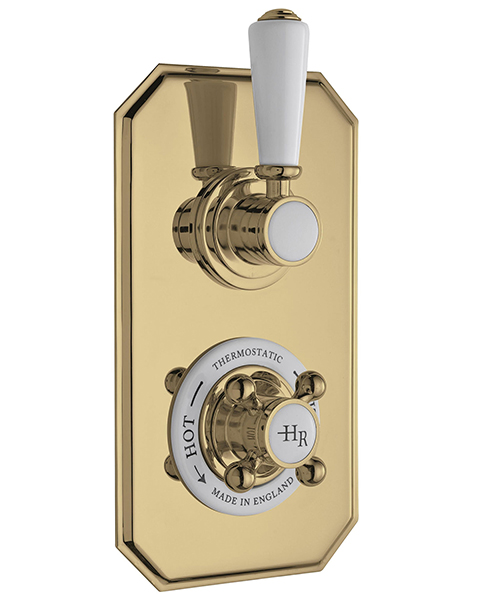

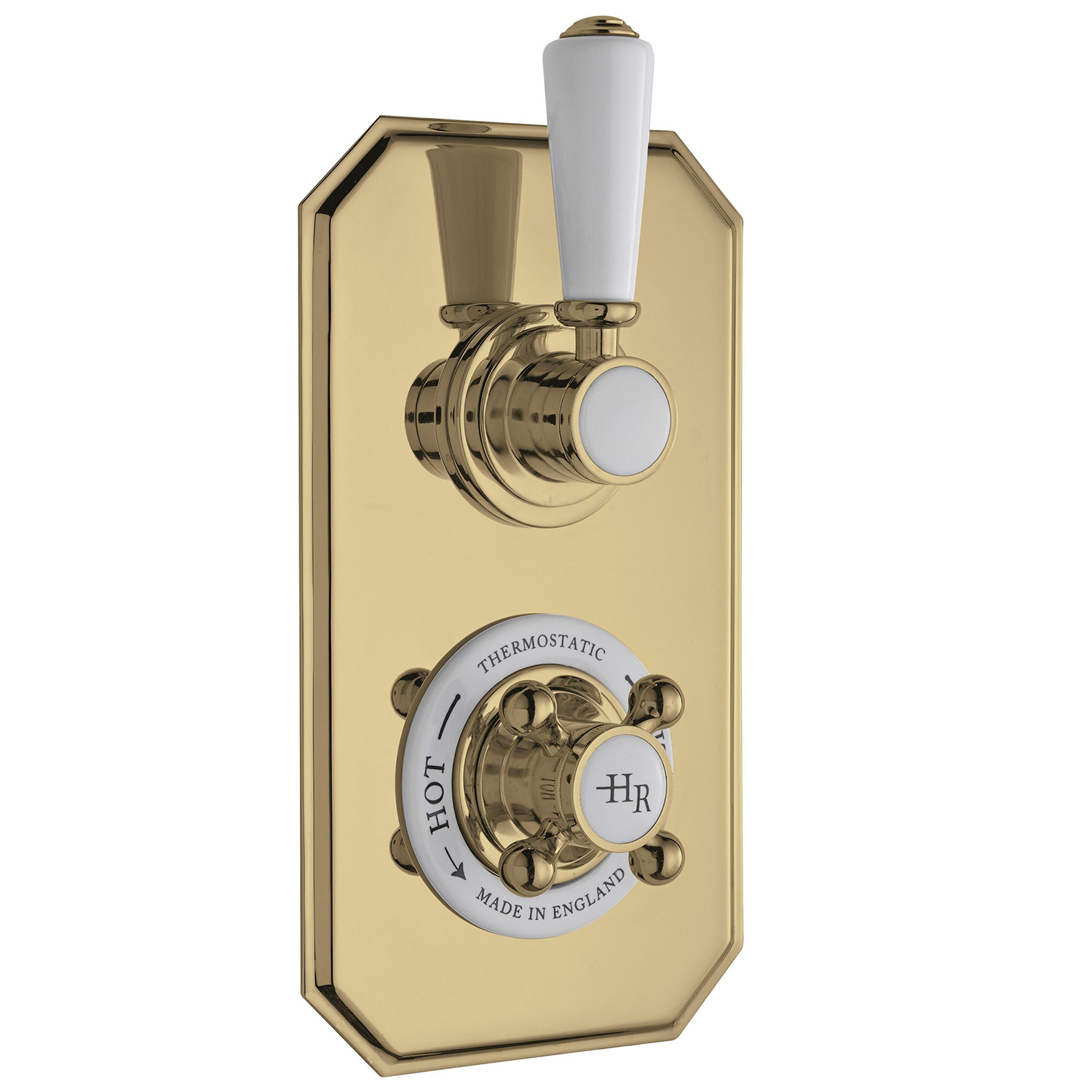

Hudson Reed Topaz Twin Thermostatic Shower Valve With Diverter
Technical drawing 53983 / TSVT004
Additional image of Hudson Reed Topaz Twin Thermostatic Shower Valve With Diverter

Hudson Reed Topaz Twin Thermostatic Shower Valve With Diverter

Hudson Reed Logo
Finishes Available: Chrome-White / Chrome-Black
No Rating No Rating Write a Review
Rate This:
MFC Code : TSVT004
Product Code : 53983
Delivery: £7.95
£245.60
RRP : £614.00
Finishes Available

OP-146766 - Chrome-White

qty :
  • Choice of different finishes: Chrome-White or Chrome-Black - [Optional]
  • Material: Brass and ABS
  • Dimensions: Width 120mm (12cm) x Depth 135mm (13.5cm) x Height 230mm (23cm)
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Choice of different finishes: Chrome-White or Chrome-Black - [Optional]
  • Material: Brass and ABS
  • Dimensions: Width 120mm (12cm) x Depth 135mm (13.5cm) x Height 230mm (23cm)
  • Pipe Size: 15mm (1.5cm)
  • No of Outlets: 2
  • Concealed wall-mounted installation
  • Diverter included
  • Valve/Cartridge Type: 1/4 Turn Ceramic Disc
  • Accurate flow control and excellent flow rates - even at low-pressure
  • Thermostatic control to +/- 2 °C even if the water pressure fluctuates
  • The patented cartridge is highly resistant to calcium buildup - even in hard water areas
  • In the event of hot or cold water failure, the valve will shut down automatically
  • Anti-Scald - Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • Suitable for use with all systems, gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
  • The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing - remove the cartridge, turn 180° and replace
  • Suitable for low-pressure water system
  • Requires a minimum of 0.1 bar or above water pressure to operate smoothly
  • Download the Data Sheet and Installation Instruction PDF file from the Technical Info Section
  • Refer to the technical drawing for complete size details
  • Guarantee: Twenty-year from Hudson Reed against manufacturing defects

Information Breakdown

Colour Chrome And White
Warranty/Guarantee 20 Years
Theme Traditional
Handle Style Lever
Backplate Width 120
Backplate Height 230
Anti-Scald Yes
Number of Handles 2
Number of Outlet 2
Diverter Included Yes
Orientation Portrait
Cartridge Included Yes
Cartridge Type 1/4 Turn Ceramic Disc
Minimum Operating Pressure (Bar) 0.1

Technical Info

Hudson Reed Topaz Twin Thermostatic Shower Valve With Diverter

Download Technical Data Sheet PDF

Download Fitting Instruction PDF
