Name: Hudson Reed Fusion 1200mm Full Depth Furniture Pack - Vanity And Wc Unit With Basin
Brand: Hudson Reed
SKU: CBI109
Price: 458.4 GBP
Availability: InStock

AQVA Code

Size

Finish / Difference

MFC Code

61778

1000mm Wide

CBI126

53945

1100mm Wide

CBI102

About This Product

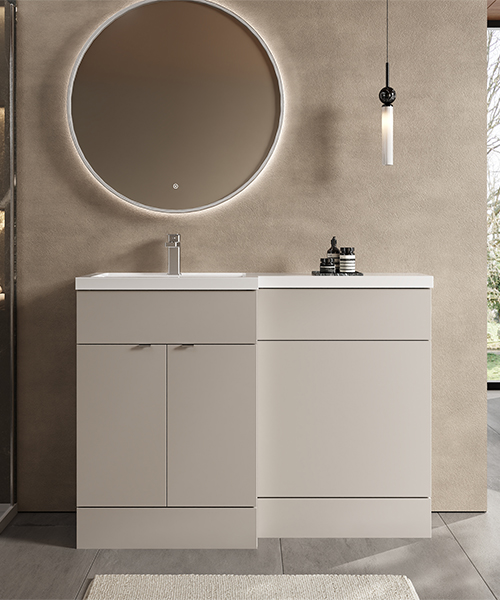

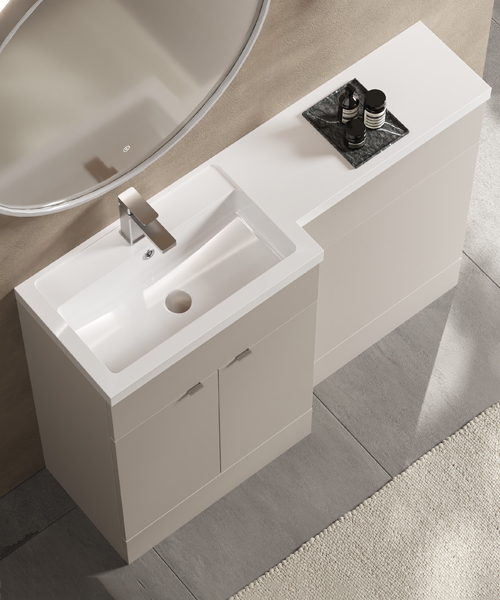

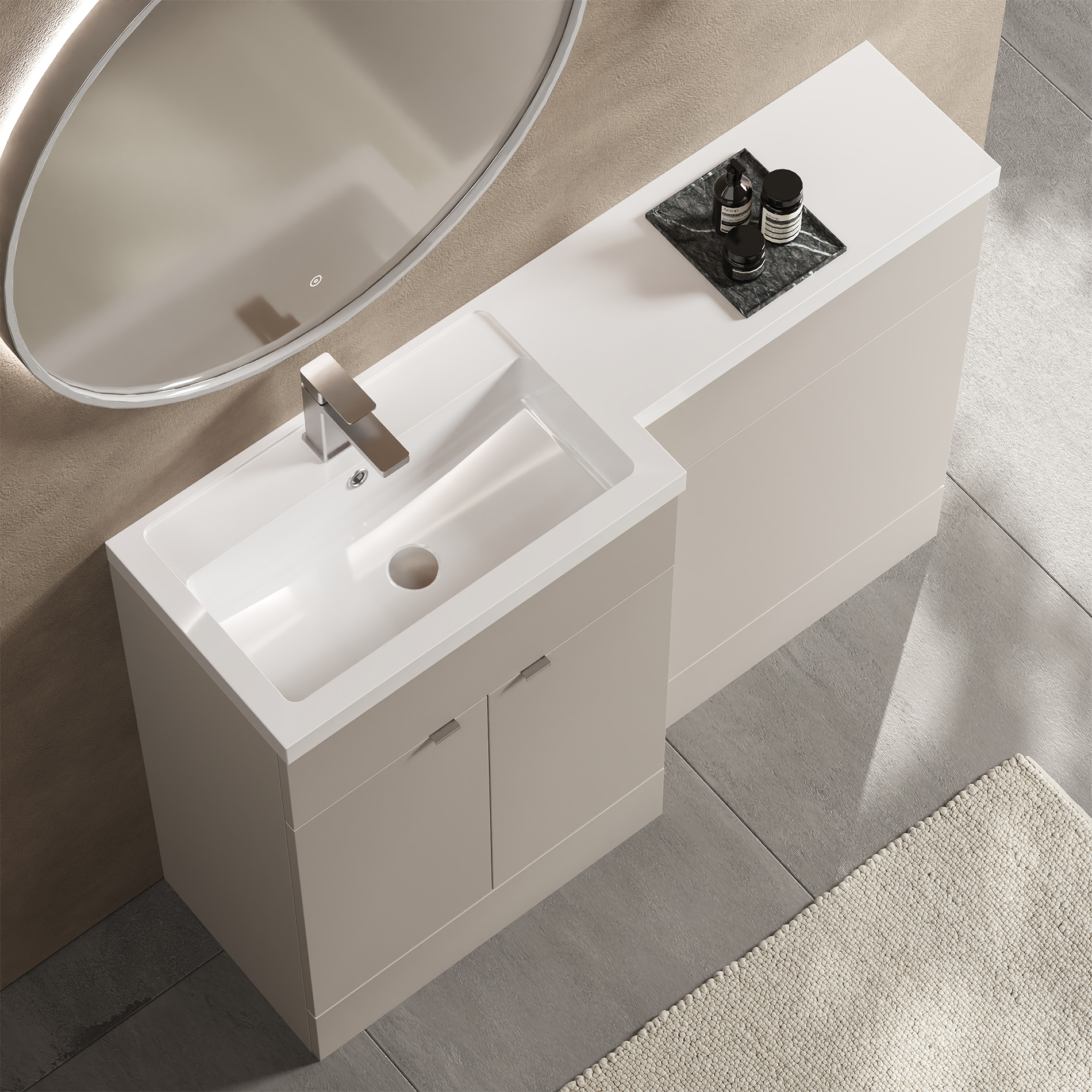

The product consists of a Vanity Unit, WC unit and Basin
Overall Dimensions: Width 1205 (120.5cm) x Depth 360 (36cm) x Height 904mm (90.4cm)
The tap shown in the image is not included
Download the PDF from the technical Info Section for the technical data sheet and mounting instruction
Technical drawing available for more technical details
Guarantee: 5 years from the Hudson Reed against manufacturing faults.
Details of Vanity Unit
Dimensions: Width 600mm (60cm) x Depth 355mm (35.5cm) x Height 864mm (86.4cm)
Cabinet Finish: MFC Painted Gloss
Fascia Finish: MDF Painted Gloss
Cabinet Thickness: 16mm
Fascia Thickness: 18mm
FSC Certified
Supplied with 1 Internal shelf
2 Soft Close door
Hinge Type: 95 Degree Clip-On Soft Close
Fixing included
Construction Method: Cam and Wood Dowel
Full Depth provides ample storage space
Supplied Rigid
Contemporary Wrap-Over handle in Satin Nickle finish included
Details of Basin
Dimensions: Width 1203mm (120.3cm) x Depth 355mm (35.5cm) x Height 135mm (13.5cm)
Inner bowl depth: 215mm
L Shaped Polymarble Basin
Supplied with 1 Tap Hole
Overflow and cover included
Details of WC Unit
Dimensions: Width 600mm (60cm) x Depth 255mm (25.5cm) x Height 864mm (86.4cm)
Cabinet Finish: MFC Painted Gloss
Fascia Finish: MDF Painted Gloss
Cabinet Thickness: 16mm
Fascia Thickness: 18mm
Fixing included
Construction Method: Cam and Wood Dowel
Supplied Rigid.
Available Optional Product
Unit available in different finishes
Different variants available left left-hand and right-hand
Choice of other handles in different finishes available

Information Breakdown

Colour	Gloss White
Warranty/Guarantee	5 Years
Theme	Modern
Fixings included	Yes
No. of Tap Holes	1
Number Of Doors	2
Furniture Material	MFC Textured Woodgrain
Sink Included	Yes
Sink Colour	White
No. Of Internal Shelves	1
Vanity Cabinet Included	Yes
Vanity Cabinet Width	600
Vanity Cabinet Height	864
Vanity Cabinet Depth	355
WC Unit Included	Yes
WC Unit Width	600
WC Unit Height	864
WC Unit Depth	255
Sink Material	Polymarble
Number Of Sinks	1
Installation Type	Floor Mounted

Compatible Handle

Technical Info

Hudson Reed Fusion 1200mm Full Depth Furniture Pack - Vanity And Wc Unit With Basin

Download Technical Datasheet For Left Hand Unit With Basin PDF

Download Technical Datasheet For Right Hand Unit With Basin PDF

Download Fitting Instruction PDF

PRODUCT VARIATIONS INFO & MFC CODE

Available Finishes For Left Hand Fitted Furniture

Finish	Pack Code	Vanity Unit MFC	WC Unit MFC	Basin
Gloss White	CBI109	OFF108	OFF147	PMB414L
Bleached Oak	CBI3009	OFF3008	OFF3047	PMB414L
Anthracite Woodgrain	CBI509	OFF508	OFF547	PMB414L
Charcoal Black	CBI609	OFF608	OFF647	PMB414L
Gloss Grey	CBI909	OFF908	OFF947	PMB414L

Available Finishes For Right Hand Fitted Furniture

Finish	Pack Code	Vanity Unit MFC	WC Unit MFC	Basin
Gloss White	CBI110	OFF108	OFF147	PMB414R
Bleached Oak	CBI3010	OFF3008	OFF3047	PMB414R
Anthracite Woodgrain	CBI510	OFF508	OFF547	PMB414R
Charcoal Black	CBI610	OFF608	OFF647	PMB414R
Gloss Grey	CBI910	OFF908	OFF947	PMB414R
