Nuie Crescent 1700 x 725mm Back-To-Wall Bath White

Name: Nuie Crescent 1700 x 725mm Back-To-Wall Bath White
Brand: Nuie
SKU: NBH209L
Price: 177.45 GBP
Availability: InStock

No Rating

Write a Review

Rate This:

MFC Code : NBH209L

Product Code : 48799

Delivery: £34.95

£177.45

RRP : £455.00

SELECT Variant Step 1

SELECT Bath Panel Step 2

qty :

Available in different variants: Left Hand and Right Hand - [See Option]
Bath without and with panel - [See Option]
Finish: White
Material: Acrylic
Dimension: Length 1700mm (170cm) x Width 725mm (725cm) x Height 560mm (56cm)
Weight: 24kg
Supplied with leg set
Shape: Round
Designed and build to the highest quality
Displaced Capacity: 120 litres
Volume: 195 litres
Tap, waste and overflow shown in the image are not included
Download Data Sheet and Fitting Instruction PDF File from the Technical Info Section

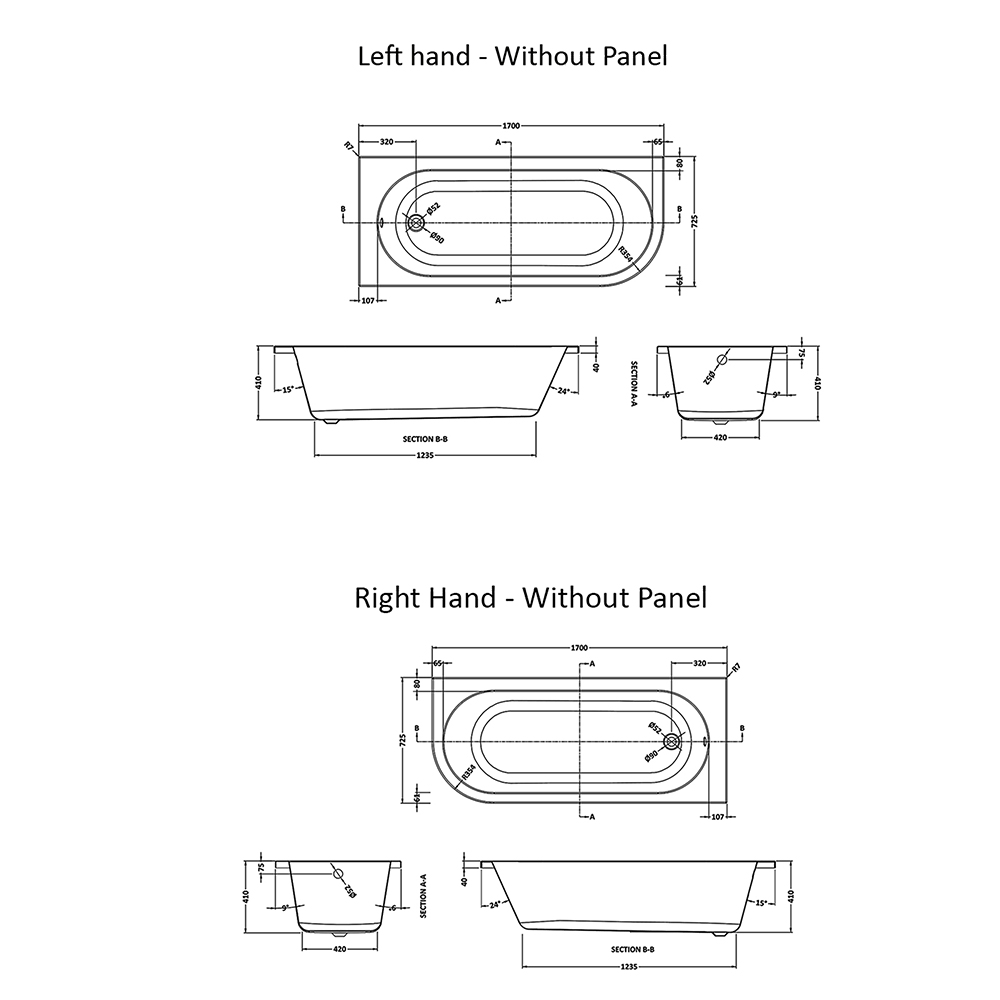

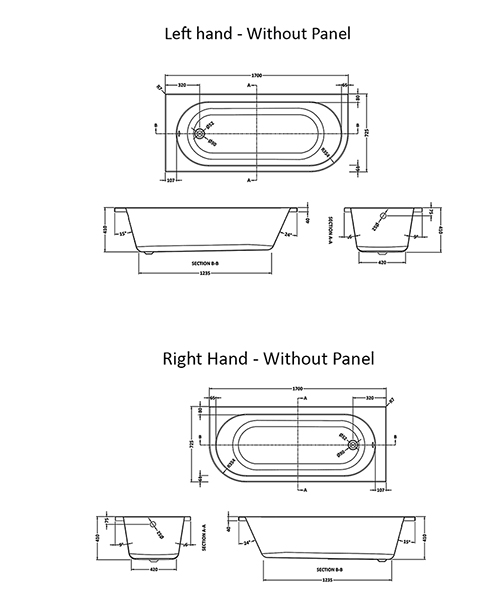

For complete size details, refer technical drawing
Guarantee: Five-years from Nuie against manufacturing defects.
Available Optional Product:
Waste.

Colour	White
Warranty/Guarantee	5 Years
Theme	Modern
Material	Acrylic
Handed Type	Options Available
Capacity in litres	195Ltr
Waste Included	Sold Separately
Front Panel Included	Yes
Tub Depth	External - 410
External Length	1700
External Width	725
Internal Bottom Length	1306
Internal Bottom Width	503
Internal Top Length	1528
Internal Top Width	584
Height of Rim	40
Width of Rim	80
Distance Top edge to centre of overflow hole	75
Diameter of overflow hole	52
Diameter of Drain hole	52

Download Technical Data Sheet For Left Hand - Without Panel PDF

Download Technical Data Sheet For Right Hand- Without Panel PDF

Download Technical Data Sheet For Left Hand - With Panel PDF

Download Technical Data Sheet For Right Hand - With Panel PDF

Download Fitting Instruction PDF

Specification For Bath

Variants	Left Hand	Right Hand
Bath And Leg Set Without Panel - Pack Code	NBH209L	NBH209R
Bath And Leg Set With Panel - Pack Code	BSG005L	BSG005R
1700mm Corner Bath MFC	NBH209LNL	NBH209RNL
Leg Set MFC	NBL001	NBL001
Bath Panel MFC	BSG008	BSG008
