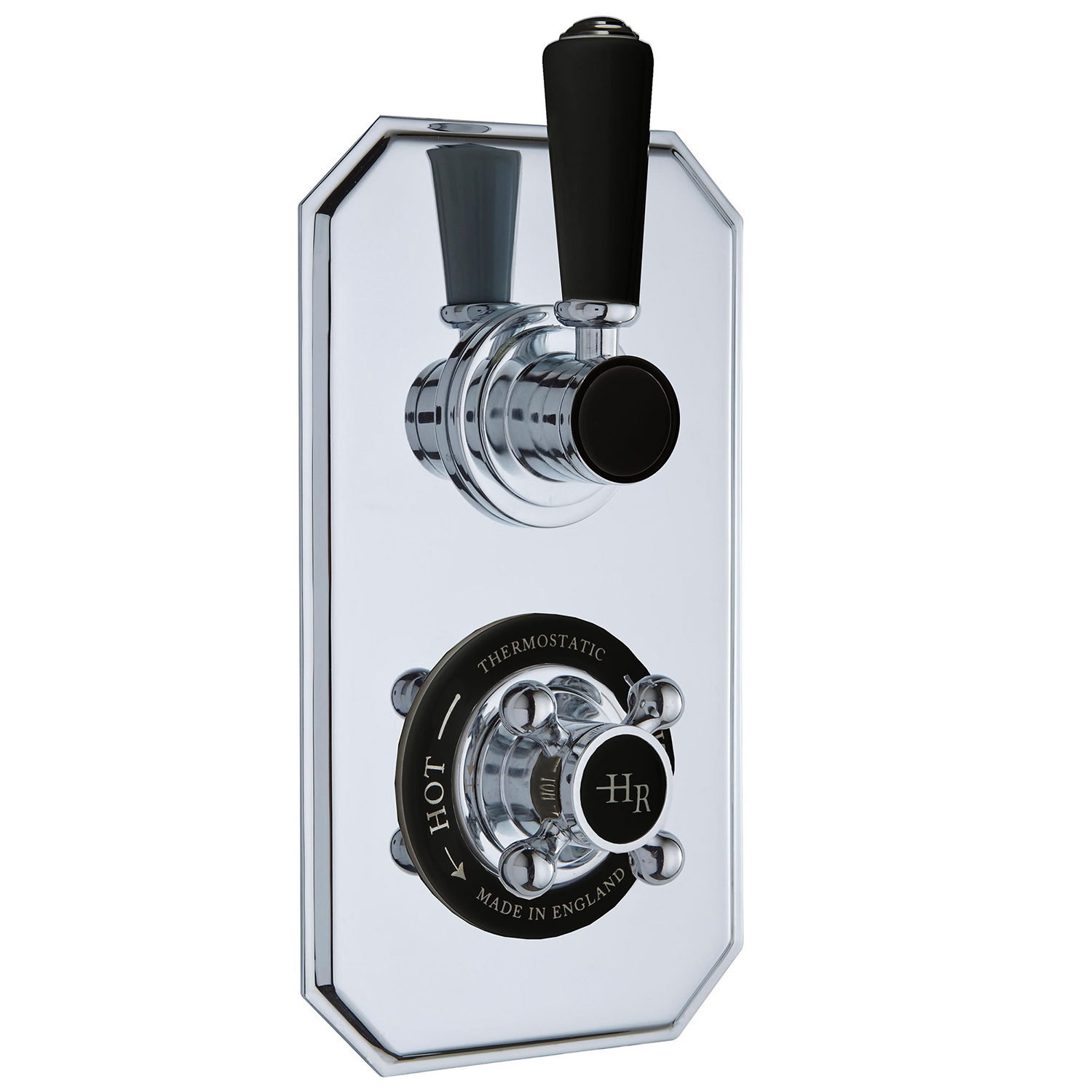

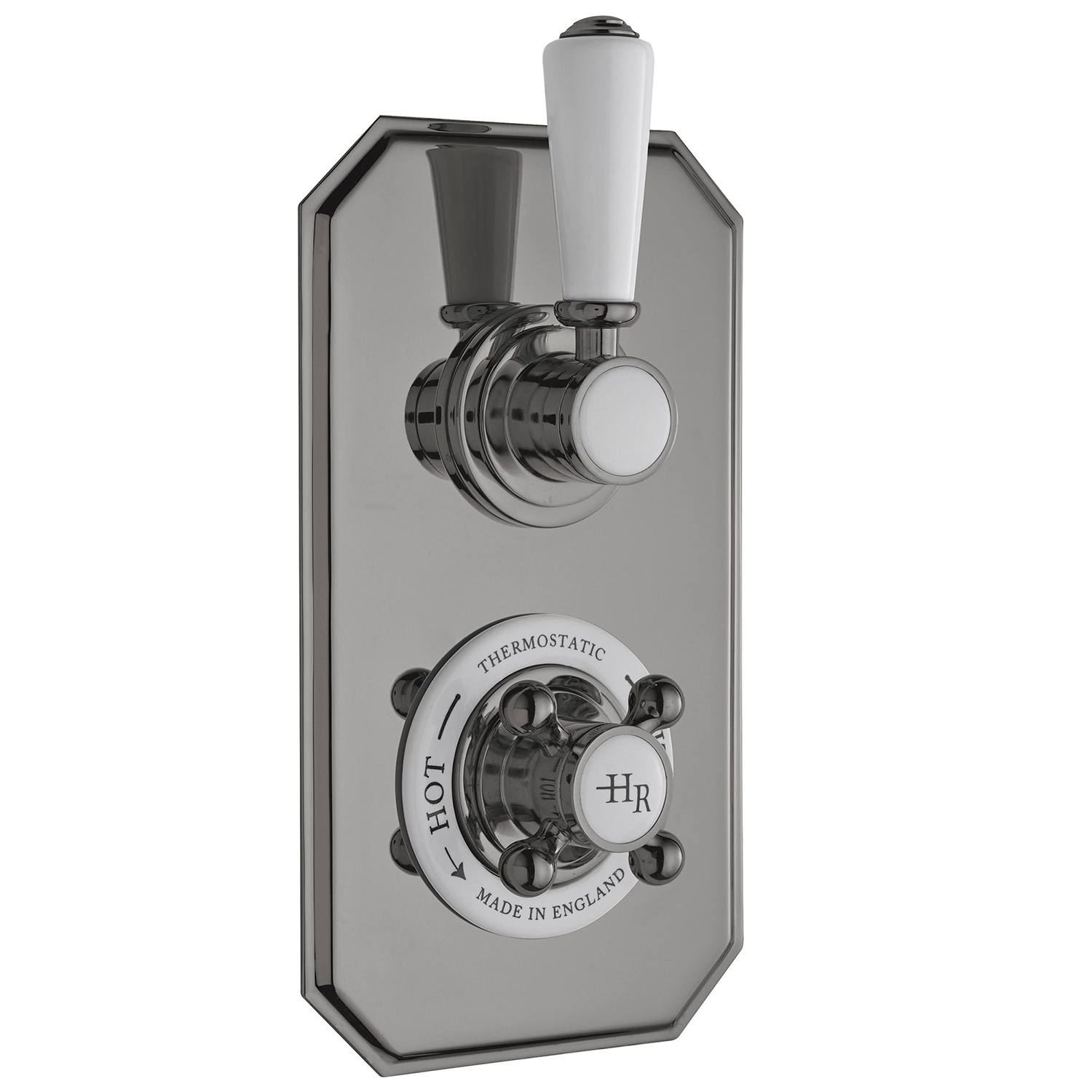

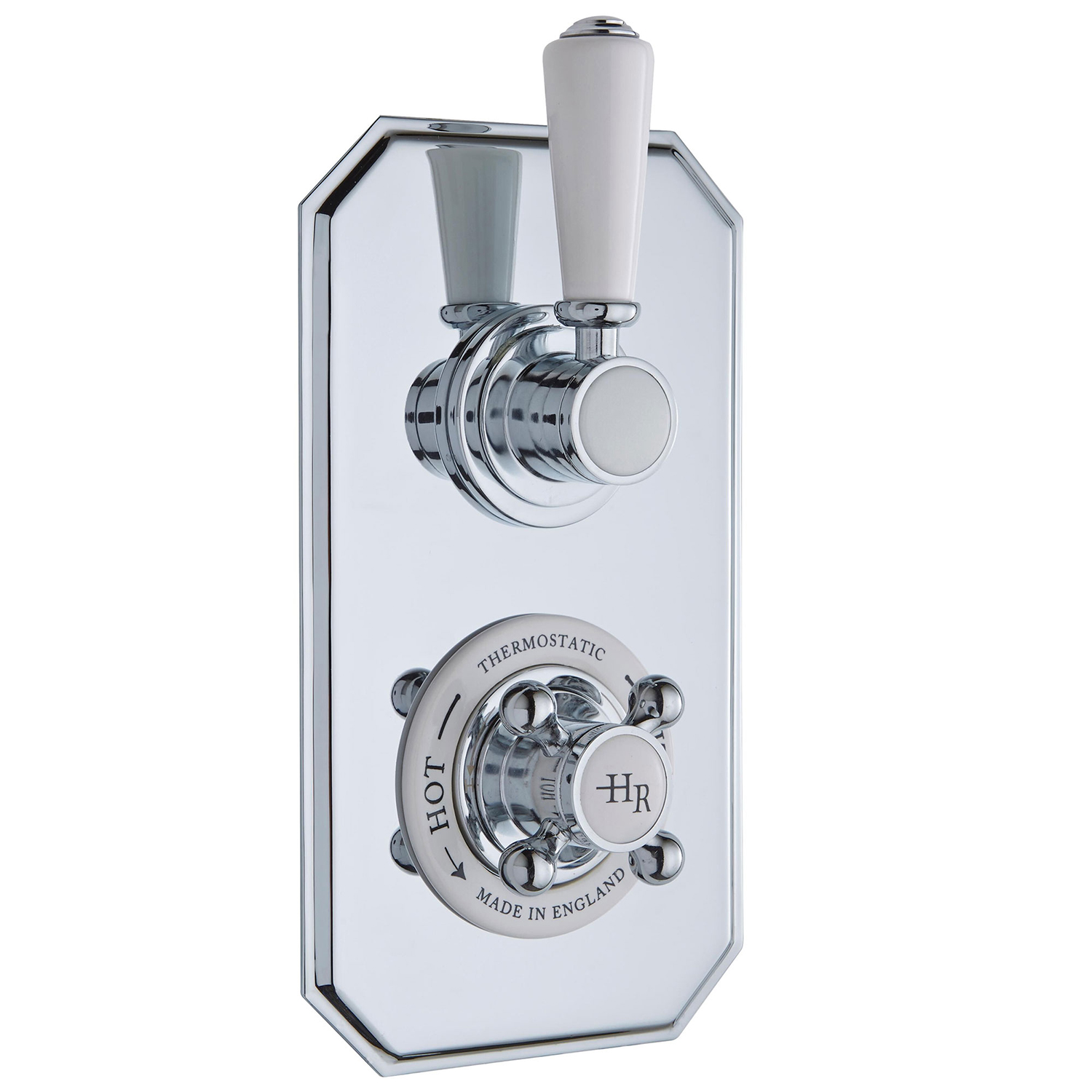

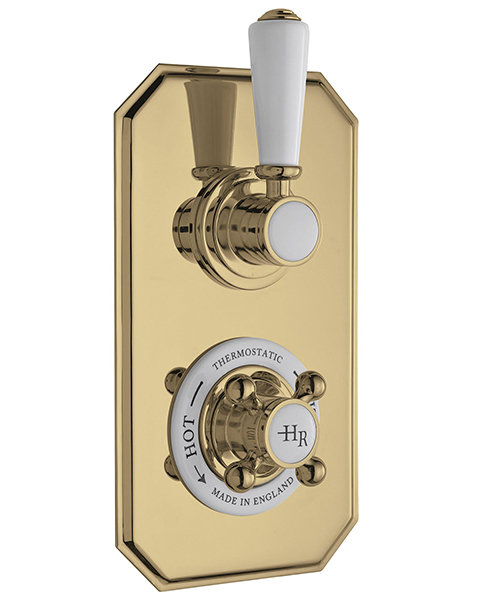

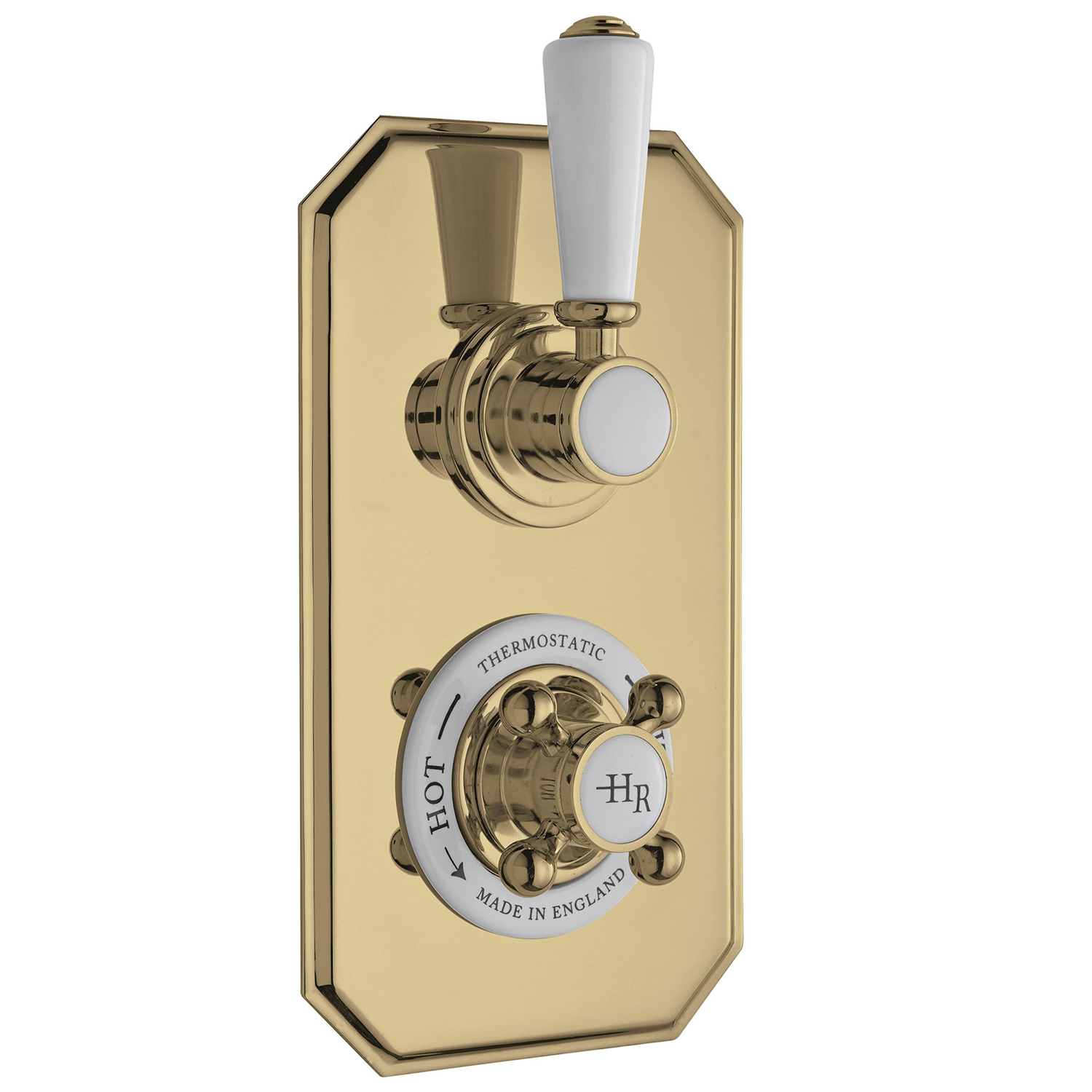

Hudson Reed Topaz Twin Concealed Thermostatic Shower Valve
Technical drawing 53508 / TSVT002

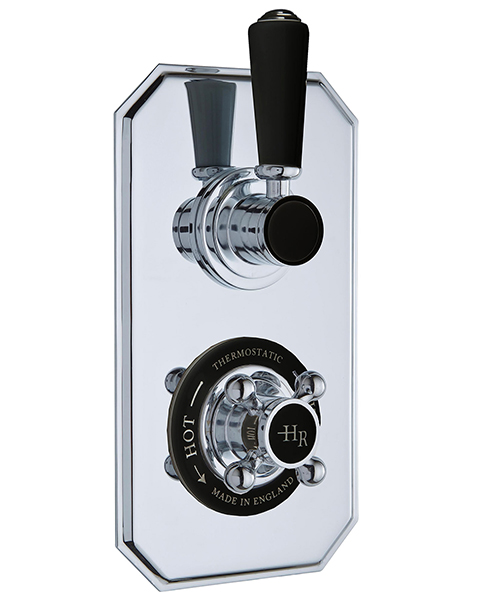

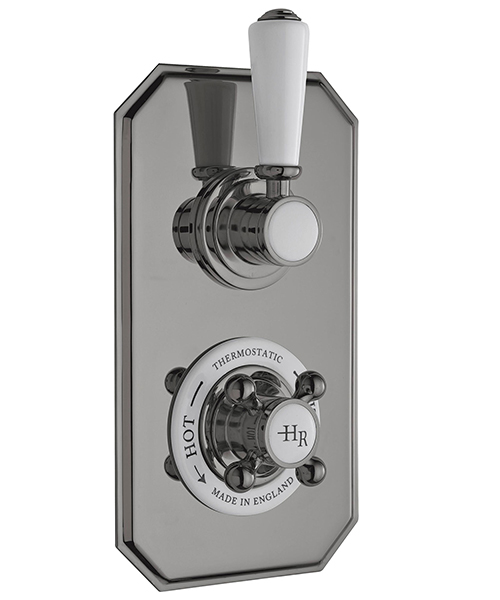

Additional image of hudsonreed TSVT002

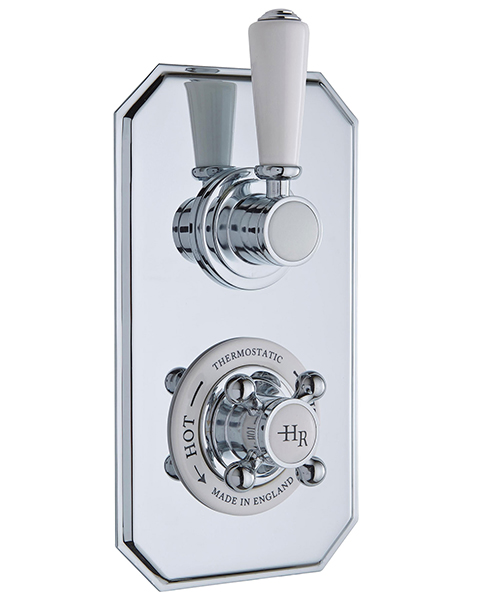

Additional image of Hudson Reed Topaz Twin Concealed Thermostatic Shower Valve

Hudson Reed Topaz Twin Concealed Thermostatic Shower Valve

Hudson Reed Logo
Finishes Available: Chrome-White / Chrome-Black
No Rating No Rating Write a Review
Rate This:
MFC Code : TSVT002
Product Code : 53508
Delivery: £7.95
£222.40
RRP : £556.00
Finishes Available

OP-139587 - Chrome-White

qty :
  • Choice of different finishes: Chrome-White and Chrome-Black - [See Option]
  • Material: Brass and ABS
  • Dimensions: Width 120mm (12cm) x Depth 135mm (13.5cm) x Height (23cm)
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Choice of different finishes: Chrome-White and Chrome-Black - [See Option]
  • Material: Brass and ABS
  • Dimensions: Width 120mm (12cm) x Depth 135mm (13.5cm) x Height (23cm)
  • Pipe Size: 15mm (1.5cm)
  • No of Outlets: 1
  • Mount Type: Wall and Recessed
  • 1/4 Turn ceramic disc cartridge
  • Accurate flow control
  • Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut-off
  • In the event of hot or cold water failure, the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium buildup - even in hard water areas
  • Our valves are suitable for use with all systems: gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing
  • Remove the cartridge, turn 180° and replace
  • WRAS approval no.: 1703023
  • Suitable for low-pressure water system
  • Requires a minimum of 0.1 bar or above water pressure to operate smoothly
  • Download the Data Sheet and Fitting Instruction PDF file from the Technical Info Section
  • Refer to the technical drawing for the complete size specifications
  • Guarantee: Twenty-year from Hudson Reed against manufacturing defects

Information Breakdown

Colour Chrome-White
Warranty/Guarantee 20 Years
Theme Traditional
Backplate Width 120
Backplate Height 230
Temperature Control Thermostatic
Anti-Scald Yes
Number of Handles 2
Number of Outlet 1
Orientation Vertical | Horizontal
Plumbing Option Concealed
Cartridge Included Yes
Cartridge Type 1/4 Turn Ceramic Disc
Minimum Operating Pressure (Bar) 0.1

Technical Info

Hudson Reed Topaz Twin Concealed Thermostatic Shower Valve

Download Technical Data Sheet PDF

Download Fitting Instruction PDF
