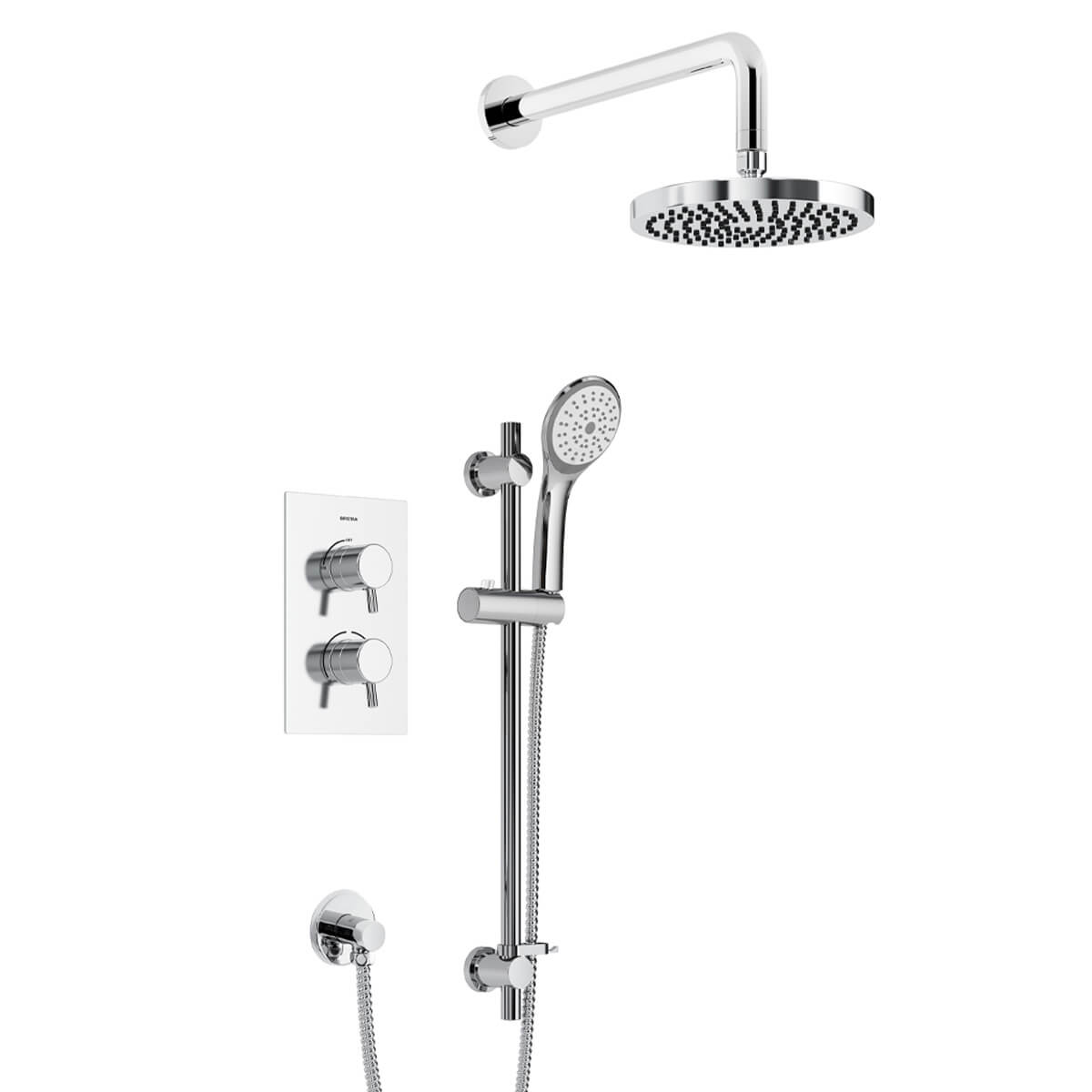

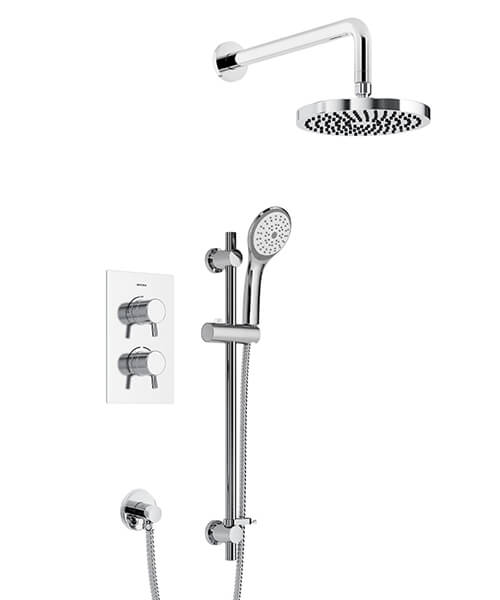

Bristan Prism Chrome Finish Fixed Head And Adjustable Riser Shower Pack

Bristan Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : PRISM SHWR PK2
Product Code : 51458
Delivery: £7.95
£337.25
RRP : £618.00

Bristan Prism Chrome Finish Fixed Head And Adjustable Riser Shower Pack

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 4 Working Days Apprx

About This Product

  • Inlet centre of valve : 150mm
  • Baseplate of valve : 165mm x 255mm [Width x Height]
  • Depth of shower arm : 400mm
  • Height of rail : 650mm
  • Fully serviceable from the front
  • Dual control - flow and temperature are controlled separately
  • The shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
  • This versatile shower pack contains a Prism shower valve with integral two outlet diverter. It has a 200mm round fixed head with shower arm; and an adjustable riser shower kit with a single function large handset
  • Connection outlet : G 1/2 inch
  • Connection inlet : 15mm Compression
  • Maximum dynamic pressure : 5.0 bar
  • Minimum dynamic pressure : 0.2 bar
  • Suitable for all plumbing systems
  • Maximum static pressure : 10 bar
  • Maximum hot water supply temperature : 65°C
  • Valve cartridge type : 3/4 inch ceramic disc valve 1/4 turn
  • Shower head type : shower rose and single function handset
  • Shower type : dual control
  • Manufactured using Brass and ABS plastic material
  • Comes in attractive chrome finish
  • Manufacturing code of this product : PRISM SHWR PK2

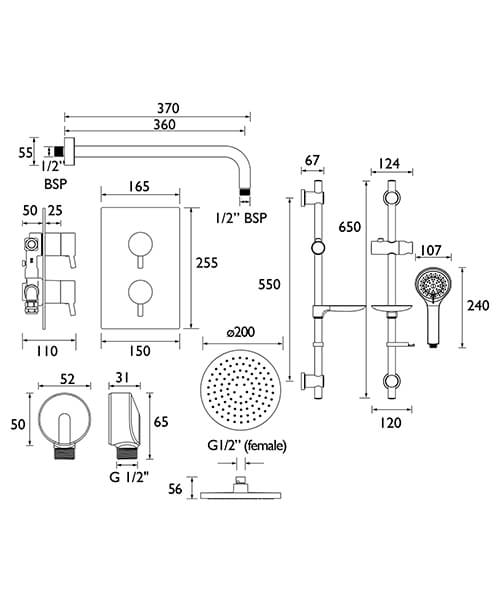

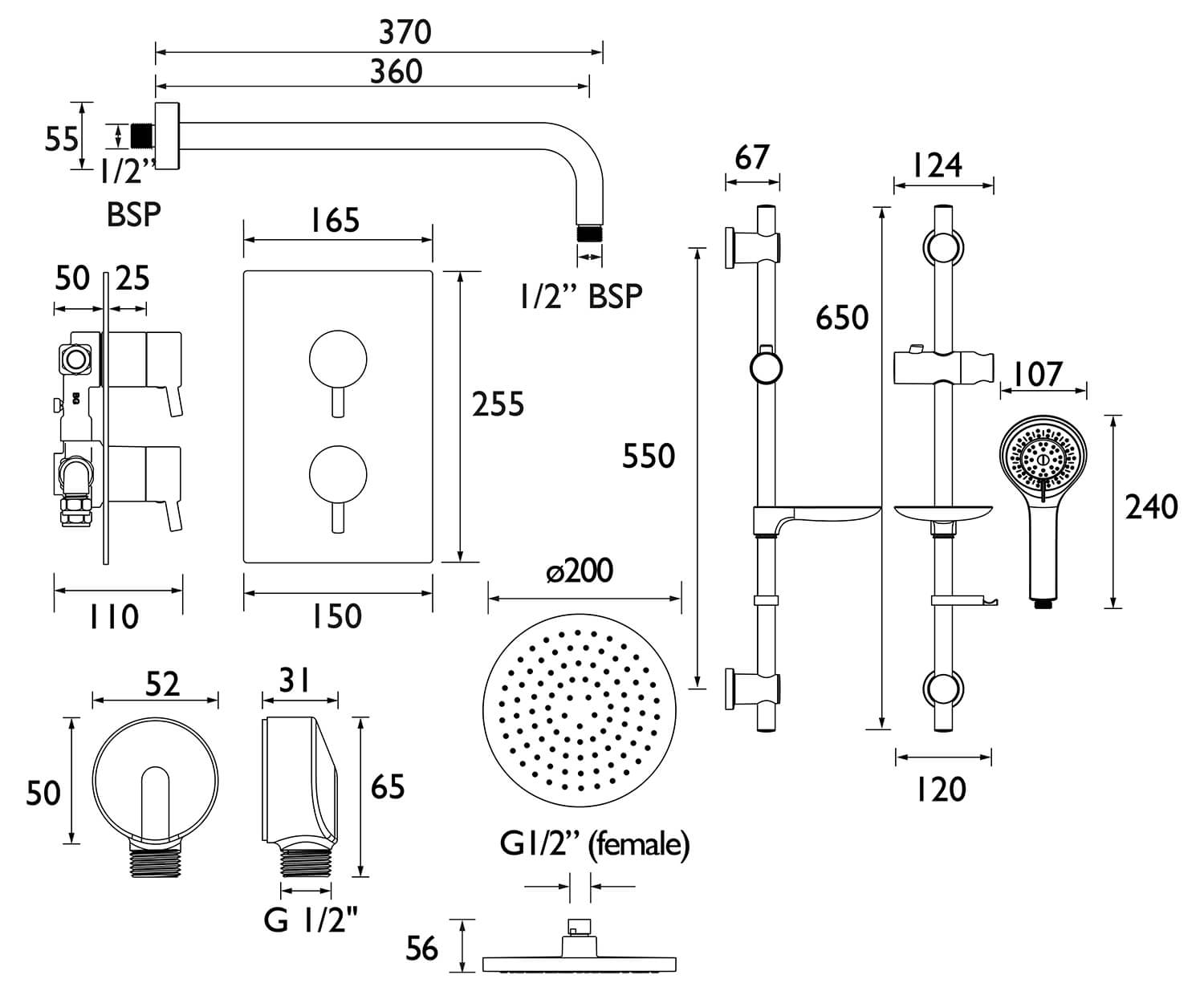

  • Refer technical diagram for technical dimensions
  • Download PDF from technical tab for installations instructions
  • 5 Years of guarantee against any manufacturing defects.

Information Breakdown

  • Brand.
  • Bristan.
  • Manufacturing Code.
  • PRISMSHWRPK2
  • EAN Barcode.
  • 5014868045399.
  • Product Type.
  • Thermostatic.
  • Shower Valve Position.
  • Concealed.
  • Shower Valve Outlets.
  • 2.
  • Shower Valve Controls.
  • 2.
  • Height.
  • 650mm.
  • Shower Arm Length.
  • 430mm.
  • Min. Pressure.
  • 0.2 Bar.
  • Max. Pressure.
  • 5.0 Bar.
  • Material.
  • Brass.
  • Colour.
  • Chrome.
  • Range.
  • Prism.
  • Style.
  • Modern.

Technical Info

Bristan Prism Chrome Finish Fixed Head And Adjustable Riser Shower Pack

Download Installation Instruction PDF
