Hudson Reed Apex Hinged Shower Door 1900mm High

Hudson Reed Logo
Width Available: 700mm / 760mm / 800mm / 900mm / 1000mm
No Rating No Rating Write a Review
Rate This:
MFC Code : MH70-E8
Product Code : 30935
Delivery: £34.95
£234.40
RRP : £586.00
SELECT Width Step 1

SELECT Handle Step 2

SELECT Side Panel Step 3

SELECT Shower Tray Step 4

SELECT 90mm Flow Waste Step 5

SELECT Leg Set And Plinth Kit Step 6

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

Options & Accessories: You May Require

Optional Extras
Optional Extras

Optional extra for use with wetroom screens and is designed to ensure safe installation and secures the wetroom screen in place.



About This Product

  • Available in different Width [Refer Option]
  • Height: 1900mm (190cm)
  • Semi Frame-less design
  • Single door with Square T-bar handle
  • Handle material: Metal
  • Aluminium profile in polished chrome finish
  • Patented Easyfit profile assembly technology as standard
  • Constructed using 8mm toughened safety glass
  • Out of True Wall adjustment: 40mm
  • Shower Shield surface coated glass, which repels water and prevents limescale build-up, significantly reduces cleaning time
  • Suitable for commercial use
  • Appropriate to use with Side panel (not included) or within a Recess
  • Side panel, tray and brass-ware are not included
  • Download installation instructions PDF from technical tab
  • Lifetime guarantee from the manufacturer against any manufacturing defects.

Information Breakdown

Warranty/Guarantee Lifetime
Width 690
Height 1900
Compliance/Approvals/Standard CE
Configuration Door Only
Door Type Hinged
Frame Design Semi Frame-Less
Frame / Profile Finish Polished Chrome
Glass Type Clear
Glass Thickness 8
Number Of Doors 1
Side Panel Included Sold Separately
Profile Adjustment 40
Door Adjustment 645-690
Entry Width 520
Profile Cover Caps Yes
Tray Compatible Yes
Installation Type Recess [Alcove] Or With Side Panel

Technical Info

Hudson Reed Apex Hinged Shower Door 1900mm High
Hudson Reed Apex Hinged Shower Door 1900mm High

Download PDF

Download DataSheet For Hinged Door PDF


PRODUCT VARIATIONS INFO & MFC CODE

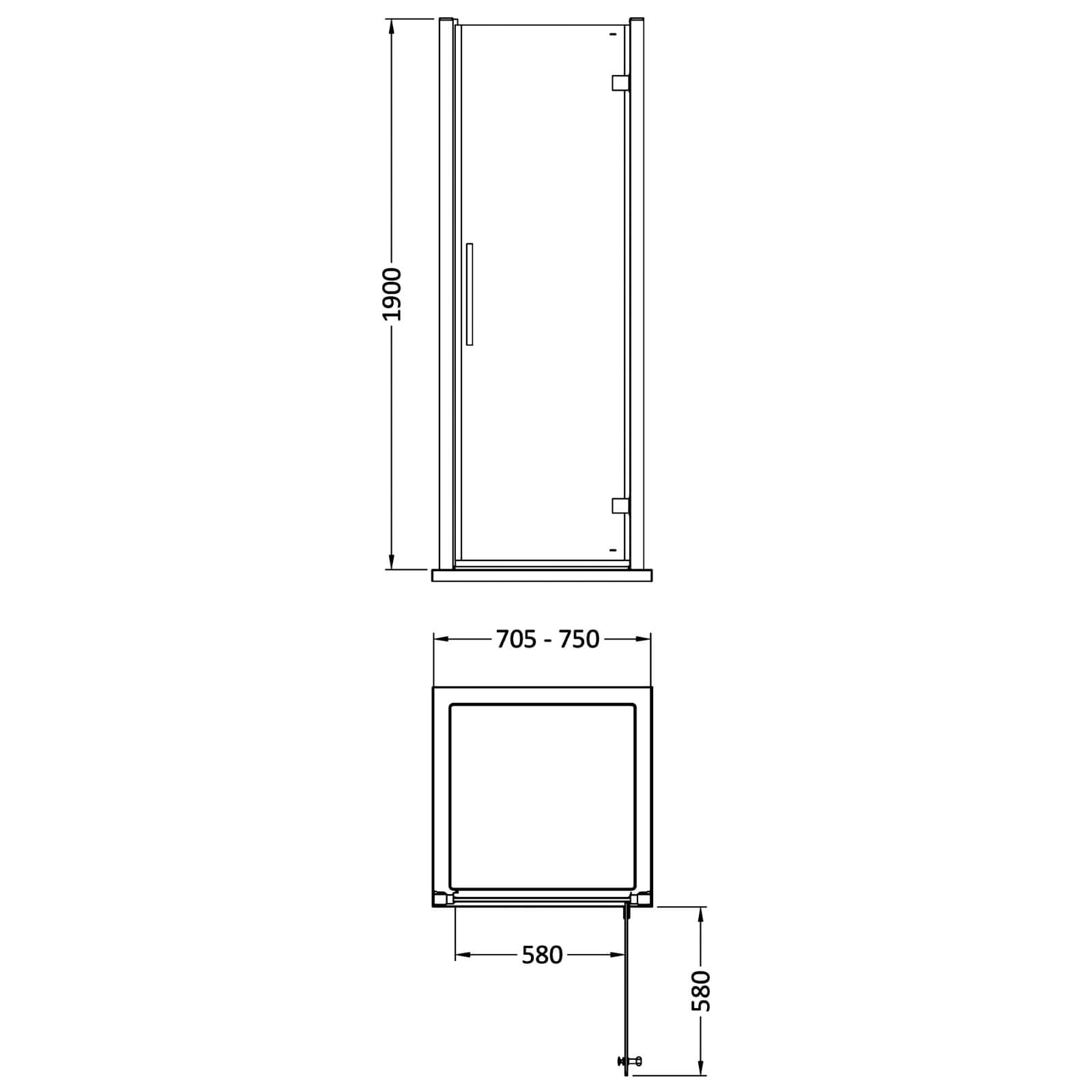

  • Details For Hinged Door
    Pack Code Handle MFC Handle Type Width Opening Adjustment
    MH70-E8 HAN1001AA Square 700mm 520mm 645-690mm
    MH76-E8 HAN1001AA Square 760mm 580mm 705-750mm
    MH80-E8 HAN1001AA Square 800mm 620mm 745-790mm
    MH90-E8 HAN1001AA Square 900mm 720mm 845-890mm
    MH70H4 HAN1204AA Round 700mm 520mm 645-690mm
    MH76H4 HAN1204AA Round 760mm 580mm 705-750mm
    MH80H4 HAN1204AA Round 800mm 620mm 745-790mm
    MH90H4 HAN1204AA Round 900mm 720mm 845-890mm
