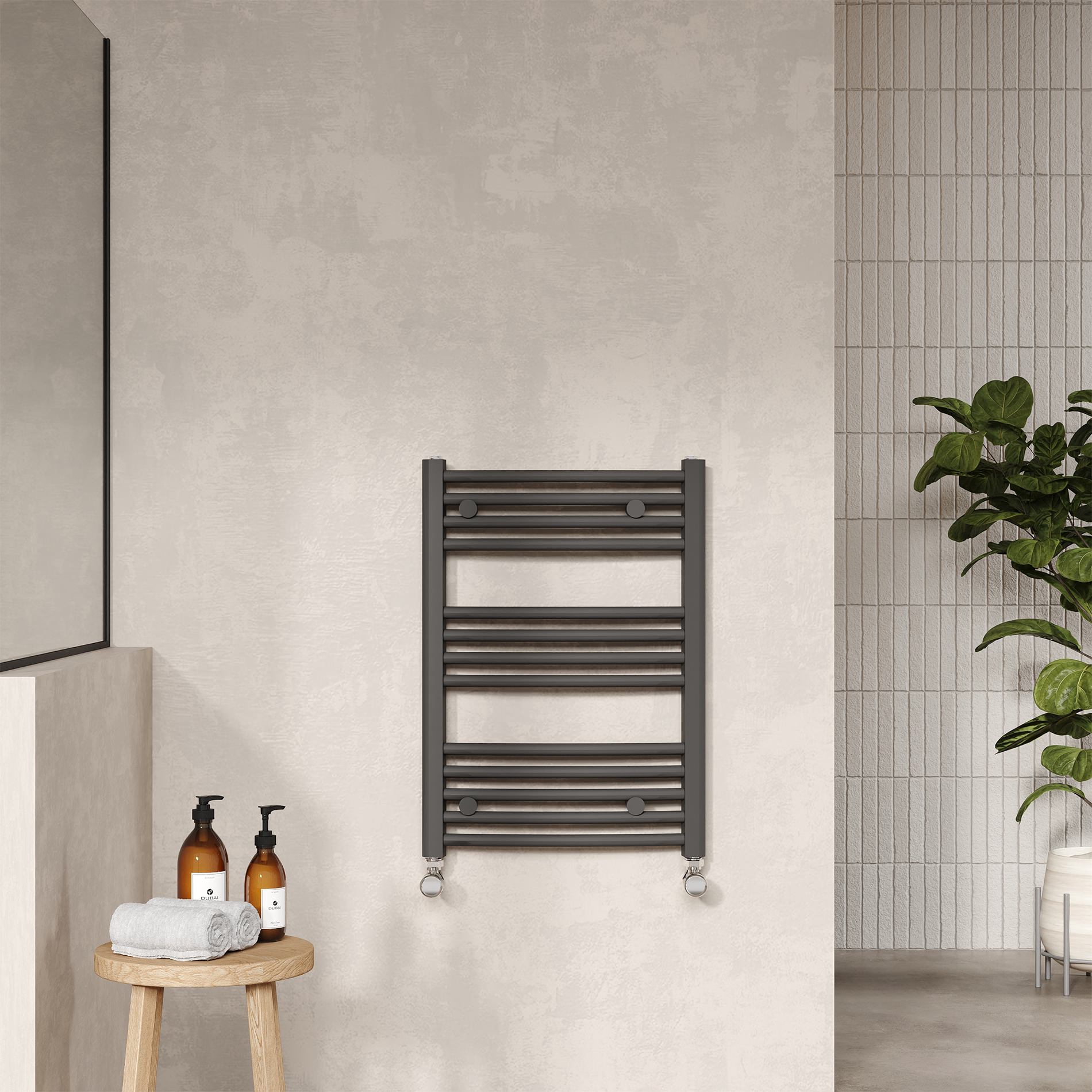

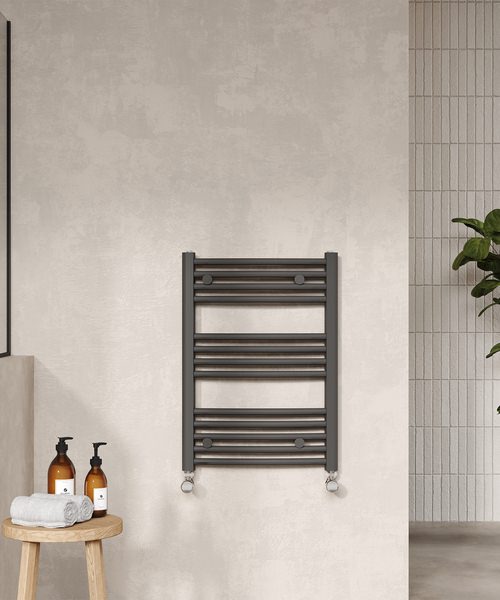

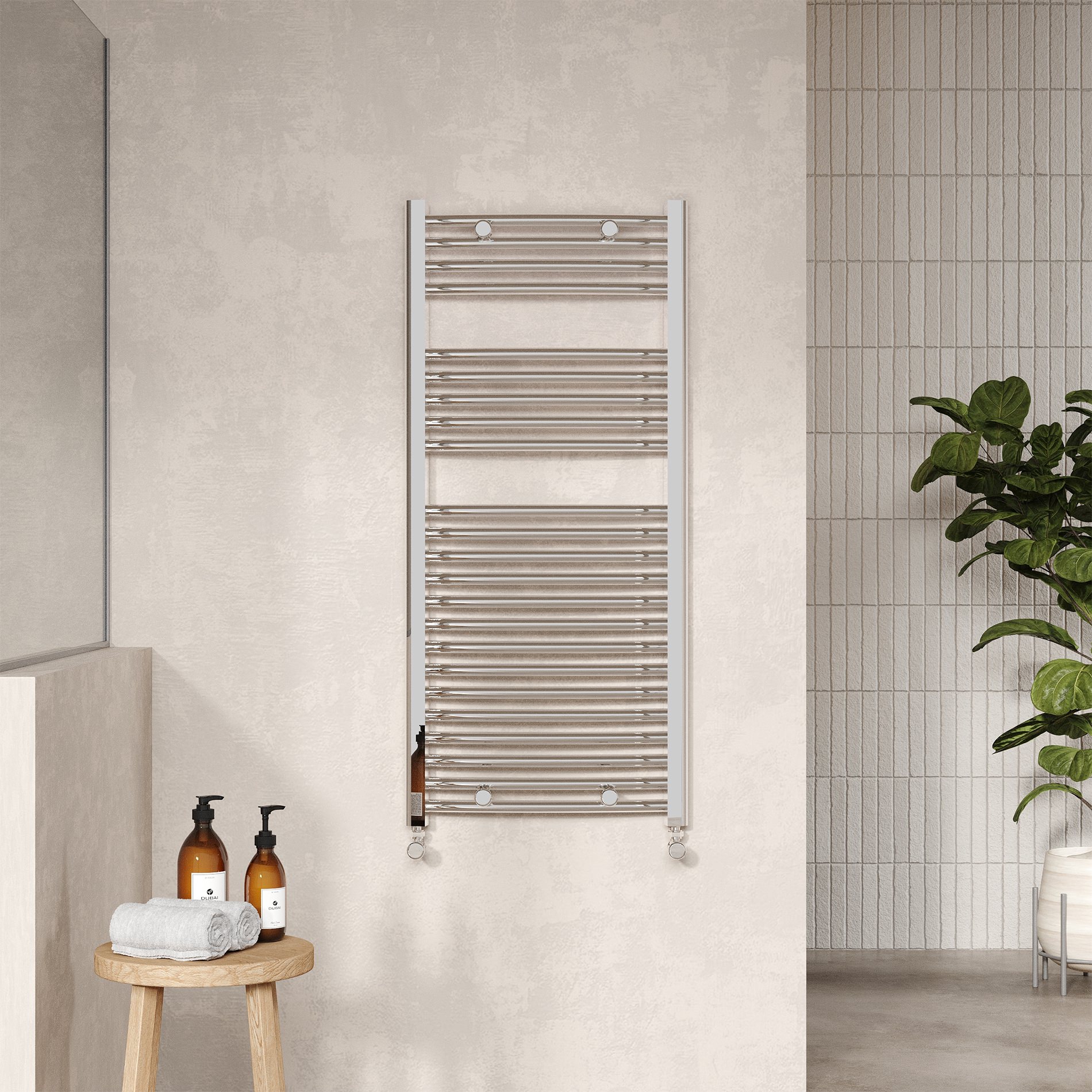

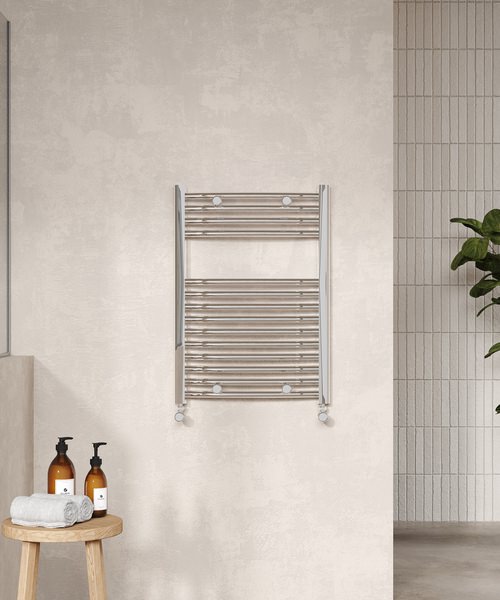

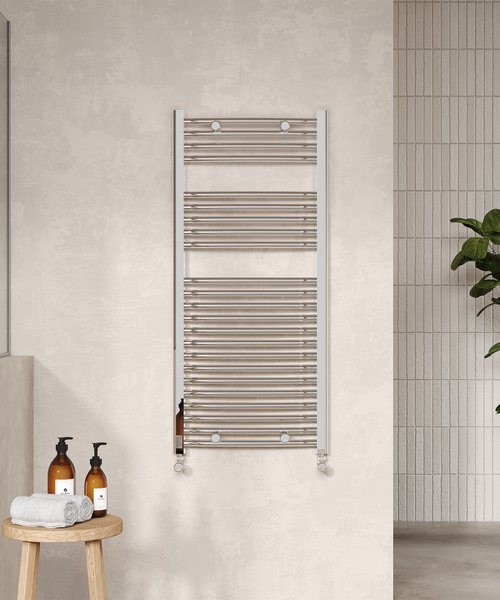

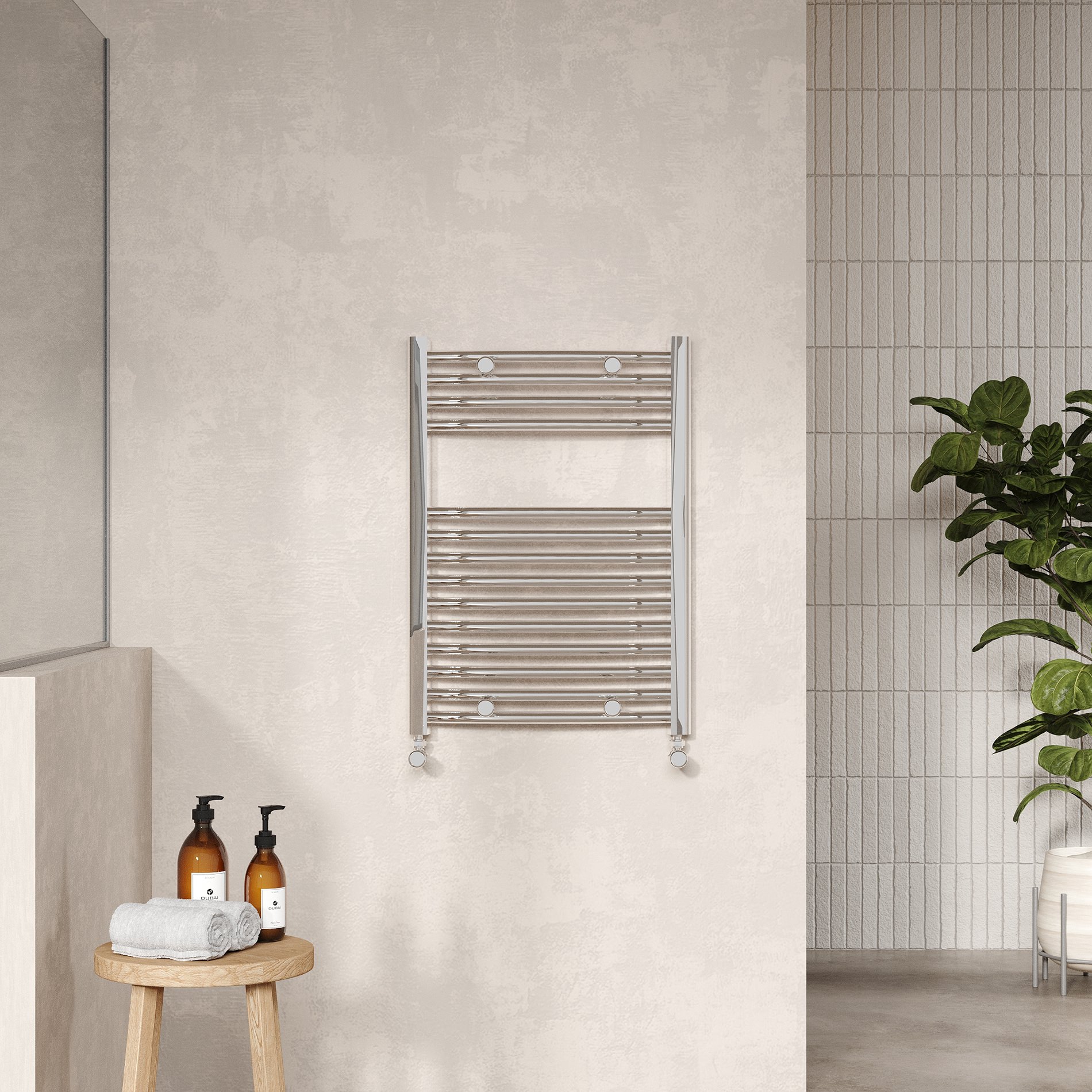

Nuie 500mm Wide Curved Heated Towel Rail

Nuie Logo
More Variations Available
Overall Rating: Stars Rating 1 out of 1 customers rated 20%
Rate This:
MFC Code : MTY102
Product Code : 22902
Delivery: £34.95
£45.20
RRP : £113.00
SELECT FINISH Step 1

SELECT Height Step 2

SELECT Summer Heating Elements Step 3

SELECT Radiator Hook Step 4


qty :

Check Availability 5-7 Working Days Apprx

About This Product

  • Former Known as Premier Curved Heated Towel Rail - MTY102
  • Choice of different finish: Anthracite and Chrome - [See Option]
  • Available in different height: 700mm, 1100mm and 1150mm - [See Option]
  • Material: Steel
  • Width: 500mm (50cm)
  • Luxury heated ladder rail
  • It comes complete with Brackets and fixing screws
  • Suitable for use with heating elements
  • All tappings are 1/2 inch BSP
  • CE Certified
  • Image shown is for illustration purpose only
  • Valves and elements are not included
  • For Details on Towel rail, refer to the chart at the PRODUCT VARIATIONS INFO & MFC CODE tab below
  • Download Data Sheet and Fitting Instruction PDF File from the Technical Info Section
  • After installing, when refilling the system, it is recommended that a suitable inhibitor is used
  • We recommend pipework is not installed until receipt of radiator or heated towel rail
  • Guarantee: Five years from Nuie against manufacturing defects.
  • Available Optional Products:
  • Compatible Valves
  • Electric Element
  • Radiator Hook.

Information Breakdown

Colour Anthracite
Warranty/Guarantee 5 Years
Theme Modern
Material Steel
Width 500
Height 700
Orientation Vertical
BTU Output 30°C - 560 | 50°C 1051| 60°C - 1331
Watts 30°C - 164 | 50°C - 308 | 60°C - 386
Tapping / Pipe Centres 450
Valves Included Sold Separately
Fuel Type Central Heating | Electric
Floor to Centre of Inlet 65
Tube Diameter 22
Heating Element Included Sold Separately
Element Type Standard
Brackets Included Yes
Installation Type Wall Mounted

Technical Info


PRODUCT VARIATIONS INFO & MFC CODE
  • Specifications For Curved Towel Rail
    Height Projection Finish BTU At 30 Deg.C BTU At 50 Deg.C BTU At 60 Deg.C Watts At 30 Deg.C Watts At 50 Deg.C Watts At 60 Deg.C Pipe Centres Number Of Tube Heat Settings Packaging Volume (L) MFC
    700mm 100mm Anthracite 560 1051 1331 164 308 386 450mm 13 1 23 MTY102
    1150mm 70mm Anthracite 894 1689 2139 262 495 622 450mm 21 1 37 MTY104
    - - - - - - - - - - - - - -
    700mm 90mm Chrome 710 366 899 208 107 258 450mm 14 1 - HK385
    1100mm - Chrome 1126 581 1426 330 170 410 450mm - - - HK386
