Hudson Reed Elgin 550 x 1080mm Designer Radiator small Image 4

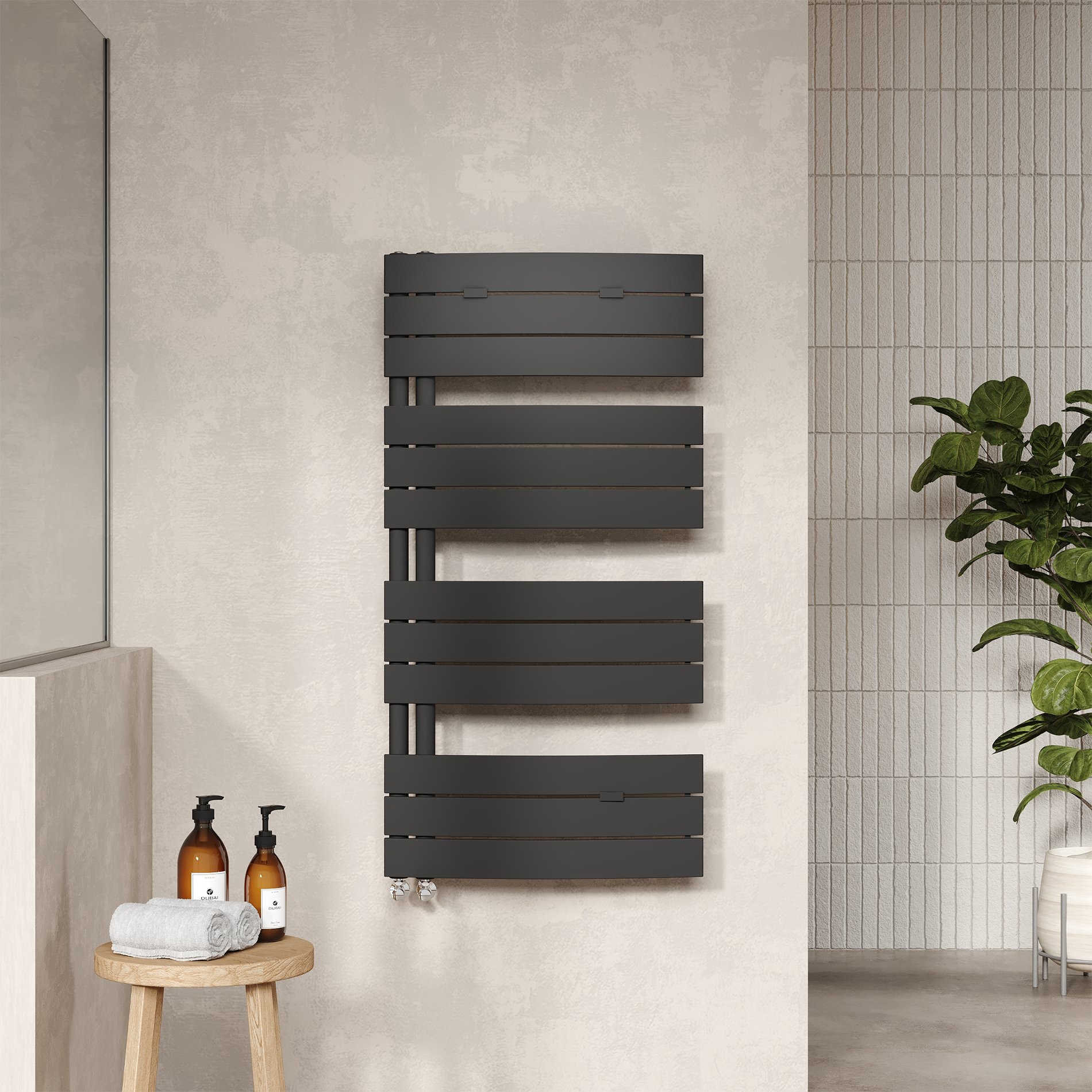

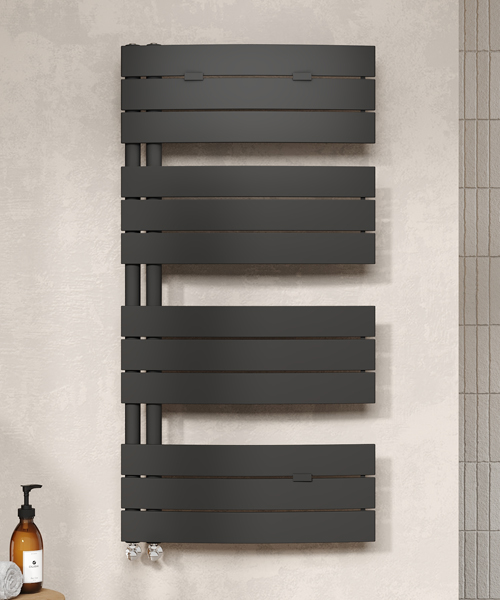

Hudson Reed Elgin 550 x 1080mm Designer Radiator

Additional image for 29805 hudsonreed - HLA36

Hudson Reed Elgin 550 x 1080mm Designer Radiator

Name: Hudson Reed Elgin 550 x 1080mm Designer Radiator
Brand: Hudson Reed
SKU: HLA36
Price: 251.55 GBP
Availability: InStock

Finish Available: Anthracite / Chrome

No Rating

Write a Review

Rate This:

MFC Code : HLA36

Product Code : 29805

Delivery: £34.95

£251.55

RRP : £645.00

Finishes Available

OP-146277 - Anthracite

qty :

Choice of finishes: Anthracite and chrome - [Optional]
Dimensions: Width 550mm (55cm) x Height 1080mm (108cm)
Material: Steel

Read More About the Product

Hudson Reed Heating Element

Excellent Heat output with an attractive Chrome finish and 12 month of guarantee. Please Note: Image Shown is for illustration purpose only.

None
OP-146147 - 150 Watt Chrome Heating Element - HL311 + £40.23 [ View Image ]
OP-146148 - 300 Watt Chrome Heating Element - HL312 + £42.43 [ View Image ]
OP-146149 - 600 Watt Chrome Heating Element - HL314 + £48.08 [ View Image ]
OP-146152 - 300 Watts Chrome Thermostatic Heating Element With Booster Function - HL501 + £95.15 [ View Image ]
OP-146153 - 600 Watts Chrome Thermostatic Heating Element With Booster Function - HL502 + £95.15 [ View Image ]

About This Product

Choice of finishes: Anthracite and chrome - [Optional]
Dimensions: Width 550mm (55cm) x Height 1080mm (108cm)
Material: Steel
Installation type: Wall mounted
Supplied with fixing screws
Pipe center for valves : 50mm (5cm)
Number Of Sections/Panels: 12
Number of Heat setting: 1
Type of heat: water
Comes with a 1/2 inch BSP
It is recommended that the new installed radiator is refiled with a suitable inhibitor
Valves and Heating elements are not included
For fitting instruction download PDF from Technical tab
Refer technical drawing for complete dimensions details
Guarantee: 5 years from Hudson Reed against manufacturing defects.
Optional Products:
Compatible Valve
Heating element
Specifications For Anthracite Finish:
RAL NO: 7016
Heat Output at 60°C: BTU/hr 2122 and Watts 622
Heat Output at 50°C: BTU/hr 1706 and Watts 500
Heat Output at 30°C: BTU/hr 864 and Watts 253
Projection from the wall: 50mm (5cm)
Specifications For Chrome Finish:
Heat Output at 60°C: BTU/hr 1453 and Watts 410
Heat Output at 50°C: BTU/hr 1147 and Watts 336
Heat Output at 30°C: BTU/hr 581 and Watts 170
Projection from the wall: 110mm (11cm).

Note: Hudson Reed recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.

Information Breakdown

Colour	Anthracite
Warranty/Guarantee	5 Years
Width	550
Projection (Depth)	50
Orientation	Vertical
BTU Output	@ 60°C 2122, @ 50°C 1706/hr And @ 30°C 864/h
Watts	@ 60°C 622, @ 50°C 500 And And @ 30°C 253
Tapping / Pipe Centres	50
Valves Included	Sold Separately
Design	Modern
Installation Type	Wall Mounted

Compatible Valves
